The Heatmap feature on DAHUA NVRs is a powerful analytics tool that provides a visual representation of activity within a surveillance area. It helps users identify high-traffic areas, unusual movements, and can be instrumental in optimizing security measures. This blog post will guide you through setting up the Heatmap feature on your DAHUA NVR, enabling you to harness the full potential of your surveillance system.
Why Use a Heatmap?
- Security Optimization: Heatmaps help in identifying areas that require additional security measures.
- Traffic Flow Analysis: Useful for businesses to understand customer movement patterns.
- Resource Allocation: Helps in making informed decisions about staff and asset placement.
Prerequisites:
- A DAHUA NVR with Heatmap capability.
- Dahua cameras with Intelligent Video Surveillance (IVS) features.
- Appropriate firmware and software updates installed.
Step by Step Instructions for Setting Up Heatmap:
Step 1: Access NVR's Main Menu
- Power on your DAHUA NVR and wait for it to boot up.
- Navigate to the main menu using your connected monitor and mouse.
Step 2: Enter the Configuration Mode
- Look for the "Configuration" or "Settings" option in the main menu and select it.
Step 3: Select Video Analytics
- Within the settings, find the "Video Analytics" or "Smart Features" section.

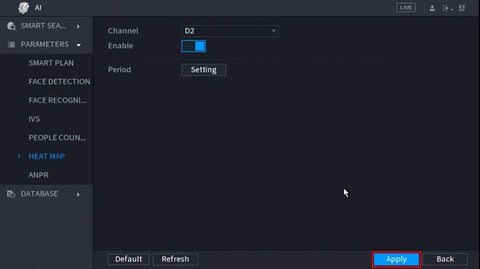

Step 4: Enable Heatmap
- Choose the Heatmap option and enable it. Some systems may require you to configure specific settings for the Heatmap, such as sensitivity and time frames.
Step 5: Define the Analytic Area
- Using the camera's live view, define the area you want to analyze. This could be done by drawing a region of interest (ROI) over the area you want the Heatmap to track.
Step 6: Configure Scheduling (Optional)
- If you only need the Heatmap to run at certain times, configure a schedule for its operation.
Step 7: Save and Apply Settings
- Once your settings are configured, save and apply them. The NVR will begin processing the video feed to generate the Heatmap.
Step 8: Review the Heatmap
- Return to the live view or a dedicated Heatmap view to see the visual representation of activity in the defined area.
Step 9: Adjust Settings as Needed
- Based on the initial results, you might need to adjust the settings for greater accuracy.
The Heatmap feature on DAHUA NVRs offers a visual and intuitive way to analyze movement and activity within a surveillance area. By following these steps, you can set up and customize the Heatmap to suit your specific monitoring needs. Whether you're looking to enhance security, analyze traffic patterns, or optimize business operations, the Heatmap is a valuable addition to your surveillance toolkit.
