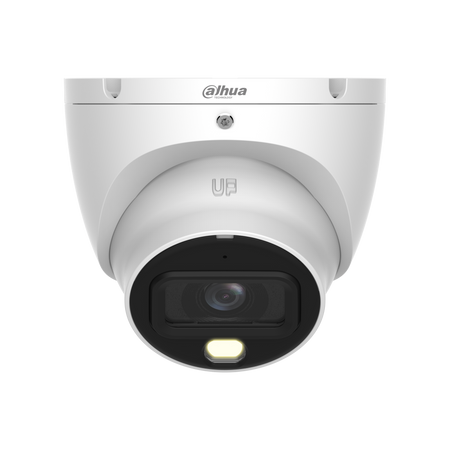

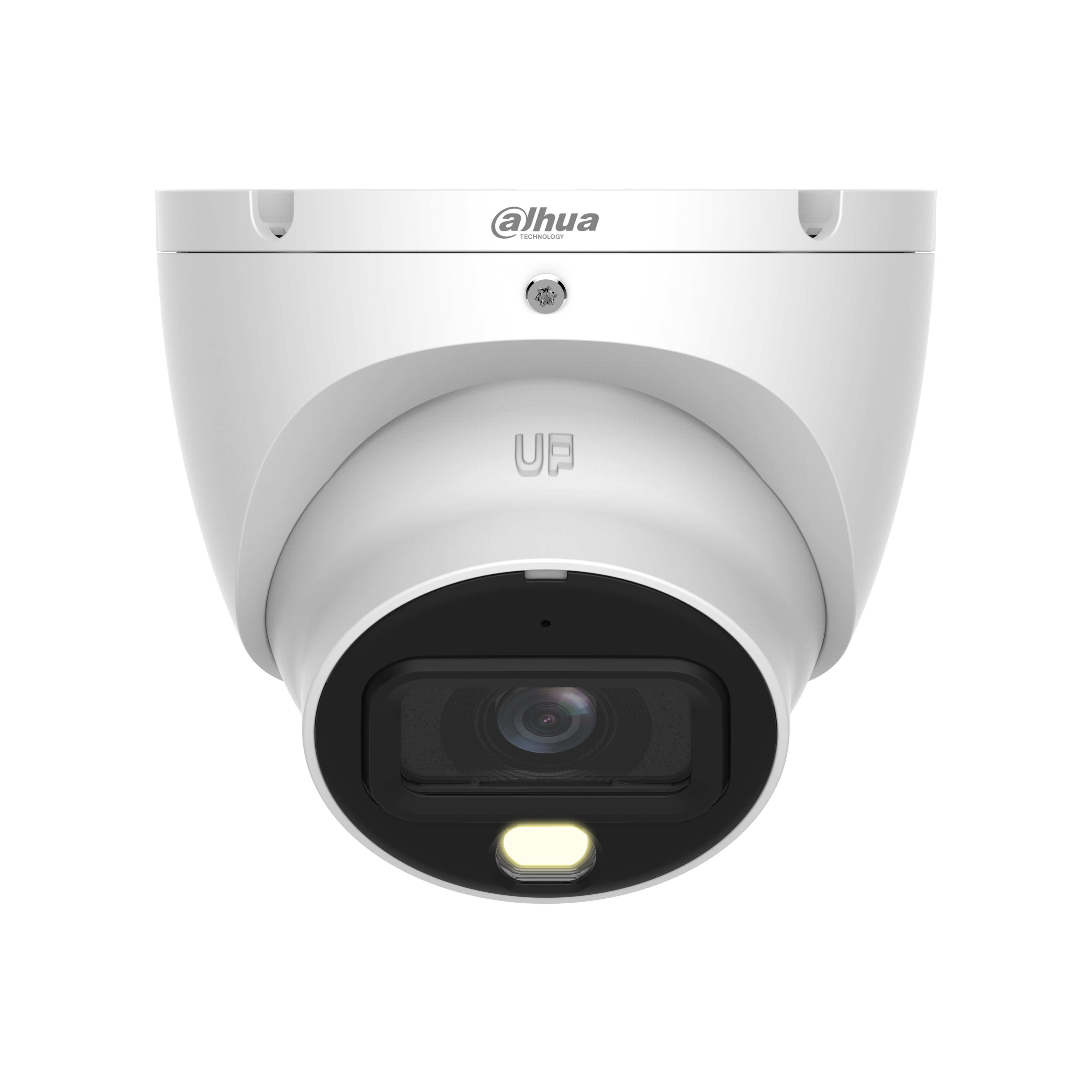

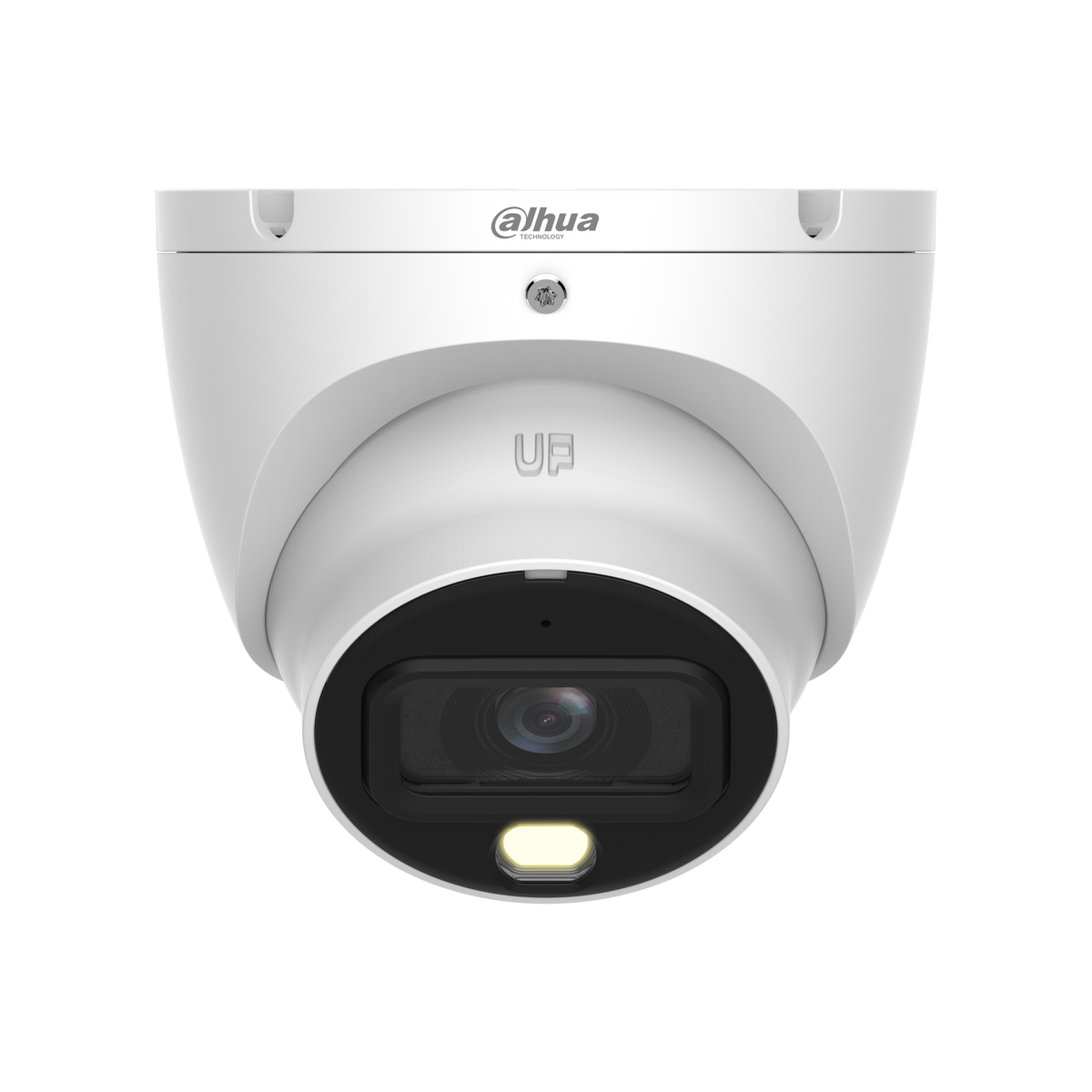

DAHUA HAC-HDW2509TLM-A-LED 5MP Full-color HDCVI Eyeball Camera

In stock
SKU: HAC-HDW2509TLM-A-LED
Regular price $1,000,000.00

Estimated delivery date: 2024-04-02

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



HAC-HDW2509TLM-A-LED

5MP Full-color HDCVI Eyeball Camera

> Max 25 fps@5MP (16:9 video output)
> 120 dB true WDR, 3D NR
> 24/7 color imaging
> 20 m illumination distance
> Super Adapt
> Built-in mic
> 3.6 mm fixed lens (2.8 mm optional)
> CVI/CVBS/AHD/TVI switchable
> IP67, 12 VDC



Product Data

Camera

Image Sensor

5MP CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.0002 Lux/F1.0, 0 Lux warm light on

Illumination Distance

20 m (65.6 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

1 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 111°; V: 57°; D: 131°
3.6 mm: H: 88°; V: 46°; D: 104°

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 1.5 m (4.9 ft)
3.6 mm: 2.3 m (7.5 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66 m

(216.5 ft)

26.4 m

(86.6 ft)

13.2 m

(43.3 ft)

6.6 m

(21.7 ft)

3.6 mm

80 m

(262.5 ft)

32 m

(105 ft)

16 m

(52.5 ft)

8 m

(26.2 ft)

Video

Frame Rate

CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480);

BLC

BLC/HLC/WDR/HLC-Pro

WDR

120 dB

White Balance

Auto; Area white balance

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart Illumination

Yes

Defog

Electronic defog

Digital Zoom

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio Input

One channel built-in mic

Power

Power Supply

12V ±30% DC

Power Consumption

Max 4.4 W (12 VDC, warm light on)

Environment

Operating Temperature

–40 °C to +60° C (–40 °F to 140 °F); < 95% (non-condensation)

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

φ94 mm × 85.7 mm (φ3.7" × 3.37")

Net Weight

0.35 kg (0.77 lb)

Gross Weight

0.49 kg (1.08 lb)
