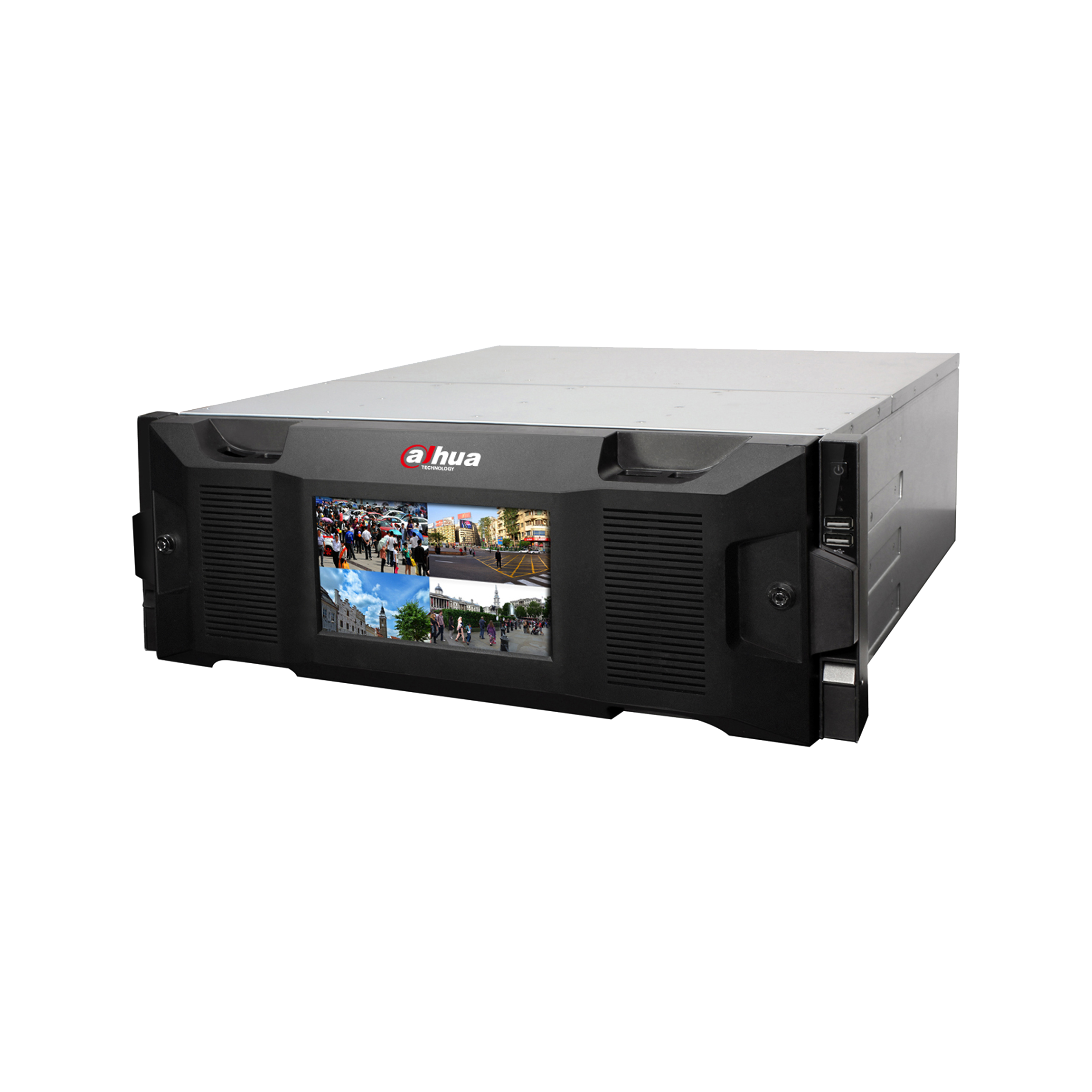

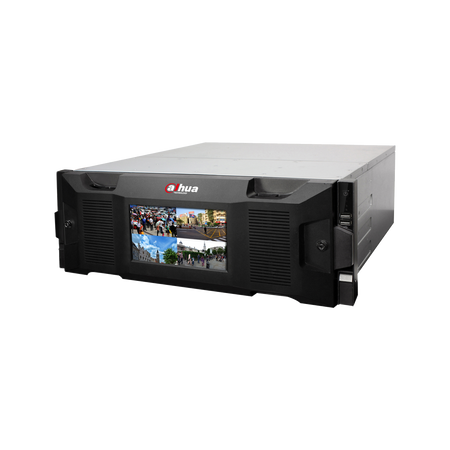

DAHUA IVSS7024DR-8T 4U 24HDD AI Network Video Recorder

In stock
SKU: IVSS7024DR-8T
Regular price $1,000,000.00

Estimated delivery date: 2024-05-15

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



IVSS7024DR-8T

4U 24HDD AI Network Video Recorder

> Intel quad-core processor
> Max 512Mbps incoming bandwidth
> 256 Channel IP video access
> Up to 32 Channel video stream face recognition
> Up to 80 Channel picture stream face recognition
> Regular/stranger mode
> Search by image
> Face database management
> Supports RAID 0/1/5/6/10
> SAS3.0 for storage extension
> 3HDMI/1VGA video output
> Redundant power



Product Data

System

Main Processor

Intel Quad-core Processor

Memory

16GB, up to 64GB

Operating System

Embedded LINUX

Artificial Intelligence

Face Recognition

32 channel video stream face recognition / 80 channel picture stream face recognition (with FD camera)

Performance

80 face pictrues /sec processing (modeling and comparing)

Metadata

Sturctured data of gender, age, expression, glasses, moustache, mouth mask information.

Stranger Mode

Detect strangers' faces(not in device's face database).Similarity threshold can be set manually.

Trigger Events

Buzzer, snapshot, recording, etc.

Search by Image

Up to 10 target face images search at same time. Support similarity threshold set for each target face image.

Database Management

Up to 20 face databases with 100,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.

Database Application

Each database can be applied to video channels independently.

Audio and Video

IP Camera Input

256 Channel

Two-way Talk

1 × 3.5mm audio input, 1 × 3.5mm audio output

Display

Interface

3 HDMI, 1VGA

Resolution

HDMI1/2/3 : 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720

VGA : 1920 × 1080 , 1280 × 1024,

1280 × 720

Decoding Capability

24-ch@1080P(30fps)

Multi-screen Display

Up to 36 split for each screen

OSD

Camera title, Time, Motion detection, Recording

Recording

Bandwidth

450Mbps

Compression

H.265/H.264/MJPEG/MPEG4

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, etc.

Record Mode

Schedule (Continuous, Event)

Video Detection and Alarm

Trigger Events

Recording, Snapshot, Buzzer, etc.

Video Detection

Motion Detection, MD Zones: 396 (22 × 18); Tampering

Alarm input

16 Channel

Relay Output

8 Channel

Playback and Backup

Sync Playback

Up to 16ch sync playback, 128Mbps playback bandwidth

Search Mode

Time /Date, Video Detection, Face and Exact Search (accurate to second)

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

AXIS, Panasonic, Sony, etc.

Network

Interface

4 RJ-45 Ports (10/100/1000Mbps)

Optional Interface

4 Giga Optical Fiber Interface

Network Port Mode

Independent Ethernet Ports, Load Balance, Fault-Tolerance, Link Aggregation

Network Function

HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search (Support IP camera, DVR, etc.), P2P

Interoperability

ONVIF 2.4, SDK

Storage

Internal HDD

24 SAS/SATA HDDs, Up to 10 TB capacity for each HDD, Independent HDD bracket, hot-swap

HDD Mode

Single, Raid 0/1/5/6/10(Enterprise-level HDDs are recommended), Support Global HDD Hot-spare

eSATA

1 eSATA Port (Please contact technical engineer to confirm the compatible device)

SAS

2 SAS3.0 Ports

Auxiliary Interface

Front Cover

Support Hot-swap, 7-inch HD LCD (1920 × 1080 , 1280 × 1024)

USB

4 USB Ports (2 USB 2.0 , 2 USB 3.0 )

RS232

1 Port, for PC Communication

RS485

1 Port

Electrical

Power Supply

AC100V ~ 240V, 50 ~ 60 Hz, Hot-swap, Redundant

Power Consumption

<130W (Without HDD)

Fan

Dual-ball bearing fans, Hot-swap

Environmental

Operating Conditions

0°C ~ +45°C (+32°F ~ +113°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

4U, 482.6mm x 543.4mm x 175mm (19" x 21.39" x 6.89")

Net Weight

20kg (44.09 lb) (without HDD)

Installation

Standard 19-inch Rack-mounted

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL 60950-1
