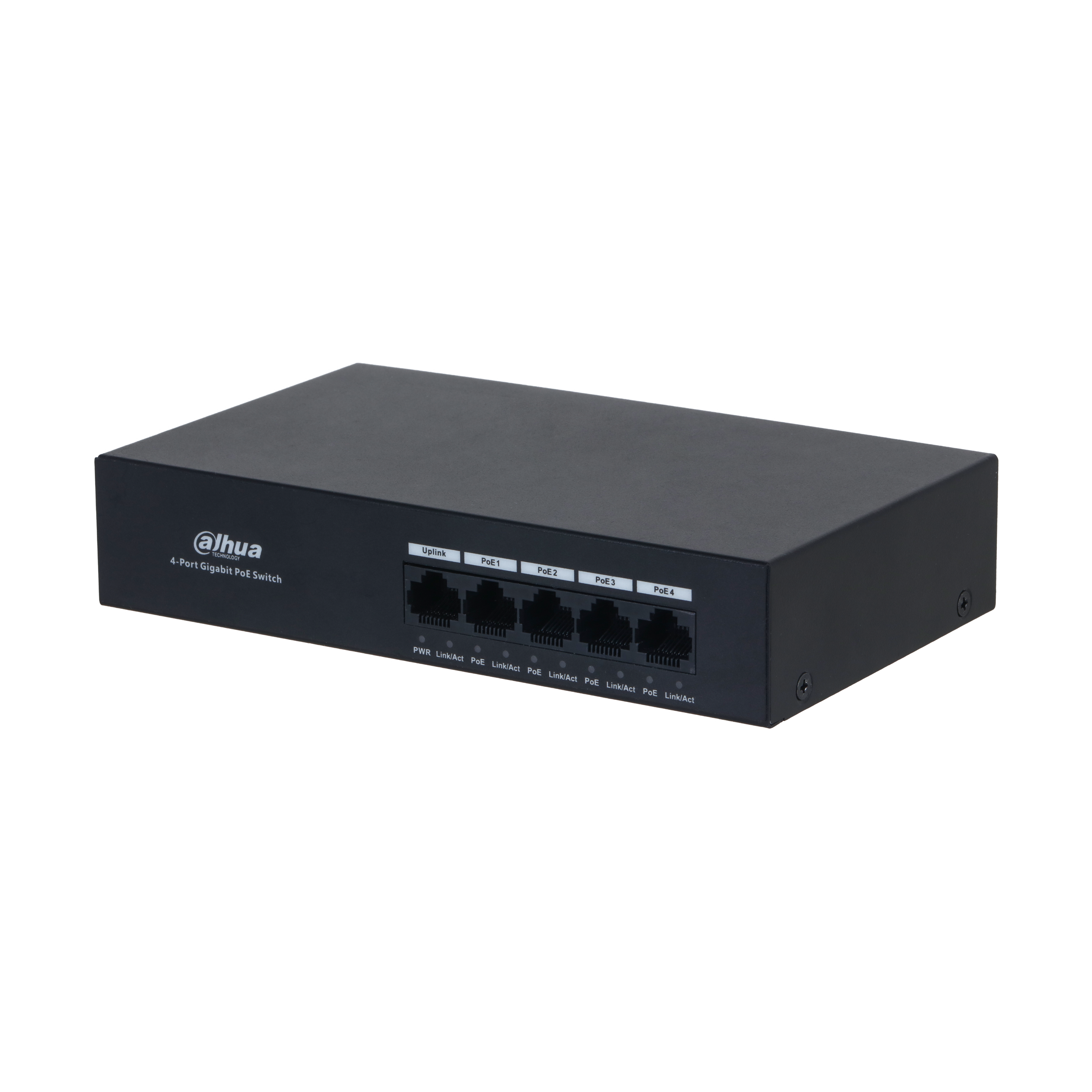

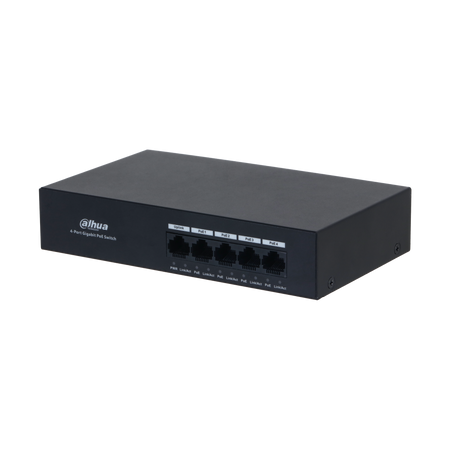

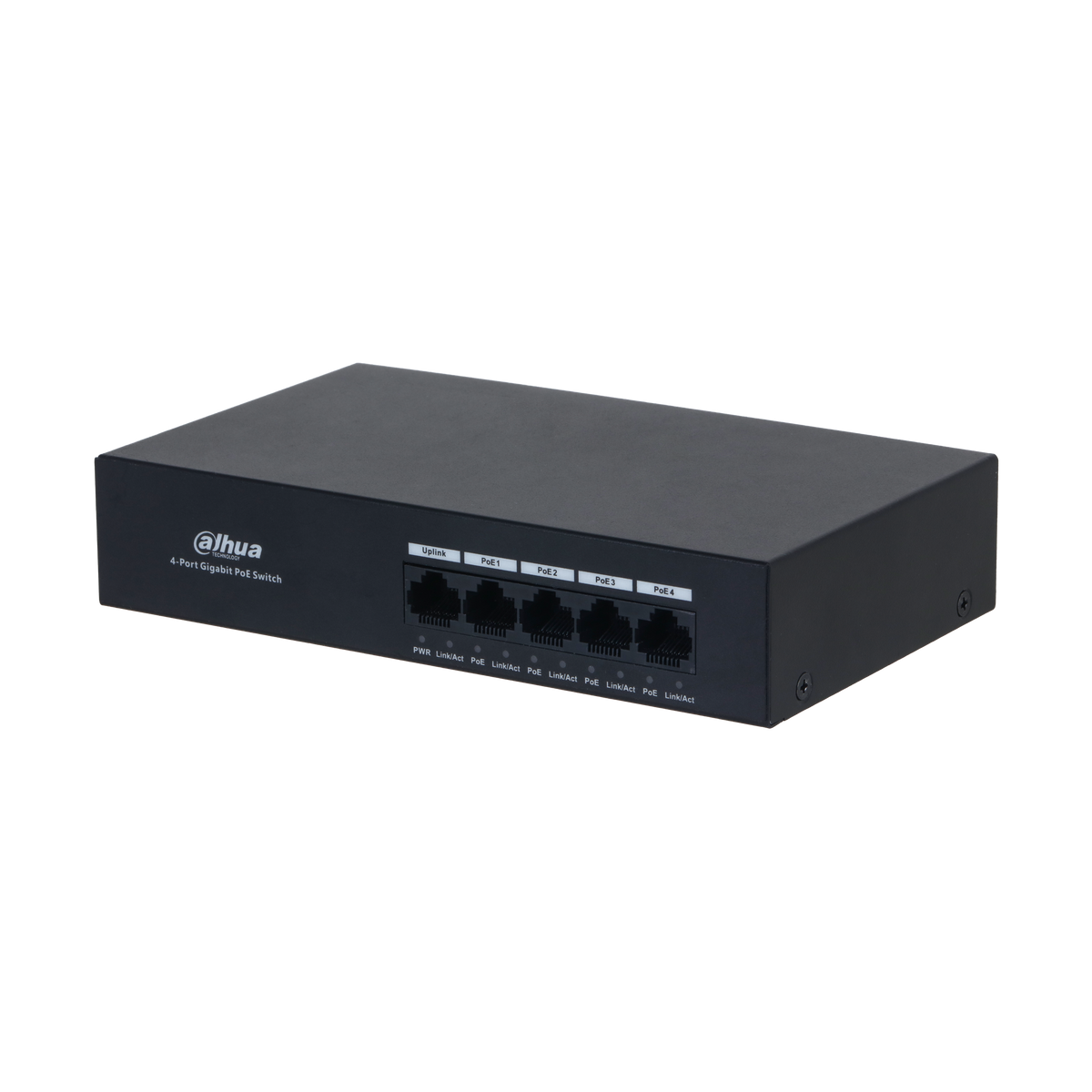

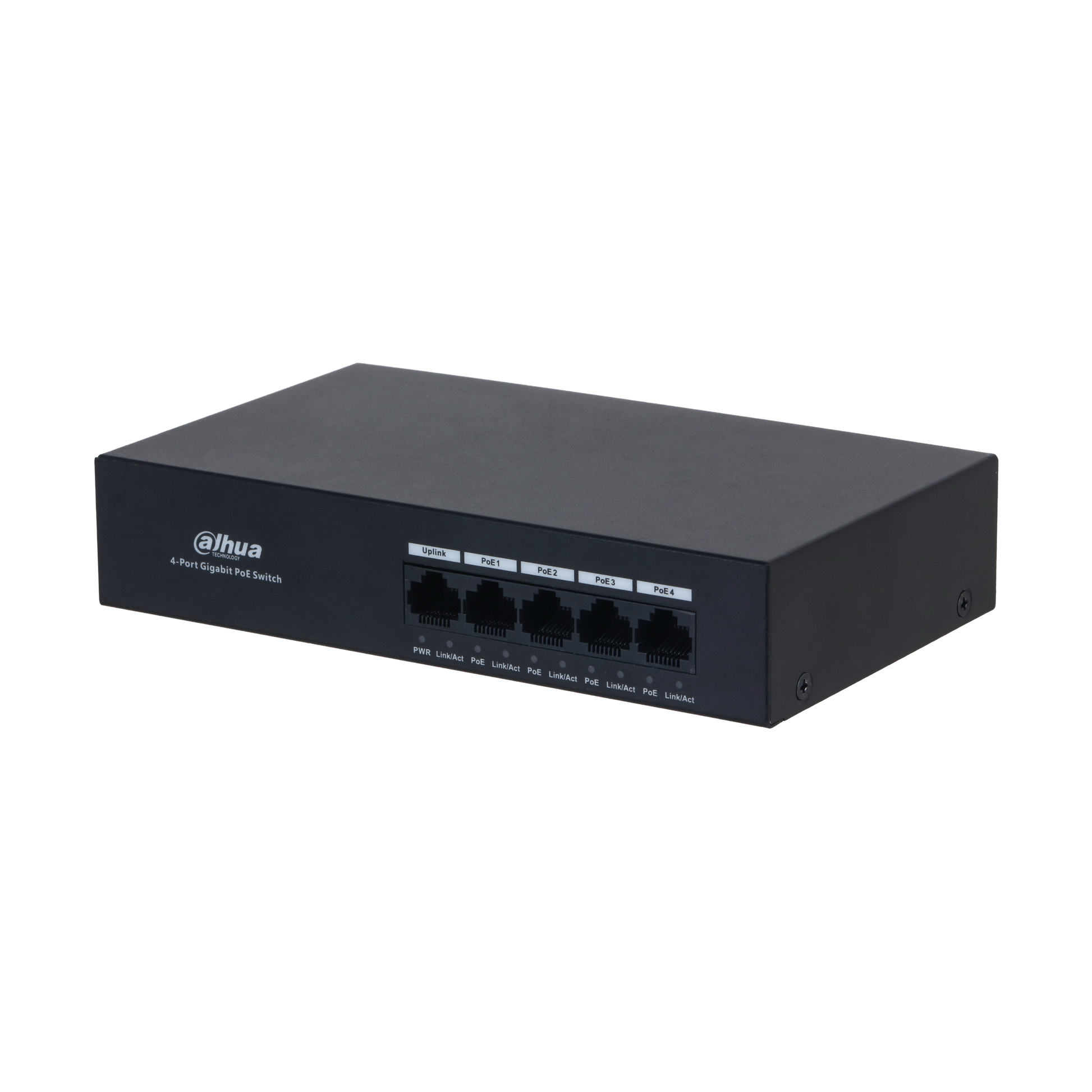

DAHUA PFS3005-4GT-36 5-Port Economical Gigabit Switch with 4-Port PoE
DAHUA PFS3005-4GT-36 5-Port Economical Gigabit Switch with 4-Port PoE
DAHUA

DAHUA PFS3005-4GT-36 5-Port Economical Gigabit Switch with 4-Port PoE

In stock
SKU: PFS3005-4GT-36
$1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



PFS3005-4GT-36

5-Port Economical Gigabit Switch with 4-Port PoE

> Unmanaged gigabit PoE switch.
> Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x standards.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
> Easy to install, and plug and play.
> Meets the IEEE 802.3af and IEEE802.3at power supply standards.



Product Data

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

4

Optical Port

0

Ethernet Port Speed

10/100/1000 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Description of Function Slots

Port 1–4: 4 × RJ–45 10/100/1000 Mbps;
Port 5: 1 × RJ–45 10/100/1000 Mbps

Power Supply

Built-in power supply: 100–240 VAC; 50/60 Hz; 0.67 A (maximum)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: 1.8 W
Full load: 36 W

Performance

Layer

Layer 2

Management Type

No

Smart Managed Switch

No

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.44 Mpps

Packet Buffer Size

1 Mbit

Jumbo Frame

9,216 Byte

MAC Table Size

2K Byte

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab

Feature

PoE Protocol

IEEE 802.3af; IEEE 802.3at

PoE Power

Port 1–4 ≤30 W;
Total ≤36 W

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)

ePoE

No

Long Distance PoE Transmission

No

General

Statics Protection

Air discharge: 8 kV;
Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV;
Differential mode: 0.5 kV

Net Weight

0.464 kg (1.02 lb)

Gross Weight

0.964 kg (2.13 lb)

Product Dimensions

170 mm × 100 mm × 35 mm (6.69" × 3.94" × 1.38") (L × W × H)

Packaging Dimensions

265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H)

Casing Material

Iron

Installation

Desktop mount

Certifications

CE; FCC
