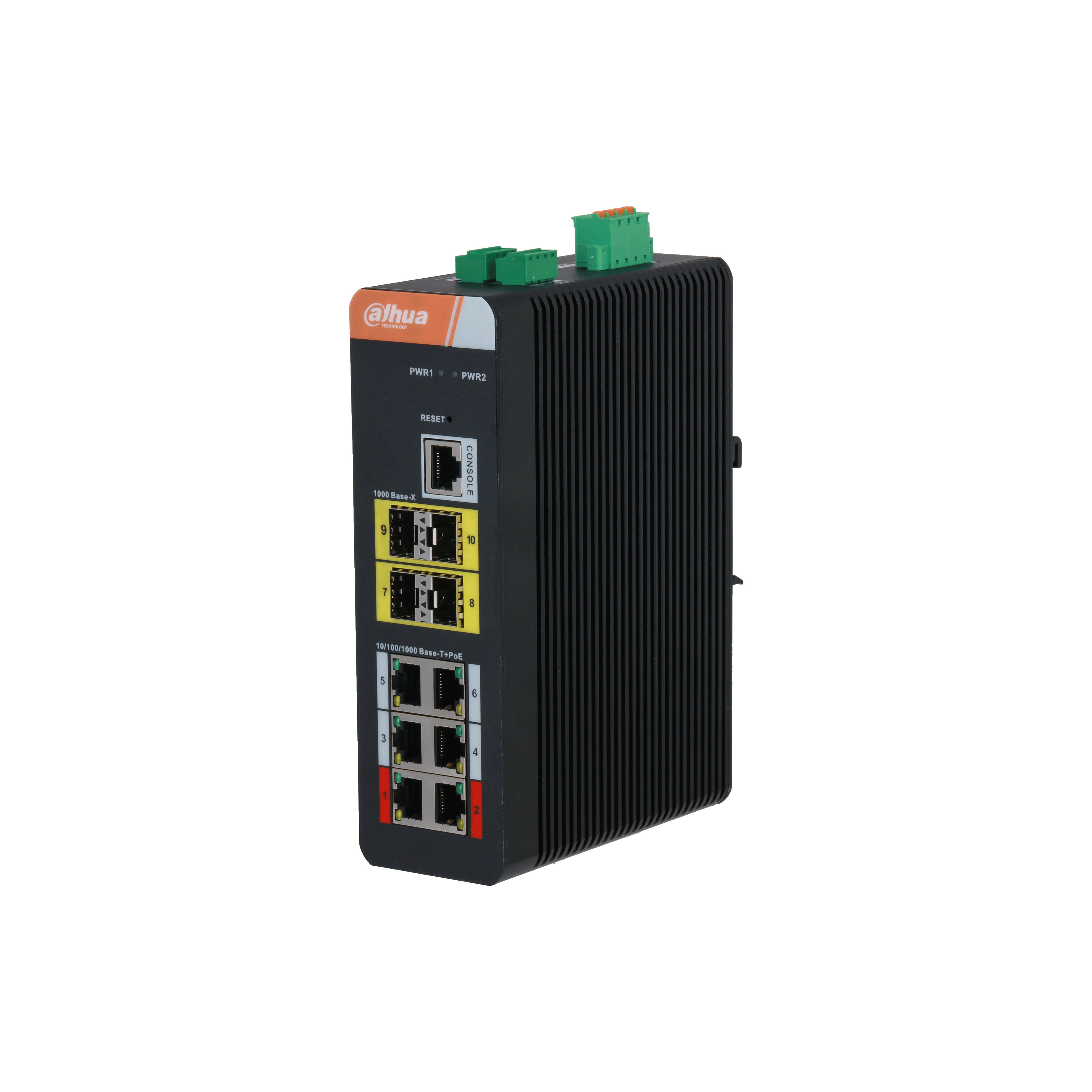

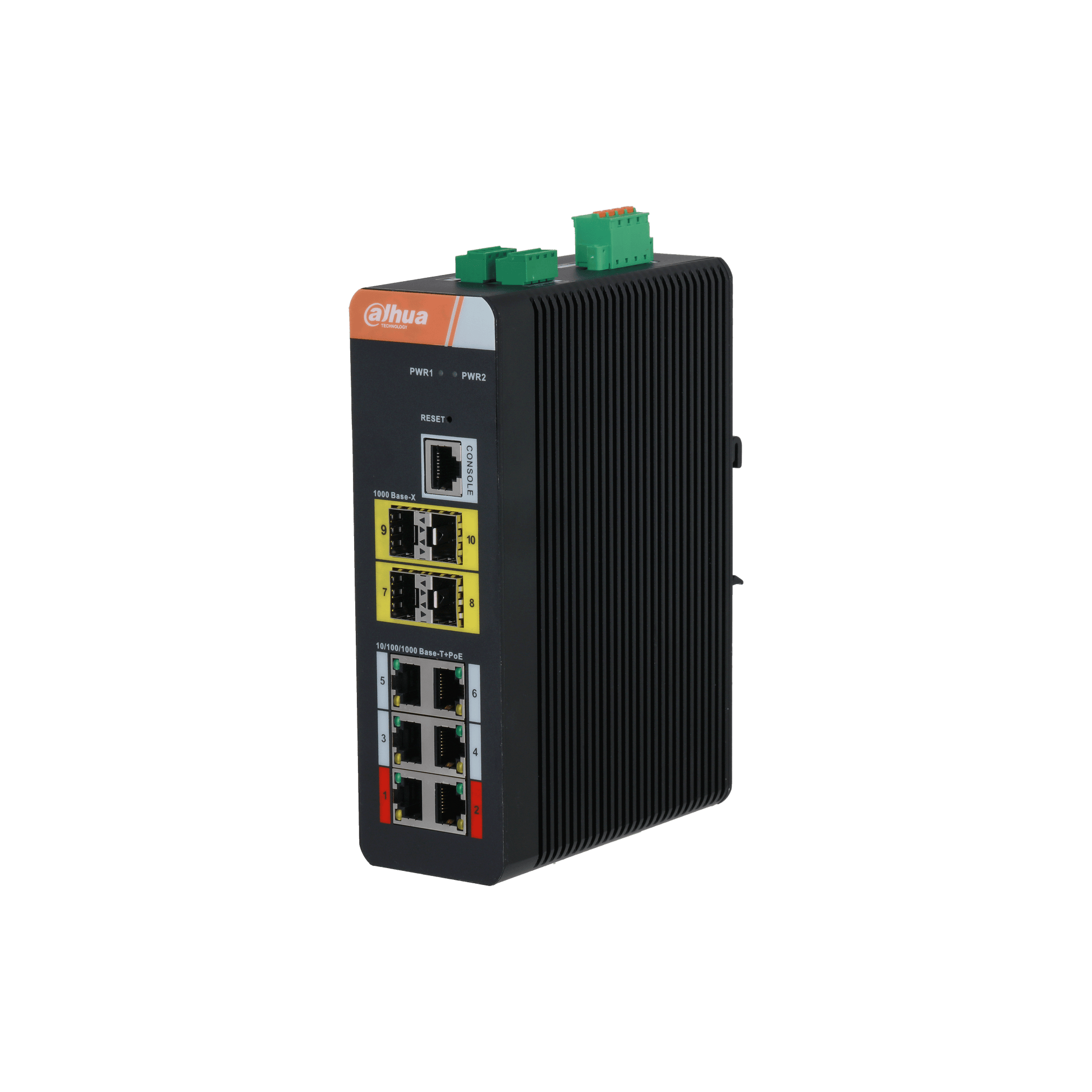

DAHUA PFS4410-6GT-DP 10-Port Gigabit Industrial Swicth with 6-Port Gigabit PoE (Managed)
DAHUA PFS4410-6GT-DP 10-Port Gigabit Industrial Swicth with 6-Port Gigabit PoE (Managed)
DAHUA

DAHUA PFS4410-6GT-DP 10-Port Gigabit Industrial Swicth with 6-Port Gigabit PoE (Managed)

In stock
SKU: PFS4410-6GT-DP
$1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



PFS4410-6GT-DP

* The parameters and datasheets below can only be applied to V2.0 (version 2.0) 、

> All-gigabit port design.

> Supports IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt (red port) standards.

> 250 m long-distance PoE transmission (10 Mbps).

> PoE Watchdog.

> Supports STP, RSTP, and MSTP.

> IEEE802.1Q-based VLAN configuration.

> Manual link aggregation and static LACP.

> Desktop mount and DIN-rail mount.



Product Data

Hardware

Included Power Adapter

No

PoE

Yes

Ethernet Port

6

Optical Port

4

Ethernet Port Speed

10 Mbps/100 Mbps/1000 Mbps

Optical Port Speed

1000 Mbps

Console Port

1

Power Supply Mode

48 V–57 V DC

Operating Temperature

–40 °C to +75°C (–40 °F to +167 °F)

Operating Humidity

10%–90% (RH)

Power Consumption

Idling: ≤ 6 W
Full load: 120 W

Performance

Layer

L2

Managed

Yes

Switching Capacity

28 Gbps

Packet Forwarding Rate

14.88 Mpps

Packet Buffer Size

4 Mbits

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad

MAC Table Size

8K

Function

PoE Protocol

IEEE 802.3af (PoE); IEEE 802.3at (PoE+); Hi-PoE; IEEE 802.3bt

PoE Power

Port 1-2: ≤ 90 W

Port 3-6: ≤ 30 W

Total: ≤ 120 W

PoE Power Consumption Management

Power consumption management
PoE power on and off
Power off when PoE power is overloaded
Green PoE

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE Transmission

Yes

Jumbo Frame

9,000 bytes

Spanning Tree Protocol

ERPS

VLAN Function

802.1Q

Flow Control

Full-duplex flow control (back pressure)

Full-duplex flow control (PAUSE)

Link Aggregation

Static link aggregation; LACP

Port Mirroring

Multiple-to-one port mirroring

Multicast

Yes

DHCP Function

DHCP client
DHCP-Server
DHCP-Snooping

Security

User management

HTTP

SSH

SNMP V1/V2C/V3

RMON

ACL

IP source guard

Port/VLAN-based ARP check

Static ARP check

Dynamic ARP check

802.1x

Loop protection

QoS

CoS/DPL/PCP/DEI-based QoS

8 output queue for each port

Port shaping

Port tag remarking

DSCP-based QoS

Maintenance

Uploading/downloading configuration files
Online upgrade
System logs

Device Management

Web (HTTP and HTTPS protocol); Telnet; SNMP; CLI

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 6 kV
Differential mode: 4 kV

Net Weight

1.25 kg (2.8 lb)

Gross Weight

1.52 kg (3.4 lb)

Product Dimensions

125 mm × 53.5mm × 175mm (4.9 " × 2.1 " × 6.9") (L × W × H)

Packing Dimensions

254 mm × 287 mm × 101 mm (10.0 " × 11.3 " × 4.0 ")

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10Ω/100m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30W

100

25.5

100

150

25.5

10

200

25.5

10

250

25.5

10

Note: Data from this table was collected by Dahua test lab and is for reference only . If there is inconsistency between field application and the table, the field result shall prevail.
