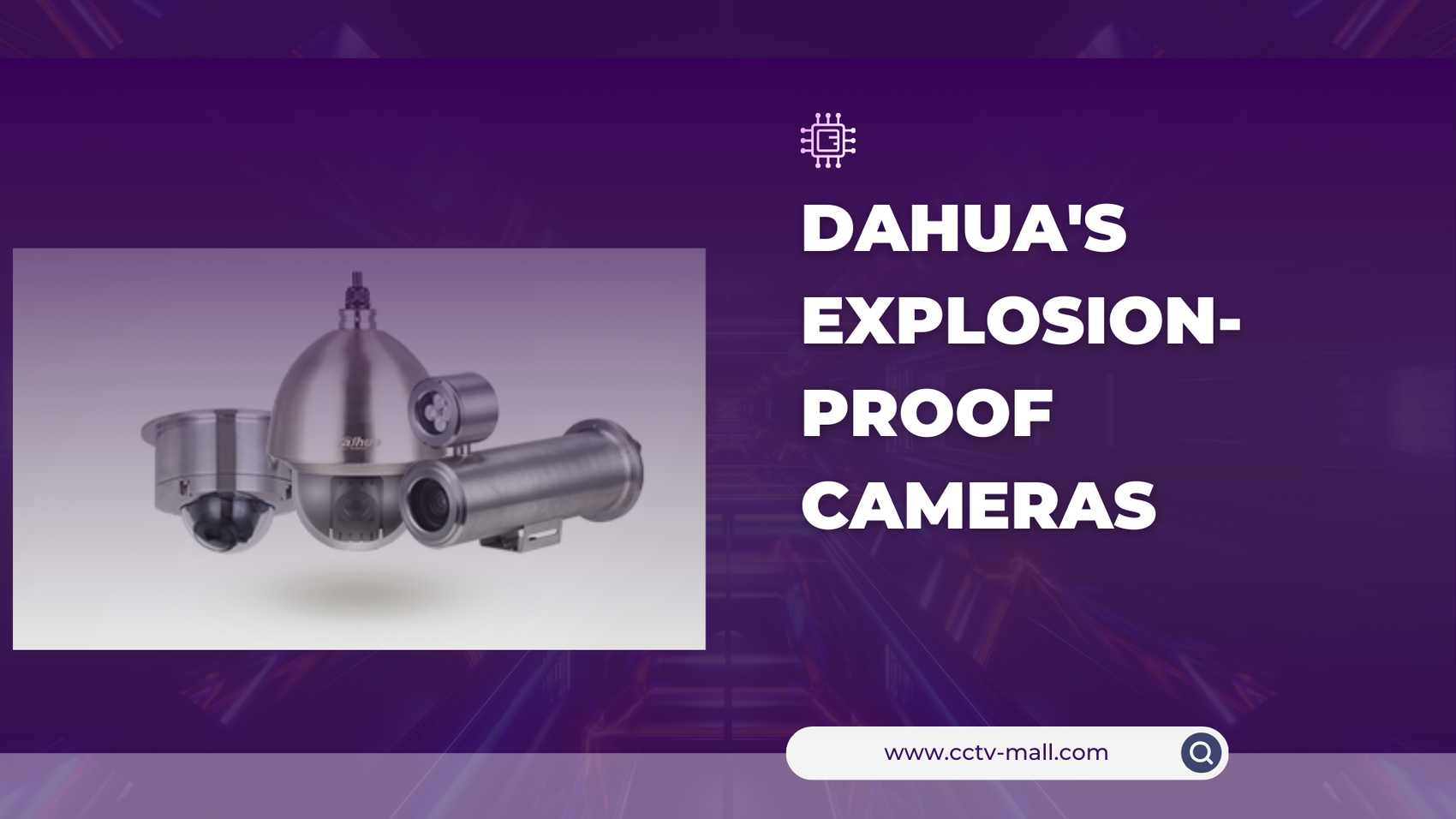

DAHUA's Explosion-Proof Cameras: Resilience in Hazardous Environments

DAHUA's Explosion-Proof Cameras: Resilience in Hazardous Environments

The demands of monitoring in extreme environments are unyielding, with typical surveillance equipment often succumbing to short lifecycles, high failure rates, and the need for frequent replacements. DAHUA's all-environment series of explosion-proof cameras is designed to transcend these limitations, offering robust surveillance solutions for hazardous environments where the stakes are high.

The Challenge of Extreme Environments: Standard DAHUA surveillance cameras often struggle to perform in environments prone to explosions, where they can be exposed to volatile substances, extreme temperatures, and corrosive elements. These conditions necessitate a higher level of resilience and durability in monitoring equipment.

DAHUA SD8A840PA-HNF-SL 8MP 40× Anti-corrosion WizMind PTZ Camera

product-img

SD8A840PA-HNF-SL

8MP 40× Anti-corrosion WizMind PTZ Camera

> 1/1.8” 8Megapixel STARVIS™ CMOS.

> 40x optical zoom.

> Starlight technology.

> IR distance up to 500 m.

> Auto-tracking.

> Perimeter protection.

> Face detection.

> Face recognition.

> Metadata.

> IP67.

> Anti-corrosion coating.

DAHUA SD5A225GB-HNR-SL 2MP 25x Starlight IR WizSense Network PTZ Camera

product-img

SD5A225GB-HNR-SL

2MP 25x Starlight IR WizSense Network PTZ Camera

> 1/2.8" 2Megapixel STARVIS™ CMOS.

> Powerful 25x optical zoom.

> Max. 50/60 fps@2M.

> IR distance up to 150 m.

> Auto Tracking 3.0.

> Face Detection.

> SMD 4.0.

> PoE+.

> IP67, IK10.

> Anti corrosion coating.

DAHUA SDZW2000T-SL 2MP Anti-corrosion IR Network Camera

product-img

SDZW2000T-SL

2MP Anti-corrosion IR Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS > Starlight technology > H.265 Encoding > Max. 50/60fps@1080P > IVS > IP68, IK10, NEMA 4X

> Material: 316L Stainless Steel

DAHUA SDZW2030U-SL 2MP 30x Anti-corrosion IR Network Camera

product-img

SDZW2030U-SL

2MP 30x Anti-corrosion IR Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS > Powerful 30x optical zoom > Starlight technology > H.265 Encoding > Max. 50/60fps@1080P > IVS > IP68 > Material: 316L Stainless steel

DAHUA SD60230U-HNI-SL 2MP 30x Anti-corrosion PTZ Network Camera

product-img

SD60230U-HNI-SL

2MP 30x Anti-corrosion PTZ Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS > Powerful 30x optical zoom > Starlight technology > H.265 Encoding > Max. 50/60fps@1080P > Auto-tracking and IVS > Support PoE+ > IP68, IK10, NEMA 4X > Material: 316L Stainless steel

DAHUA TPC-AEPT8441-T Thermal Anti-Explosion Hybrid PTZ Camera

product-img

TPC-AEPT8441-T

Thermal Anti-Explosion Hybrid PTZ Camera

> Vanadium oxide uncooled focal plane detector. > Supports up to 18 color palettes. > 4Megapixel progressive scan CMOS. > High-precision non-contact temperature measurement. > Advanced Image Processing. > Explosion-proof certification: II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db.

DAHUA TPC-AEPT8641-T Thermal Anti-Explosion Hybrid PTZ Camera

product-img

TPC-AEPT8641-T

Thermal Anti-Explosion Hybrid PTZ Camera

> Vanadium oxide uncooled focal plane detector. > Supports up to 18 color palettes. > 4Megapixel progressive scan CMOS. > High-precision non-contact temperature measurement. > Advanced Image Processing. > Explosion-proof certification: II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db.

DAHUA ECA3A1804-HNR-XB 8MP Explosion-proof IR Bullet WizMind Network Camera

product-img

ECA3A1804-HNR-XB

8MP Explosion-proof IR Bullet WizMind Network Camera

*The parameters and datasheets below can only be applied to the latest generation of products released in 2023.

> 8-MP 1/2.8" CMOS image sensor, low illuminance, high image definition.

> Outputs max. 8 MP (3840 × 2160) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 50 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> With deep learning algorithm, it supports: face detection, perimeter protection, people counting, heat map, SMD4.0.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 512 G Micro SD card.

> 12 VDC/PoE power supply, easy for installation.

> 304/316L stainless steel casing, 2 m cable.

IP68 protection.

DAHUA ECA3A1404-HNR-XB 4MP Explosion Proof IR Bullet WizMind Network Camera

product-img

ECA3A1404-HNR-XB

4MP Explosion Proof IR Bullet WizMind Network Camera

*The parameters and datasheets below can only be applied to the latest generation of products released in 2023.

> 4-MP 1/2.8" CMOS image sensor, low illuminance, high image definition.

> Outputs max. 4 MP (2688 × 1520) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 50 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> With deep learning algorithm, it supports: face detection, perimeter protection, people counting, heat map, SMD4.0.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 512 G Micro SD card.

> 12 VDC/PoE power supply, easy for installation.

> 304/316L stainless steel casing, 2 m cable.

IP68 protection.

DAHUA TPC-AEBF5441-T Thermal Network Explosion-proof Hybrid Bullet Camera

product-img

TPC-AEBF5441-T

Thermal Network Explosion-proof Hybrid Bullet Camera

> Vanadium oxide uncooled focal plane detector. > Supports up to 18 color palettes. > 4Megapixel progressive scan CMOS. > High-precision non-contact temperature measurement. > Explosion-proof certification: II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db.

DAHUA TPC-AEBF5641-T Thermal Network Explosion-proof Hybrid Bullet Camera

product-img

TPC-AEBF5641-T

Thermal Network Explosion-proof Hybrid Bullet Camera

> Vanadium oxide uncooled focal plane detector. > Supports up to 18 color palettes. > 4Megapixel progressive scan CMOS. > High-precision non-contact temperature measurement. > Explosion-proof certification: II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db.

DAHUA TPC-AEBF5201-T Thermal Network Explosion-proof Bullet Camera

product-img

TPC-AEBF5201-T

Thermal Network Explosion-proof Bullet Camera

> Vanadium oxide uncooled focal plane detector. > Supports up to 18 color palettes. > High-precision non-contact temperature measurement. > Explosion-proof certification: II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db.

DAHUA IPC-HDEW8441R-Z 4MP Explosion Proof IR Dome WizMind Network Camera

product-img

IPC-HDEW8441R-Z

4MP Explosion Proof IR Dome WizMind Network Camera

* The parameters and datasheets below can only be applied to 8441-S2 series.

> 4-MP 1/3.0" CMOS image sensor, low illuminance, high image definition.

> Outputs max. 4 MP (2688 × 1520) @25/30 fps.

> Built-in IR LED, and the max. illumination distance is 40 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Supports the AFSA(Anti-flicker Self-adaption) function, which automatically eliminates flicker.

> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, face exposure, and face attributes.

> People counting: People counting in area, queue management, and entered/exited people counting; generating and exporting report (day/ month/year).

> Intelligent monitoring: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human). abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, and face detection.

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.

> 12 VDC/PoE power supply, easy for installation.

> IP68 and IK10 protection.

> Explosion-proof mark II 2 G Ex db IIC T6/T5 Gb; II 2 D Ex tb IIIC T80°C/ T100°C Db.

> 316 stainless steel casing, 2 m cable.

> ATEX and IECEx Certifacation.

> SMD 3.0.

DAHUA IPC-HDEW8441R-Z-S2 4MP Explosion Proof IR Dome WizMind Network Camera

product-img

IPC-HDEW8441R-Z-S2

4MP Explosion Proof IR Dome WizMind Network Camera

* The parameters and datasheets below can only be applied to 8441-S2 series.

> 4-MP 1/3.0" CMOS image sensor, low illuminance, high image definition.

> Outputs max. 4 MP (2688 × 1520) @25/30 fps.

> Built-in IR LED, and the max. illumination distance is 40 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Supports the AFSA(Anti-flicker Self-adaption) function, which automatically eliminates flicker.

> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, face exposure, and face attributes.

> People counting: People counting in area, queue management, and entered/exited people counting; generating and exporting report (day/ month/year).

> Intelligent monitoring: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human). abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, and face detection.

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.

> 12 VDC/PoE power supply, easy for installation.

> IP68 and IK10 protection.

> Explosion-proof mark II 2 G Ex db IIC T6/T5 Gb; II 2 D Ex tb IIIC T80°C/ T100°C Db.

> 316 stainless steel casing, 2 m cable.

> ATEX and IECEx Certifacation.

> SMD 3.0.

DAHUA IPC-HDEW8841R-Z 8MP Explosion Proof IR Dome WizMind Network Camera

product-img

IPC-HDEW8841R-Z

8MP Explosion Proof IR Dome WizMind Network Camera

* The parameters and datasheets below can only be applied to 8841-S2 series.

> 8-MP 1/2.8" CMOS image sensor, low illuminance, high image definition.

> Outputs max. 8 MP (3840 × 2160) @25/30 fps.

> Built-in IR LED, and the max. illumination distance is 40 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Supports the AFSA(Anti-flicker Self-adaption) function, which automatically eliminates flicker.

> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, face exposure, and face attributes.

> People counting: People counting in area, queue management, and entered/exited people counting; generating and exporting report (day/ month/year).

> Intelligent monitoring: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, and face detection.

> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.

> 12 VDC/PoE power supply, easy for installation.

> IP68 and IK10 protection.

> Explosion-proof mark II 2 G Ex db IIC T6/T5 Gb; II 2 D Ex tb IIIC T80°C/ T100°C Db.

> 316 stainless steel casing, 2 m cable.

> ATEX and IECEx Certifacation.

> SMD 3.0.

DAHUA ECA7B1231-HNP-XA-F 2MP 31x Starlight IR EXPLOSION-PROOF CAMERA

product-img

ECA7B1231-HNP-XA-F

2MP 31x Starlight IR EXPLOSION-PROOF CAMERA

> 1/1.8" 2Megapixel STARVIS™ CMOS

> 31× optical zoom.

> Starlight technology.

> Max. 25/30 fps@1080p

> IR distance up to 100 m.

> H.265 encoding.

> Perimeter protection.

> Face detection.

> Wiper.

> Optical Fiber.

> Support helmet detection and helmet color recognition.

DAHUA ECA2A1400-HN 4MP Starlight IR Explosion-proof Camera

product-img

ECA2A1400-HN

4MP Starlight IR Explosion-proof Camera

> 4-MP 1/2.8" CMOS. > Starlight technology. > Max.25/30 fps@1080p. > IR distance up to 30 m. > H.265 encoding. > 304 stainless steel housing. > IP68. ATEX and IECEx certification.

DAHUA ECA7A1425-HNR-XA-F 4MP 25x Starlight IR WizMind Explosion-proof Network Camera

product-img

ECA7A1425-HNR-XA-F

4MP 25x Starlight IR WizMind Explosion-proof Network Camera

> 1/1.8" 4Megapixel CMOS > 25x optical zoom (5.4 mm–135 mm) > Starlight technology > Max. 25/30fps@4MP > IR distance up to 100 m > Perimeter protection > Face detection > Smart Capture > SMD PLUS > Fiber port

DAHUA EPC245U-PTZ-IR 2MP 45x Explosion-proof IR Network Positioning System

product-img

EPC245U-PTZ-IR

2MP 45x Explosion-proof IR Network Positioning System

> 1/2.8” 2Megapixel STARVIS™ CMOS > Powerful 45x optical zoom > 316L stainless steel housing > Starlight technology > H.265/H.264 Triple-stream Encoding > Max. 50/60fps@1080P > IR distance up to 200m > IP68

DAHUA EPC245U-PTZ 2MP 45x Explosion-proof Network Positioning System

product-img

EPC245U-PTZ

2MP 45x Explosion-proof Network Positioning System

> 1/2.8” 2Megapixel STARVIS™ CMOS > Powerful 45x optical zoom > 316L stainless steel housing > Starlight technology > H.265/H.264 Triple-stream Encoding > Max. 50/60fps@1080P > IP68

DAHUA EPC230U-PTZ-IR 2MP 30x Explosion-proof IR Network Positioning System

product-img

EPC230U-PTZ-IR

2MP 30x Explosion-proof IR Network Positioning System

> 1/2.8” 2Megapixel STARVIS™ CMOS > Powerful 30x optical zoom > 316L stainless steel housing > Starlight technology > H.265/H.264 Triple-stream Encoding > Max. 50/60fps@1080P > IR distance up to 100m > IP68

DAHUA EPC230U 2MP 30x Explosion-proof IR Network Camera

product-img

EPC230U

2MP 30x Explosion-proof IR Network Camera

> 1/2.8” 2Megapixel STARVIS™ CMOS > Powerful 30x optical zoom > 304 stainless steel housing > Starlight technology > H.265 Encoding > Max. 50/60fps@1080P > Support IVS > IR distance up to 100m > ATEX and IECEx Certifacation > IP68

DAHUA EPC230U-PTZ 2MP 30x Explosion-proof Network Positioning System

product-img

EPC230U-PTZ

2MP 30x Explosion-proof Network Positioning System

> 1/2.8” 2Megapixel STARVIS™ CMOS > Powerful 30x optical zoom > 316L stainless steel housing > Starlight technology > H.265/H.264 Triple-stream Encoding > Max. 50/60fps@1080P > IP68

DAHUA's Flameproof Solution: DAHUA's explosion-proof cameras are equipped with flameproof enclosures that not only withstand internal explosion pressures but also prevent the spread of such pressures to the surrounding environment. This feature is crucial for providing real-time monitoring of key areas and equipment operation status without the risk of ignition or explosion.

ATEX and IECEx Certification: With ATEX and IECEx certification, DAHUA's cameras are verified for safety and performance, making them ideal for a variety of application scenarios. These include oil refining plants, chemical plants, oil and gas stations, and flour mills, where the potential for explosive atmospheres is ever-present.

Corrosion Resistance: DAHUA’s anti-corrosion series of cameras is crafted from 316L stainless steel materials and coated with anti-corrosion materials that meet the stringent NEMA 4X standard or EN60950-22 standard. This ensures the cameras can withstand the corrosive effects of salt, chemicals, and other environmental factors.

Versatile Design and Functionality: The anti-corrosion series offers a variety of design and functional options, catering to different customer needs. This versatility makes DAHUA's cameras suitable for high-definition surveillance in sites exposed to neutral salt haze, such as ports, coastal zones, shipping areas, coastal roads, chemical facilities, islands, and more.

Enhanced Surveillance Experience: DAHUA's explosion-proof cameras provide an enhanced surveillance experience in hazardous environments. They are designed to operate reliably in conditions that would render standard cameras ineffective, ensuring continuous monitoring and early detection of potential hazards.

ATEX and IECEx certifications are critical in ensuring the reliability and safety of DAHUA's explosion-proof cameras in various industrial settings. Here's how these certifications contribute to the safety and performance of the cameras:

  1. Compliance with International Standards:

    • ATEX (Atomic Energy Treaty) certification indicates compliance with the European Union's directives for equipment used in potentially explosive atmospheres. Similarly, IECEx (International Electrotechnical Commission) certification is a global standard for electrical equipment used in such environments. Both certifications ensure that DAHUA's cameras meet rigorous international safety standards.
  2. Protection Against Explosions:

    • The primary purpose of these certifications is to verify that the cameras have a robust design that can withstand internal explosions and prevent the spread of flames or pressure to the surrounding environment, thereby reducing the risk of explosions.
  3. Testing and Quality Assurance:

    • To obtain ATEX and IECEx certifications, cameras must undergo a series of tests to ensure they can operate safely in explosive atmospheres. This includes testing for electrical, mechanical, and thermal safety, ensuring the cameras are of the highest quality and reliability.
  4. Risk Assessment and Mitigation:

    • The certifications involve a thorough risk assessment of the cameras' operation in potentially explosive environments. This assessment helps in designing cameras that mitigate the risk of ignition or explosion, even in the presence of flammable gases, dust, or chemicals.
  5. Design and Construction:

    • DAHUA's explosion-proof cameras are designed with flameproof enclosures and use intrinsic safety features, which are verified during the certification process. This ensures that the cameras can operate safely without posing a risk to the surrounding environment.
  6. Global Recognition and Acceptance:

    • ATEX and IECEx certifications are recognized worldwide, allowing DAHUA's cameras to be used across different countries and industries, providing a level of safety assurance to global users.
  7. Legal and Regulatory Compliance:

    • In many regions, using ATEX and IECEx certified equipment is mandatory in certain industrial sectors to comply with health and safety regulations. These certifications ensure that DAHUA's cameras meet these legal requirements.
  8. Enhanced Credibility and Trust:

    • Holding these certifications enhances the credibility of DAHUA's explosion-proof cameras, building trust with customers who require reliable and safe surveillance solutions.
  9. Continuous Improvement:

    • The process of obtaining and maintaining ATEX and IECEx certifications encourages continuous improvement in the design and manufacturing of DAHUA's cameras, driving the company to uphold the highest safety and performance standards.
  10. Emergency Response and Rescue Operations:

    • In the event of an incident, certified explosion-proof cameras can continue to operate safely, providing vital surveillance data to support emergency response and rescue operations.

By adhering to the stringent requirements of ATEX and IECEx certifications, DAHUA ensures that its explosion-proof cameras provide a reliable and safe solution for surveillance in potentially explosive environments, protecting both people and property.

 DAHUA's commitment to resilience in hazardous environments is evident in their explosion-proof cameras. Engineered to the highest safety and performance standards, these cameras offer a reliable surveillance solution for industries operating under the constant threat of explosive conditions. As the world increasingly relies on robust security measures, DAHUA stands as a beacon of durability and safety, ensuring that surveillance remains uncompromised, even in the most challenging circumstances. With DAHUA, businesses can operate with confidence, knowing that their surveillance is in the hands of proven, explosion-proof technology.
