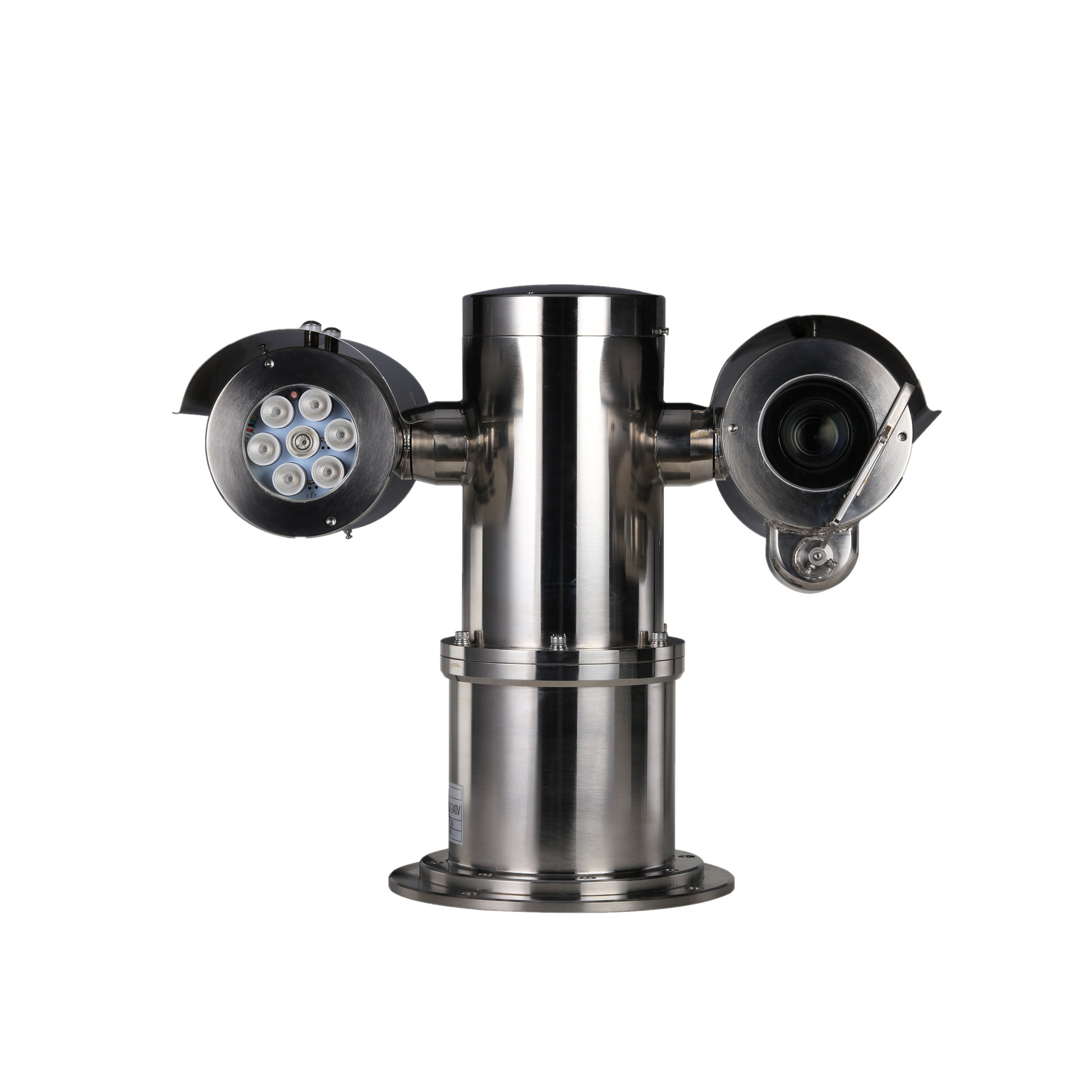

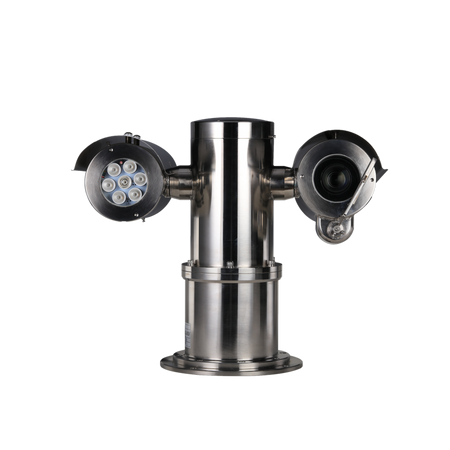

DAHUA EPC245U-PTZ-IR 2MP 45x Explosion-proof IR Network Positioning System

In stock
SKU: EPC245U-PTZ-IR
Regular price $1,000,000.00

Estimated delivery date: 2024-01-03

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



EPC245U-PTZ-IR

2MP 45x Explosion-proof IR Network Positioning System

> 1/2.8” 2Megapixel STARVIS™ CMOS
> Powerful 45x optical zoom
> 316L stainless steel housing
> Starlight technology
> H.265/H.264 Triple-stream Encoding
> Max. 50/60fps@1080P
> IR distance up to 200m
> IP68



Product Data

Camera

Image Sensor

1/2.8” STARVIS™ CMOS

Effective Pixels

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

512M/128M

Scanning System

Progressive

Electronic Shutter Speed

1/1s~1/30,000s

Minimum Illumination

Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6(IR on)

IR Distance

Distance up to 200m (656ft)

IR On/Off Control

Auto/Manual

IR LEDs

7

Wiper

Support

Lens

Focal Length

3.95mm~177.7mm

Max. Aperture

F1.6~ F4.95

Angle of View

H: 70.3° ~ 1.8°

Optical Zoom

45x

Focus Control

Auto/Manual

Close Focus Distance

100mm~ 1000mm

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

2345m(7694ft)

938m(3077ft)

469m(1539ft)

234m(768ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -90° ~ 90°

Manual Control Speed

Pan: 0.1° ~40° /s; Tilt: 0.1° ~40° /s

Preset Speed

Pan: 40° /s; Tilt: 40° /s

Presets

256

PTZ Mode

5 Scan, 8 Tour

Speed Setup

Human-oriented focal Length/speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/Scan/Tour if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)
