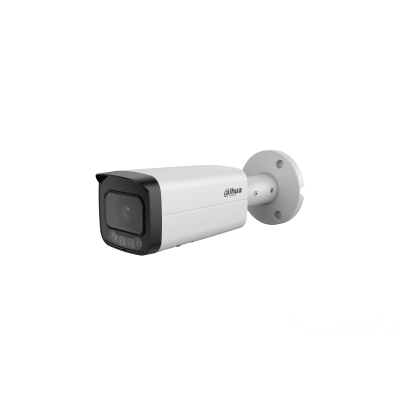

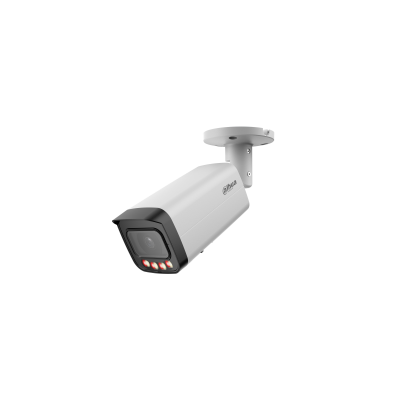

Dahua IPC-HFW5859T-ASE-IL 8MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera, 2.8/3.6/6mm F1.6, 120dB WDR, IP67/IK10
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua IPC-HFW5859T-ASE-IL 8MP Smart Dual Light Fixed‑focal Bullet WizMind Network Camera – 2.8/3.6/6mm Lens Options
8MP 4K Fixed‑focal Bullet with Xinghan Vision Models & Smart Dual Light
- 8MP 4K Ultra‑HD Imaging: 3840×2160 resolution from a large 1/1.8" CMOS sensor. Choose from 2.8mm (110°), 3.6mm (88°), or 6mm (60°) fixed lenses, all with F1.6 aperture.
- Xinghan Vision Models: Comprehensive enhancement of target detection and imaging – longer detection distance and better recognition.
- Smart Dual Light: 4 multi‑core IR+warm LEDs. IR up to 80m, warm light up to 60m. Auto/Manual control.
- 120dB True WDR & AI Coding: 120dB WDR ensures clear details in strong backlight; AI H.265/H.264 (Smart H.265+/H.264+) reduces bandwidth and storage.
- 7+ AI Functions & EPTZ: Perimeter protection (IVS), SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata – supports multiple intelligent functions simultaneously. EPTZ included.
- Built-in Microphone & Sound Alarm: Real‑time audio security with 11 pre‑set and 10 customizable sound alarms (adjustable volume and play times).
- Rugged Vandal‑proof Bullet: Metal casing, IP67 weatherproof, IK10 vandal‑resistant, operating temperature -40°C to +60°C (–40°F to +140°F).
Camera Specification
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 3840 × 2160 (8MP 4K) |
| ROM / RAM | 4 GB / 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0008 lux @ F1.6 (Color, 30 IRE); 0.0004 lux (B/W); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance / Type | IR up to 80 m, warm light up to 60 m (4 multi‑core IR+warm LEDs); Smart Dual Light with Auto/Manual control |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
Lens & DORI Optics
| Lens Type / Mount | Fixed-focal (M12 mount) – 2.8mm, 3.6mm, or 6mm options | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. Aperture | F1.6 | ||||||||||||||||||||
| Iris Control | Fixed | ||||||||||||||||||||
| Field of View |
2.8mm: H: 110°, V: 56°, D: 134° 3.6mm: H: 88°, V: 49°, D: 100° 6mm: H: 60°, V: 34°, D: 67° |
||||||||||||||||||||
| Close Focus Distance | 2.8mm: 2.1 m (6.9 ft); 3.6mm: 2.5 m (8.2 ft); 6mm: 4.5 m (14.8 ft) | ||||||||||||||||||||
| DORI Distance |
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.
|
| AI Functions | Perimeter protection (IVS), SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata, EPTZ |
|---|---|
| IVS Perimeter Protection | Intrusion, tripwire, fast moving (human/vehicle/animal classification), loitering, gathering, parking detection, stay detection. Large‑scale AI models extend detection range and reduce false alarms. Supports self‑learning. |
| SMD 4.0 | Smart Motion Detection – filters out false alarms caused by environmental changes. |
| AcuPick | Deep learning target matching with back‑end NVR for rapid live/recorded video search. |
| Face Detection | 6 attributes (gender, age, glasses, expressions, mask, beard) + 8 expressions. Snapshot optimization, face enhancement, angle filter. |
| People Counting & Heat Map | Tripwire counting, area counting, queue management, report export (day/week/month/year). Heat map supported. | Video Metadata | Motor vehicle (6 attributes), non‑motor vehicle (6 attributes), face (6 attributes), human body (8 attributes). |
Video & Audio Specifications
| Video Compression / AI Coding | H.265; H.264; H.264H; H.264B; MJPEG (sub stream) | AI H.265 / AI H.264 (Smart H.265+/H.264+) | ||||
|---|---|---|---|---|---|
| Streaming Capability | 4 streams (main, sub, third, fourth) | ||||
| Resolution | 8M (3840×2160), 6M, 5M, 4M, 3M, 1080p, 720p, D1, VGA, CIF | ||||
| Video Frame Rate | Main: 8MP @ 25/30 fps; Sub: D1 @ 25/30 fps; Third: 1080p @ 25/30 fps; Fourth: 720p @ 25/30 fps | ||||
| Bit Rate Control / Range | VBR, CBR | H.264/H.265: 3–16384 kbps | ||||
| WDR & Image Enhancements | 120 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; Smart Illumination; LDC | ||||
| Special Features | EPTZ, Image Rotation, Privacy Masking (4 mosaics or 8 color blocks) | ||||
| Audio Features |
Built-in Microphone (no speaker) Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723 External: 1‑ch RCA input, 1‑ch RCA output |
| Network Port | RJ-45 (10/100 Enhancement Base-T – Fast Ethernet) | ||||
|---|---|---|---|---|---|
| Network Protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration | ||||
| Interoperability / Browser | ONVIF (Profile S/G/T/M); CGI | IE11+, Chrome 102+, Firefox 88+ | ||||
| Local Storage | Micro SD card (max. 1 TB); FTP; SFTP; NAS | ||||
| Cybersecurity | Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; X.509 certification. | ||||
| Management Software | DSS; DMSS; DoLynk Care | iOS & Android |
| RS-485 | Not specified | ||||
|---|---|---|---|---|---|
| Audio I/O | 1‑ch RCA input, 1‑ch RCA output (in addition to built‑in microphone) | ||||
| Alarm I/O | 1 alarm input (wet contact, 5 mA 3–5 VDC) 1 alarm output (wet contact, 300 mA 12 VDC) |
||||
| Analog Output | Not specified | ||||
| Power Output | Not specified | ||||
| Alarm Events | Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, fast moving, loitering, parking, scene changing, audio detection, defocus, face detection, SMD, people counting, queue alarms, etc. |
| Power Supply | 12 VDC (±30%), PoE+ (802.3at), ePoE; Dual Power Backup (hot‑swap without restart) | Power Consumption | Basic: 4.2 W (12 VDC), 6.3 W (PoE) Max (H.265 + WDR + warm light + AI on): 13.3 W (12 VDC), 15.6 W (PoE) |
||
|---|---|---|---|---|---|
| Operating Temperature / Humidity | –40 °C to +60 °C (–40 °F to +140 °F) | ≤95% RH (non‑condensing) | ||||
| Storage Temperature / Humidity | –40 °C to +60 °C, ≤95% RH | ||||
| Protection Ratings | IP67 (weatherproof), IK10 (vandal‑proof) | ||||
| Anti‑corrosion Level | Not specified (basic protection assumed) | ||||
| Casing Material | Metal |
|---|---|
| Product Dimensions | 238.0 mm × 90.7 mm × 90.7 mm (9.37" × 3.57" × 3.57") (L×W×H) |
| Net Weight / Gross Weight | 835 g (1.84 lb) / 1090 g (2.40 lb) |
