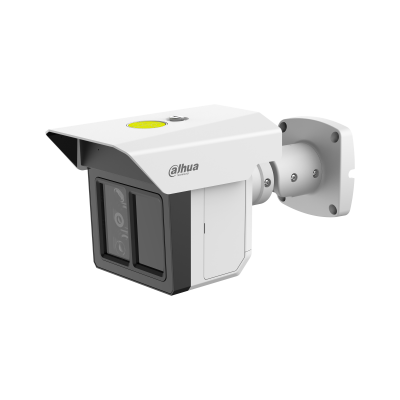

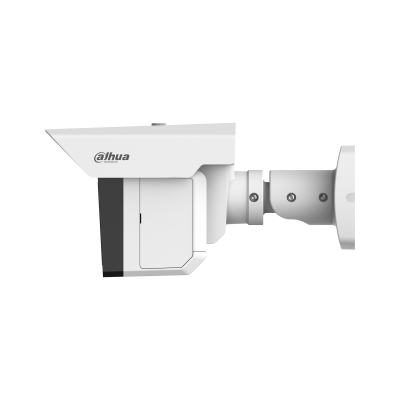

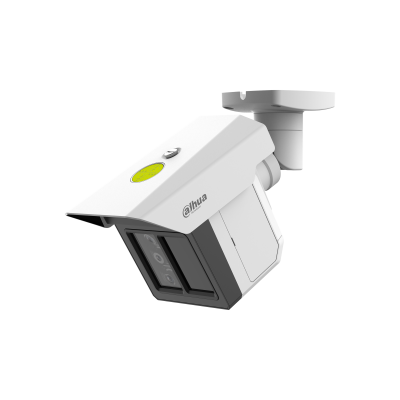

Dahua IPC-MFW5241T2-E3-ASE 3×2MP Tri-lens Bullet WizMind Network Camera, 3.6/12/25mm, 140m Detection, Micro-PTZ, IP67/IK10
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua IPC-MFW5241T2-E3-ASE 3×2MP Tri‑lens Bullet WizMind Network Camera – 3.6/12/25mm Fixed Lenses, Micro‑PTZ
Three Lenses, Three Perspectives – Long‑Range Perimeter Protection
- Tri‑lens 3×2MP Full‑HD Imaging: Three independent 1/2.8" CMOS sensors with 3.6mm (wide), 12mm (standard), and 25mm (tele) fixed lenses – capture wide overview, mid‑range, and long‑distance details simultaneously.
- Exceptional Long‑Range Detection: Xinghan Vision Models enable daytime perimeter detection up to 140m (459 ft). Channel 3 (25mm) DORI detect range reaches 331m (1,086 ft).
- Micro‑PTZ & 3‑Axis Adjustment: Remote tilt adjustment (-5° to 10°) for fine‑tuning each lens angle. Independent pan/tilt/rotation (0°–360°/0°–70°/0°–360°) simplifies on‑site installation. Built‑in gradienter visualizes horizontal level.
- Smart Dual Light & Area Illumination: 8 IR LEDs provide up to 120m night vision. 6 independently configurable illumination zones optimize lighting for each scene area.
- Built‑in Dual Mic & Speaker: Secure real‑time two‑way talk. Audio alarm can be triggered with intrusion events.
- AI Perimeter Protection (Channel 1): Intrusion and tripwire with human/vehicle classification. Alarms are output through channel 1 for centralized management.
- Rugged Vandal‑proof Bullet: Metal casing, IP67 weatherproof, IK10 vandal‑resistant, -40°C to +60°C operation – ideal for harsh outdoor environments.
Camera Specification
| Image Sensor | Channel 1–3: 1/2.8" CMOS |
|---|---|
| Max. Resolution (per channel) | 1920 × 1080 (2MP 1080p) |
| ROM / RAM | 4 GB / 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
Ch1 (3.6mm F1.6): 0.0007 lux (Color); 0.0004 lux (B/W) Ch2 (12mm F2.0): 0.004 lux (Color); 0.0005 lux (B/W) Ch3 (25mm F2.8): 0.008 lux (Color); 0.0008 lux (B/W) All channels: 0 lux (IR on) |
| S/N Ratio | >56 dB |
| Illumination Distance / Type | IR up to 120 m, 8 IR LEDs | Auto/Manual control | 6 independently configurable illumination zones |
| Angle Adjustment | Triaxial: Pan 0–360°, Tilt 0–70°, Rotation 0–360° Micro‑PTZ: Tilt -5° to +10° (remote) |
Lens & DORI Optics
| Lens Type / Mount | All channels: Fixed-focal (M12 mount) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focal Length & Aperture |
Ch1: 3.6 mm, F1.6 Ch2: 12 mm, F2.0 Ch3: 25 mm, F2.8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Iris Control | Fixed (all channels) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Field of View |
Ch1: D: 100.4°, H: 85.9°, V: 46.7° Ch2: D: 29.5°, H: 25.7°, V: 14.4° Ch3: D: 14.9°, H: 13°, V: 7.4° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Close Focus Distance | Ch1: 1.1 m (3.6 ft); Ch2: 8.6 m (28.2 ft); Ch3: 19.6 m (64.3 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DORI Distance |
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AI Functions (Channel 1 only) | Perimeter protection (IVS) – intrusion and tripwire with human/vehicle classification. Alarms are output through channel 1. |
|---|---|
| IVS Detection Range | Up to 140 m (459 ft) during daytime (based on standard test environment) with Xinghan Vision Models. |
| Smart Search | Works with Smart NVR for refined intelligent search and event extraction. |
Video & Audio Specifications
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) |
|---|---|
| Smart Codec | Smart H.265+ / Smart H.264+ (not specified – standard H.265/H.264 provided) |
| Stream Capability (per channel) | 2 streams (main, sub) |
| Resolution | 1080p (1920×1080) for all channels |
| Video Frame Rate | Main stream: 1080p @ 25 fps (50 Hz) / 30 fps (60 Hz) Sub stream: D1 @ 25/30 fps |
| Bit Rate Control / Range | VBR, CBR | H.264/H.265: 3–8192 kbps |
| WDR & Image Enhancements | DWDR (Digital WDR); SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Smart Illumination; Privacy Masking (8 areas) |
| Audio Features |
Built-in Dual Mic + Built-in Speaker (two‑way talk) Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723 External: 1‑ch RCA input, 1‑ch RCA output |
| Network Port | RJ-45 (10/100 Base-T – Fast Ethernet) |
|---|---|
| Network Protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour |
| Interoperability / Browser | ONVIF (Profile S/G/T/M); CGI | IE9+, Edge79+, Chrome 102+, Firefox 88+ |
| Local Storage | Micro SD card (max. 1 TB); FTP; SFTP; NAS |
| Cybersecurity | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; X.509 certification. |
| Management Software | SmartPSS Lite; DSS; DMSS; DoLynk Care | iOS & Android |
| RS-485 | 1 port (1200–115200 bps) |
|---|---|
| Audio I/O | 1‑ch RCA input, 1‑ch RCA output (in addition to built‑in dual mic & speaker) |
| Alarm I/O | 2 alarm inputs (wet contact, 5 mA 3–5 VDC) 2 alarm outputs (wet contact, 300 mA 12 VDC) |
| Analog Output | Not specified |
| Power Output | 12 VDC, max 165 mA (peak 700 mA) |
| Alarm Events | Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, scene changing, audio detection, voltage detection, external alarm, security exception, etc. |
| Power Supply | 12 VDC (±30%), PoE+ (802.3at), ePoE; Dual Power Backup (hot‑swap without restart) |
|---|---|
| Power Consumption | Basic: 4.3 W (12 VDC), 5.5 W (PoE) Max (AI + IR + speaker on): 22.1 W (12 VDC), 23.6 W (PoE) |
| Operating Temperature / Humidity | –40 °C to +60 °C (–40 °F to +140 °F) | ≤95% RH (non‑condensing) |
| Storage Temperature / Humidity | –40 °C to +60 °C, ≤95% RH |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal‑proof) |
| Anti‑corrosion Level | Not specified (basic protection assumed) |
| Casing Material | Metal |
|---|---|
| Product Dimensions | 278.6 mm × 124.0 mm × 140.4 mm (10.97" × 4.88" × 5.53") (L×W×H) |
| Net Weight / Gross Weight | 2.4 kg (5.29 lb) / 3.06 kg (6.75 lb) |
