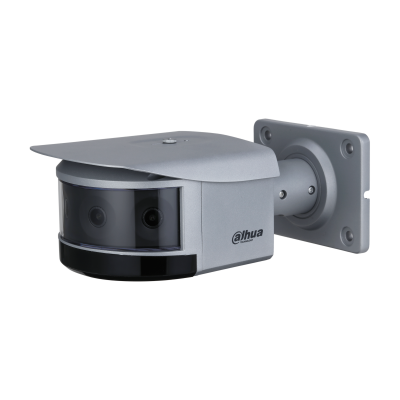

DAHUA IPC-PFW81642-A180 4X 4 MP Multi-Sensor Panoramic Bullet Wizmind Network Camera

In stock
SKU: IPC-PFW81642-A180
Regular price $686.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement:For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



IPC-PFW81642-A180

> Outputs max. 16 MP (5520 × 2700)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Three streams for HD video display.
> Built-in IR LED, and the max. illumination distance is 30 m.
> 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G Micro SD card.
> 12 VDC/24 VAC/PoE power supply, easy for installation.
> IP67 and IK10 protection.



Product Data

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

5520 (H) × 2700 (V)

ROM

8 GB

RAM

4 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.001 lux@F1.6 (Color, 30 IRE)
0.0001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft) (IR LED)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

8 (IR LED)

Pan/Tilt/Rotation Range

Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

H: 180°; V: 100°

Iris Control

Fixed

Close Focus Distance

1.3 m (4.27 ft)

DORI Distance

Detect

Observe

Recognize

Identify

58.9 m

(193.24 ft)

23.6 m

(77.43 ft)

11.8 m

(38.71 ft)

5.9 m

(19.37 ft)

Intelligence

EPTZ

Yes

IVS (Perimeter Protection)

Tripwire; Intrusion

Vehicle Density

Vehicle density; parking upper limit; vehicle congestion alarm

Crowd Distribution Map

Crowd map, global people counting; people counting in area

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main Stream: 5520 × 2700@(1-25/30 fps)
Sub Stream: 1280 × 620@(1-25/30 fps)
Third Stream: 1920 × 940@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

5520 × 2700; 4600 × 2252; 3840 × 1880; 2880 × 1408; 1280 × 620; 1024 × 496; 1920 × 940; 1366 × 668

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 96 kbps–16384 kbps
H.265: 38 kbps–12544 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

Privacy Masking

8 areas

Audio

Audio Compression

G.711a; G.711Mu; G.726: G.723; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; audio detection; voltage detection; external alarm; security exception; crowd distribution map; tripwire; intrusion; traffic congestion; parking upper limit

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

With plug-in:
IE: IE 9 and later
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later
Without plug-in:
Edge
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later

Management Software

Smart PSS; DSS; DMSS

Cyber Security

Configuration encryption;trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Analog Output

1 channel (CVBS output:BNC)

Alarm Input

2 channels in: 5 mA 3–5 VDC

Alarm Output

2 channels out: 1,000 mA 30 VDC/500 mA 50 VAC

Power

Power Supply

12 VDC/24 VAC/PoE+ (802.3at)

Power Consumption

Basic: 8.2 W (12 VDC); 9.7 W (24 VAC); 9.7 W (PoE)
Max. (WDR + IR intensity + intelligence on+ max. stream): 21.5 W (12 VDC); 24.2 W (24 VAC); 24.2 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Operating Humidity

≤95%

Protection

IP67; IK10

Structure

Casing Material

Metal + plastic

Product Dimensions

298.3 mm × 172.5 mm × 120.5 mm (11.74" × 6.79" × 4.74") (L × W × H)

Net Weight

3.05 kg (6.72 lb)

Gross Weight

3.79 kg (8.36 lb)
