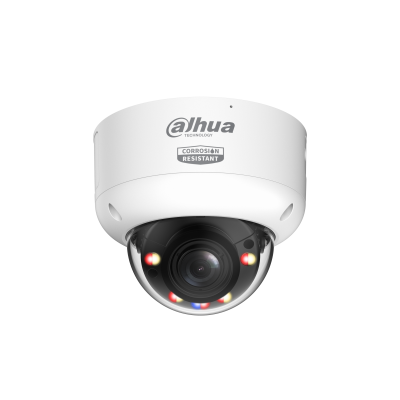

Dahua IPC-HDBW3449R1-ZAS-PV-PRO-ATC 4MP Anti-Corrosion Dome Network Camera

Name: Dahua IPC-HDBW3449R1-ZAS-PV-PRO-ATC 4MP Anti-Corrosion Dome Network Camera
Brand: Dahua
SKU: IPC-HDBW3449R1-ZAS-PV-PRO-ATC
Price: 10000.00 USD
Availability: InStock

In stock

SKU: IPC-HDBW3449R1-ZAS-PV-PRO-ATC

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua IPC-HDBW3449R1-ZAS-PV-PRO-ATC 4MP WizColor TiOC PRO Vari‑focal Anti‑corrosion Dome WizSense Network Camera – 2.7‑12mm F1.2 Zoom, Active Deterrence, NEMA 4X

4MP WizColor TiOC PRO Dome – Active Deterrence & Professional Anti‑Corrosion

4MP Ultra‑HD Imaging: 2688×1520 resolution from a large 1/1.8" CMOS sensor. Motorized 2.7‑12mm F1.2 zoom (4.4x) with ultra‑bright aperture.
WizColor Technology: Exceptional low‑light color imaging down to 0.0003 lux – delivers vibrant, detailed images in near darkness without white light.
TiOC PRO Active Deterrence: Red & blue warning lights, sound alarm, and warm light triggered by intrusion – instantly deters intruders.
Built‑in Dual Mic & Speaker: Secure real‑time two‑way talk and audio alarm broadcast.
Advanced AI & AcuPick: Xinghan Vision Models, SMD 4.0, AcuPick (fast human/vehicle search), IVS perimeter protection (intrusion/tripwire with classification), face detection (full image), AI SSA.
120dB True WDR & AI Coding: 120dB WDR ensures clarity in backlight; AI H.265/H.264 (Smart H.265+/H.264+) reduces bandwidth and storage.
Professional Anti‑corrosion (NEMA 4X, C5-H): Enhanced anti‑corrosion aluminum alloy casing. Ideal for chemical plants, docks, coastlines (up to 2km from sea), and acid rain areas.
Rugged Vandal‑proof Dome: IP67 weatherproof, IK10 vandal‑resistant, 3‑axis adjustment (Pan 355°, Tilt 80°, Rotation 355°), operating temperature -30°C to +60°C.

Camera Specification

Image Sensor	1/1.8" CMOS
Max. Resolution	2688 × 1520 (4MP)
ROM / RAM	Not specified (standard WizSense AI architecture)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s	Min. Illumination	0.0003 lux @ F1.2 (Color, 30 IRE); 0.0001 lux (B/W); 0 lux (illuminator on)
S/N Ratio	>56 dB
Illumination Distance / Type	IR up to 50 m, warm light up to 50 m (4 multi‑core IR+warm LEDs); Zoomprio control
Angle Adjustment	Pan: 0°–355°, Tilt: 0°–80°, Rotation: 0°–355°

Lens & DORI Optics

Lens Type / Mount	Motorized vari-focal (Φ16 mount)
Focal Length / Aperture	2.7 mm–12 mm (4.4x optical zoom) \| F1.2
Iris Control	Fixed

Field of ViewH: 114°–48°, V: 59°–27°, D: 143°–56° Close Focus Distance1.75 m (5.74 ft) DORI Distance

Lens Mode	Detect	Observe	Recognize	Identify
Wide (2.7mm)	60.4 m (198 ft)	24.2 m (79 ft)	12.1 m (40 ft)	6.0 m (20 ft)
Tele (12mm)	128.7 m (422 ft)	51.5 m (169 ft)	25.7 m (84 ft)	12.9 m (42 ft)

*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.

Elite Intelligence (WizSense)

Video & Audio Specifications

AI Functions	Perimeter protection (IVS), SMD 4.0, AcuPick, face detection (full image), AI SSA (scene self‑adaptation)
IVS Perimeter Protection	Intrusion, tripwire (human/vehicle classification), stay detection, loitering detection. Large‑scale AI models extend detection range and reduce false alarms.
SMD 4.0	Smart Motion Detection – filters out false alarms caused by environmental changes.
AcuPick	Deep learning target matching with back‑end NVR for rapid human/vehicle search.
Face Detection (Full Image)	Face detection, snapshot optimization, face exposure, face angle filter, snapshot strategies (real‑time/quality/optimization).

Network, Storage & Cybersecurity

Video Compression / AI Coding	H.265; H.264; H.264H; H.264B; MJPEG (sub stream) \| AI H.265 / AI H.264 (Smart H.265+/H.264+)
Streaming Capability	3 streams (main, sub, third)
Resolution	4M (2688×1520/2560×1440), 3M, 1080p, 720p, D1, VGA, CIF
Video Frame Rate	Main: 4MP @ 25/30 fps; Sub: 1080p @ 25/30 fps; Third: 1080p @ 25/30 fps
Bit Rate Control / Range	VBR, CBR, ABR \| H.264/H.265: 3–16384 kbps
WDR & Image Enhancements	120 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; Smart Illumination; EIS
Special Features	Image Rotation, Privacy Masking (8 areas)
Audio Features	Built-in Dual Mic + Built-in Speaker (two‑way talk) Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723 External: 1‑ch RCA input, 1‑ch RCA output

Physical I/O Interfaces

Network Port	RJ-45 (10/100/1000 Base-T) Gigabit Ethernet
Network Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration
Interoperability / Browser	ONVIF (Profile S/G/T/M); CGI \| IE, Chrome, Firefox
Local Storage	Micro SD card (max. 512 GB); FTP; SFTP; NAS
Cybersecurity	Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; X.509 certification.
Management Software	SmartPSS Lite; DSS; DMSS; DoLynk Care \| iOS & Android

Power, Climate & Protection

RS-485	Not specified
Audio I/O	1‑ch RCA input, 1‑ch RCA output (in addition to built‑in dual mic & speaker)
	Alarm I/O	1 alarm input (wet/dry contact), 1 alarm output (dry contact, 1000 mA 30 VDC / 500 mA 50 VAC)
Analog Output	Not specified
Power Output	Not specified
Alarm Events	Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, loitering, stay, scene changing, audio detection, defocus, face detection, SMD, security exception, etc.

Physical Structure

Power Supply	12 VDC (±30%), PoE+ (802.3at); Dual Power Backup (hot‑swap without restart)
Power Consumption	Basic: 4.1 W (12 VDC), 5.7 W (PoE) Max (H.265 + WDR + warm light + active deterrence + AI on): 12.1 W (12 VDC), 16.1 W (PoE)
Operating Temperature / Humidity	–30 °C to +60 °C (–22 °F to +140 °F) \| ≤95% RH (non‑condensing)
Storage Temperature / Humidity	–40 °C to +60 °C, ≤95% RH
Protection Ratings	IP67 (weatherproof), IK10 (vandal‑proof); NEMA 4X, C5‑H (professional anti‑corrosion, UL 50E certified)
Anti‑corrosion Level	Professional Protection – Enhanced anti‑corrosion aluminum alloy casing. Ideal for chemical plants, docks, coastlines (up to 2 km from sea), and acid rain areas.

Casing Material	Casing: Metal (Enhanced Anti‑Corrosion Aluminum Alloy)
Product Dimensions	105.0 mm × Φ126.0 mm (4.13" × Φ4.96") (H × D)
Net Weight / Gross Weight	0.75 kg (1.65 lb) / 0.99 kg (2.18 lb)
