Dahua IPC-HDBW5859R1-ZE-PV-PRO 8MP WizColor AI Vari-focal Dome Camera, Active Deterrence WizMind

Name: Dahua IPC-HDBW5859R1-ZE-PV-PRO 8MP WizColor AI Vari-focal Dome Camera, Active Deterrence WizMind
Brand: CCTV-MALL
Price: 10000.00 USD
Availability: InStock

In stock

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

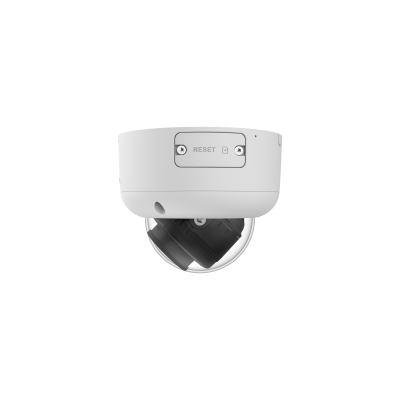

Dahua IPC-HDBW5859R1-ZE-PV-PRO 8MP WizColor 2.7mm–12mm Vari-focal Dome WizMind Network Camera

Key Highlights

8MP 4K Ultra-HD: Superior clarity with 3840 × 2160 resolution and 1/1.8" CMOS sensor.
Xinghan Vision Models: Cutting-edge AI for comprehensive enhancement of target detection and longer AI detection distances.
WizColor Technology: Exceptional full-color image quality in ultra-low light (0.0006 lux) environments.
Active Deterrence: Built-in dual Mic & Speaker with sound/light warnings (siren) for real-time talk and active deterrence.
Motorized Vari-focal Lens: 2.7mm–12mm lens for flexible field of view and remote optical zoom.
Vandal-Proof Protection: IP67 waterproof and IK10 vandal-proof ratings with a professional dome housing.

Camera

Image Sensor	1/1.8" CMOS
Max. Resolution	3840 (H) × 2160 (V)
ROM / RAM	4 GB / 2 GB
Scanning System	Progressive
Min. Illumination	0.0006 lux@F1.2 (Color, 30 IRE); 0.0003 lux@F1.2 (B/W); 0 lux (Illuminator on)
Illumination Distance	IR: Up to 50 m (164.04 ft); Warm light: Up to 40 m (131.23 ft)
Illuminator Number	4 (Multi-core IR + warm light) \| Auto; Manual; Zoomprio
Angle Adjustment	Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal (2.7 mm–12 mm)

Max. Aperture

F1.2

Field of View

H: 98°–48°; V: 52°–27°; D: 117°–55°

Iris / Focus

Auto; P-Iris | Close Focus: 0.16 m (0.52 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
W (2.7mm)	96.6 m (316.9 ft)	38.6 m (126.6 ft)	19.3 m (63.3 ft)	9.6 m (31.5 ft)
T (12.0mm)	186.6 m (612.2 ft)	74.6 m (244.7 ft)	37.3 m (122.3 ft)	18.7 m (61.3 ft)

Intelligence & AI

AI Functions	SMD 4.0; AcuPick; Face Detection; People Counting; Heat Map; EPTZ.
IVS (Perimeter)	Intrusion, tripwire, fast moving (vehicle/human classification); Loitering, gathering, parking, stay detection. Supports Perimeter Large-Scale AI Models.
Video Metadata	Human, Face, Motor/Non-motor vehicle detection & attribute extraction.
Face Detection	6 attributes & 8 expressions; snapshot optimization; face enhancement; exposure control.

Video & Audio

Compression	H.265; H.264; AI Coding (Smart H.265+/H.264+)
WDR / SSA	130 dB WDR \| Scene Self-adaptation (SSA) Supported
Frame Rate	Main stream: 3840 × 2160@(1–25/30 fps); Supports 4 streams.
Audio Hardware	Built-in dual Mic & Speaker; 1-ch RCA Input/Output
Deterrence	Warm light warning (Flash/Solid 5s-30s); 11 sound alarms + 10 custom sounds.
Imaging Specs	EIS; Defog; 3D NR; BLC; HLC; ROI (4 areas); LDC.

Network & Technical

Storage	Micro SD card (Up to 1 TB); FTP; SFTP; NAS
Protocols	IPv4; IPv6; HTTP; TCP; UDP; RTSP; P2P; ONVIF (Profile S/G/T/M) etc.
Alarm I/O	2-ch In; 2-ch Out (Dry contact)
Power Output	12 VDC power output, peak current 700 mA
Security	Digest; Account lockout; IP/MAC filtering; Trusted boot/upgrade.

Environment & Structure

Power Supply	12 VDC; PoE+ (802.3at); ePoE; Dual Power Backup
Power Consumption	Basic: 5.3 W; Max (IR+Deterrence+AI+Siren/Light): 24.2 W (PoE)
Protection	IP67 Waterproof; IK10 Vandal-proof
Casing / Size	Metal Material \| 104.2 mm × Φ159.1 mm (4.10" × Φ6.26")
Weight	Net: 1.05 kg (2.31 lb); Gross: 1.42 kg (3.13 lb)
