Dahua IPC-HDBW7459Z-Z-PV-X 4MP WizMind PTRZ Dome Camera, 150dB WDR, 90fps, ANPR & Active DeterrenceDahua IPC-HDBW7459Z-Z-PV-X 4MP WizMind PTRZ Dome Camera, 150dB WDR, 90fps, ANPR & Active Deterrence

Name: Dahua IPC-HDBW7459Z-Z-PV-X 4MP WizMind PTRZ Dome Camera, 150dB WDR, 90fps, ANPR & Active DeterrenceDahua IPC-HDBW7459Z-Z-PV-X 4MP WizMind PTRZ Dome Camera, 150dB WDR, 90fps, ANPR & Active Deterrence
Brand: Dahua
SKU: IPC-HDBW7459Z-Z-PV-X

In stock

SKU: IPC-HDBW7459Z-Z-PV-X

Request a Quote

Product variants

Request a Quote

Tell us your quantity and delivery destination for a confirmed quote.

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

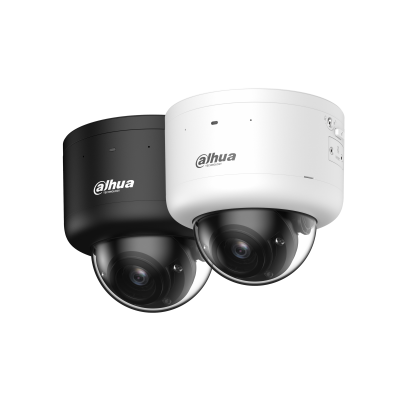

Dahua IPC-HDBW7459Z-Z-PV-X 4MP Smart Dual Light PTRZ Active Deterrence WizMind Network Dome Camera (90fps & 150dB WDR)

Ultimate PTRZ Performance Highlights

Full PTRZ Remote Adjustment: Effortlessly adjust Pan, Tilt, Rotation, and Zoom remotely. Eliminates the need for manual physical aiming during and after installation.
High Frame Rate Mastery: Captures remarkably smooth video at up to 4MP@90fps and 2MP@120fps, ideal for flawless high-speed object tracking.
150dB Ultra-WDR & AI-ISP: Industry-leading dynamic range combined with AI-ISP technology ensures crystal-clear details in extreme backlight and ultra-low light (0.0003 lux).
Proactive Active Deterrence: Integrated Light warning and high-power siren (110dB) to stop intruders. Supports secure real-time talk with built-in dual Mic and speaker.
Comprehensive AI Suite: Powered by Xinghan Vision Models, supporting ANPR, PPE Detection (helmets, vests, etc.), Face Recognition (200k database), and Parking Space Management.
Extreme Cold Reliability: Built-in Window Heater removes ice and mist instantly. Certified IP67 weatherproof and IK10 vandal-proof.

Imaging & PTRZ Optics

Image Sensor

Professional 1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

PTRZ Adjustment

Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° (Remote Motorized)

Wide Dynamic Range

150 dB WDR | AI-ISP Enhancement Supported

Min. Illumination

0.0003 lux @ F1.0 (Color); 0.0001 lux @ F1.0 (B/W); 0 lux (Illuminator on)

Lens Type

2.7 mm–12 mm Motorized Vari-focal | F1.0 Constant Aperture

Field of View (H/V/D)

H: 114°–48°; V: 59°–27°; D: 143°–56°

Illumination Range

IR: Up to 60 m (196.85 ft) | Warm light: Up to 50 m (164.04 ft)

High Frame Rate Mode

Main stream: 4MP @ 90 fps / 1080p @ 120 fps

DORI Distance

Lens	Detect	Observe	Recognize	Identify
W (2.7 mm)	67.5 m (221 ft)	27.0 m (88 ft)	13.5 m (44 ft)	6.7 m (21 ft)
T (12 mm)	128.7 m (422 ft)	51.5 m (168 ft)	25.7 m (84 ft)	12.9 m (42 ft)

Elite Intelligence (WizMind)

Xinghan AI Models	Advanced self-learning models for superior target detection and imaging enhancement.
ANPR	License plate recognition for vehicles up to 60km/h. Supports 10k allow/blocklist records.
PPE Detection	Triggers alarms for safety gear: helmets, masks, vests, gloves, shoe covers, etc.
Face Recognition	Face comparison with 5 databases (up to 200,000 pictures). Extraction of 6 attributes & 8 expressions.
Video Metadata	Directional flow statistics for humans, motor vehicles, and non-motor vehicles with attribute extraction.
Perimeter Protection	Intrusion, tripwire, loitering, gathering, parking, stay detection, and abandoned/missing objects.
Privacy Protection	Automatic mosaics/frosted glass over faces, human bodies, and vehicles.

Active Deterrence & Audio

Deterrence Features	Proactive Light Warning and high-decibel Sound Warning.
Audio Hardware	Built-in Dual Microphone \| Built-in Speaker (Max 110dB at 10cm)
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723
Stabilization	Gyroscope Image Stabilization (GIS) & G-sensor Tampering detection.

System Ports

Network Port	RJ-45 (10/100/1000 Base-T) - Gigabit Ethernet
Streaming	5 Streams capability
RS-485 / Analog	1 RS-485 Port \| 1-ch CVBS output (BNC)
Alarm I/O	3-ch Input (Wet/Dry contact) \| 2-ch Output (Dry contact: 1,000 mA 30 VDC)
Local Storage	Micro SD card (supports max. 1 TB)

Power & Durability

Power Supply	12 VDC (±30%) & 24 VAC (±30%) independent port; PoE+ (802.3at); ePoE support
Built-in Heater	Window Heating: Effectively removes frost, snow, and mist for all-weather clarity.
Power Consumption	Basic: 7.5 W (12 VDC); 9.48 W (PoE) Max (Heater + AI + IR): 19 W (12 VDC); 23.8 W (PoE)
Environment	–40 °C to +65 °C (–40 °F to +149 °F) \| Humidity ≤95% (RH)
Durability Rating	IP67 Weatherproof \| IK10 Vandal-proof
