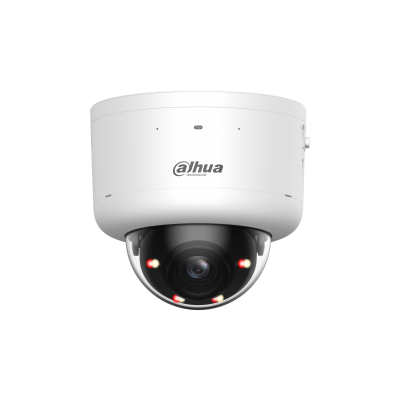

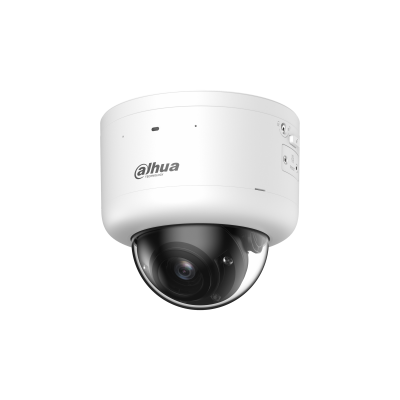

Dahua IPC-HDBW7459Z-Z4-PV-X 4MP WizMind PTRZ Dome Camera, 150dB WDR, 90fps, Active Deterrence & ANPR

Name: Dahua IPC-HDBW7459Z-Z4-PV-X 4MP WizMind PTRZ Dome Camera, 150dB WDR, 90fps, Active Deterrence & ANPR
Brand: Dahua
SKU: IPC-HDBW7459Z-Z4-PV-X

In stock

SKU: IPC-HDBW7459Z-Z4-PV-X

Request a Quote

Product variants

Request a Quote

Tell us your quantity and delivery destination for a confirmed quote.

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

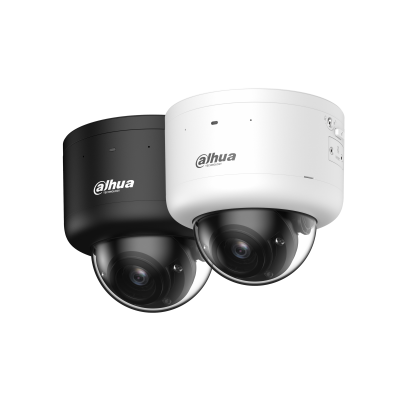

Dahua IPC-HDBW7459Z-Z4-PV-X 4MP Smart Dual Light PTRZ Active Deterrence WizMind Network Dome Camera

PTRZ Ultimate Performance Highlights

Full PTRZ Remote Adjustment: Motorized Pan, Tilt, Rotation, and Zoom control allows for total remote alignment after installation, significantly enhancing operational efficiency.
Liquid-Smooth 90fps Video: Captures at up to 4MP @ 90 fps and 1080p @ 120 fps, providing unparalleled clarity for high-speed tracking and precision scene analysis.
150dB Ultra-WDR & AI-ISP: The combination of 150dB dynamic range and AI-ISP technology ensures crystal-clear imaging in the most extreme high-contrast backlighting.
Proactive Active Deterrence: Features Red/Blue light warning and a high-power speaker (110dB) to stop intruders. Supports secure real-time talk with built-in dual Mic.
Elite Intelligence Suite: Powered by Xinghan Vision Models, featuring ANPR (up to 60km/h), PPE Detection (helmets, vests, etc.), Face Recognition, and Parking Space Management.
Extreme Cold Resilience: Built-in Window Heater to instantly clear ice and mist. Certified IP67 weatherproof and IK10 vandal-proof.

Imaging & PTRZ Optics

Image Sensor

Professional 1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

PTRZ Adjustment

Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° (Remote Motorized)

Wide Dynamic Range

150 dB WDR | AI-ISP Enhancement Supported

Min. Illumination

0.0006 lux @ F1.6 (Color); 0.0002 lux @ F1.6 (B/W); 0 lux (Lights on)

Lens Technology

8 mm–32 mm Motorized Vari-focal | P-Iris Precision Control

Illumination Distance

IR: Up to 120 m (393.70 ft) | Warm light: Up to 80 m (262.47 ft)

High Frame Rate Mode

Main stream: 4MP @ 90 fps / 1080p @ 120 fps

DORI Distance

Lens	Detect	Observe	Recognize	Identify
W (8 mm)	154.5 m (506 ft)	61.8 m (202 ft)	30.9 m (101 ft)	15.4 m (50 ft)
T (32 mm)	389.0 m (1276 ft)	155.6 m (510 ft)	77.8 m (255 ft)	38.9 m (127 ft)

Elite Intelligence (WizMind)

Xinghan AI Models	Optimized detection and imaging via large-scale self-learning AI models.
ANPR	License plate recognition for vehicles up to 60km/h. Up to 10k allow/blocklist records.
PPE Detection	Triggers alarms for helmets, uniforms, masks, gloves, vests, goggles, and aprons.
Face Recognition	Supports 5 face databases (up to 200k images). Face attributes extraction (6 attributes/8 expressions).
Video Metadata	Attributes for motor vehicles (Logo, smoking, calling), non-motor vehicles, and human bodies.
Perimeter Protection	Intrusion, tripwire, fast moving, loitering, gathering, parking, stay, and abandoned/missing objects.
Privacy Protection	Automatic masks/frosted glass for faces, bodies, and vehicles.

Active Deterrence & Audio

Deterrence Features	Red/Blue Light Warning + high-decibel Sound Warning (110dB).
Audio Hardware	Built-in Dual Microphone \| Built-in Speaker (Max 110dB at 10cm)
Stabilization	Gyroscope Image Stabilization (GIS) & G-sensor Tampering detection.
Streaming capability	5 Streams for diverse application needs.

Power & Durability

Power Supply	12 VDC (±30%) & 24 VAC (±30%) independent port; PoE+ (802.3at); ePoE support
Built-in Heater	Window Heating: Removes frost, ice, and mist automatically for clear images.
Power Consumption	Basic: 7.5 W (12 VDC); 9.48 W (PoE) Max (Heater + AI + IR): 19 W (12 VDC); 23.8 W (PoE)
Durability Rating	IP67 Weatherproof \| IK10 Vandal-proof
Operating Conditions	–40 °C to +65 °C (–40 °F to +149 °F) \| Humidity ≤95% (RH)

Structure

Casing Material	Professional Metal
Product Dimensions	150 mm × Φ159 mm (5.91" × Φ6.26")
System Connectivity	RJ-45 (Gigabit Ethernet) \| 1x RS-485 \| 1-ch CVBS (BNC) \| 3-ch Alarm In / 2-ch Out \| 12 VDC Output
Weight	Net Weight: 1.4 kg (3.09 lb) \| Gross Weight: 1.9 kg (4.19 lb)
