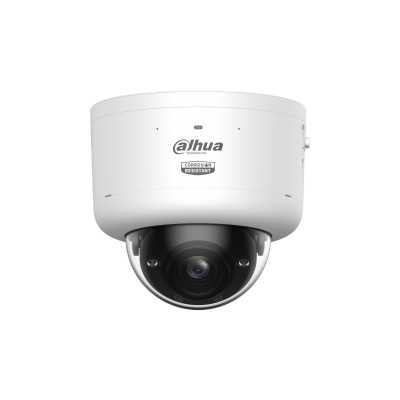

Dahua IPC-HDBW7859Z-Z4-PV-X-ATC 8MP Anti-Corrosion PTRZ Dome Camera, 60fps/120fps, 140dB WDR, Built-in Dual Mic & Speaker, NEMA 4X
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua IPC-HDBW7859Z-Z4-PV-X-ATC 8MP Anti‑Corrosion PTRZ Dome WizMind Network Camera – 8‑32mm Zoom, 60fps/120fps, NEMA 4X
PTRZ Dome – Ultra‑High Frame Rate & Professional Anti‑Corrosion
- Dual High Frame Rates: 8MP @ 60fps or 2MP @ 120fps for ultra‑smooth video capture of fast‑moving targets.
- PTRZ Technology: Motorized 8‑32mm P‑Iris zoom with remote Pan (0–355°), Tilt (0–80°), Rotation (0–355°) for effortless adjustment.
- 140dB True WDR & AI‑ISP: Advanced AI‑ISP and 140dB WDR ensure crystal‑clear images in extreme backlight and ultra‑low light (0.0007 lux color).
- Built‑in Dual Mic & High‑Power Speaker: Two‑way talk with 110dB alarm output – instant sound + warm light alerts to deter intruders.
- G‑sensor Gyroscope Image Stabilization (GIS): Eliminates vibration‑induced blur; also detects tampering events.
- Professional Anti‑Corrosion (NEMA 4X): UL 50E certified for chemical plants, docks, coastlines (up to 2km from sea) and acid rain areas.
- 10+ Simultaneous AI Functions: Face recognition (200,000 faces), PPE detection, ANPR, people counting, heat map, video metadata, AcuPick – supports dual intelligent functions at once (e.g. face detection + people counting, PPE + perimeter).
Camera Specification
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 3840 × 2160 (8MP 4K) |
| ROM / RAM | Not specified (standard WizMind high‑performance AI architecture) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0007 lux @ F1.6 (Color, 30 IRE); 0.0003 lux (B/W); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance / Type | IR up to 80 m, warm light up to 60 m (4 multi‑core IR+warm LEDs); Smart Dual Light with 3 modes |
| Angle Adjustment | Pan: 0–355°; Tilt: 0–80°; Rotation: 0–355° (remote PTRZ control) |
Lens & DORI Optics
| Lens Type / Mount | Motorized vari-focal (Module mount) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focal Length / Aperture | 8 mm–32 mm (4x optical zoom) | F1.6 | |||||||||||||||
| Iris Control Type | Auto (P‑Iris) | |||||||||||||||
| Field of View | H: 41°–15°, V: 22°–9°, D: 47°–18° | |||||||||||||||
| Close Focus Distance | 1 m (3.28 ft) | |||||||||||||||
| DORI Distance |
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.
|
Elite Intelligence (WizMind)
| Dual AI Simultaneous Enable | Face detection + people counting; face recognition + people counting; PPE + perimeter; PPE + face detection; PPE + face recognition |
|---|---|
| IVS Perimeter Protection | Intrusion, tripwire, fast moving (human/vehicle/animal classification), loitering, gathering, parking, stay detection, abandoned/missing object. Large‑scale AI models reduce false alarms, privacy protection. |
| Face Recognition | General mode + Counting mode. 6 attributes + 8 expressions. Supports 5 face databases, up to 200,000 faces. Privacy protection (mosaic/frosted glass). |
| PPE Detection | Helmets, hats, uniforms, masks, gloves, shoe covers, shoes, safety vests, seatbelts, goggles, aprons. Self‑learning workwear detection. Privacy protection. |
| ANPR & Parking Space Management | License plate, type, color, brand (up to 60 km/h). 10,000 blocklist/allowlist records. Supports outdoor parking space management. |
| Video Metadata & People Counting | Motor vehicle, non‑motor vehicle, face, human body attributes. Directional flow statistics, queue management, heat map. Privacy protection for faces/bodies/vehicles. |
| AcuPick & Smart Search | Deep learning target matching with back‑end NVR for rapid live/recorded video search. |
Video & Audio Specifications
| Video Compression / AI Coding | H.265; H.264; H.264H; H.264B; MJPEG (sub stream) | AI H.265/AI H.264 (Smart H.265+/H.264+) |
|---|---|
| Streaming Capability | 5 streams (main, sub, third, fourth, fifth) |
| Resolution | 8M (3840×2160), 6M, 5M, 4M, 3M, 1080p, 720p, D1, CIF |
| Video Frame Rate |
Default: Main 8MP @ 25/30 fps; Sub/Third/Fourth 1080p @ 25/30 fps; Fifth D1 @ 25/30 fps High Frame Rate Mode: Main 8MP @ 50/60 fps or 1080p @ 100/120 fps |
| Bit Rate Control / Range | VBR, CBR, ABR | H.264: 32–10240 kbps; H.265: 12–10240 kbps |
| WDR & Image Enhancements | 140 dB True WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; Smart Illumination |
| Special Features | Gyroscope Image Stabilization (GIS); G‑sensor tampering detection; Image Rotation; Privacy Masking (4 mosaics + 8 color blocks) |
| Audio Features |
Built-in Dual Mic + Built-in Speaker (max 110dB @ 10cm, 2W) Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723 External: 1‑ch RCA input, 1‑ch RCA output |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100/1000 Base-T) Gigabit Ethernet |
|---|---|
| Network Protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; DoLynk Cloud; Auto Registration |
| Interoperability / Browser | ONVIF (Profile S/G/T/M); CGI | IE11+, Chrome 100+, Firefox 47+ |
| Local Storage | Micro SD card (max. 1 TB); FTP; SFTP; NAS |
| Cybersecurity | Trusted boot/execution/upgrade; Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; AES 256; TPM 2.0 (FIPS 140-2 level 2); SSL/TLS1.3; Session security |
| Management Software | SmartPSS Lite; DSS; DMSS | iOS & Android |
Physical I/O Interfaces
| RS-485 | 1 port (1200–115200 bps) |
|---|---|
| Audio I/O | 1‑ch RCA input, 1‑ch RCA output (in addition to built‑in dual mic & speaker) |
| Alarm I/O | 3 alarm inputs (wet/dry contact), 2 alarm outputs (dry contact, 1000 mA 30 VDC / 500 mA 50 VAC) |
| Analog Output | 1 channel CVBS (BNC) |
| Power Output | 12 VDC, max 165 mA (peak 700 mA) |
| Alarm Events | Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, fast moving, abandoned/missing object, loitering, parking, scene changing, audio detection, defocus, face detection/recognition, ANPR, people counting, PPE, video metadata, parking space management, etc. |
Power, Climate & Protection
| Power Supply | 12 VDC (±30%), 24 VAC (±30%), PoE+ (802.3at); Dual Power Backup (hot‑swap without restart) |
|---|---|
| Heater (Window Heating) | Yes – removes water, ice, snow, mist for clear image |
| Power Consumption | Basic: 7.5 W (12 VDC), 8.87 W (24 VAC), 9.48 W (PoE) Max (ICR + IR full): 19 W (12 VDC), 22.5 W (24 VAC), 23.8 W (PoE) Heating: 2 W (12 VDC), 2.4 W (24 VAC), 2.6 W (PoE) |
| Operating Temperature / Humidity | –40 °C to +65 °C (–40 °F to +149 °F) | ≤95% RH (non‑condensing) |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal‑proof) |
| Anti‑corrosion Level | Professional Protection – UL 50E NEMA Type 4X certified. Ideal for chemical plants, docks, coastlines (up to 2 km from sea), and acid rain areas. |
Physical Structure
| Casing Material | Metal (casing) |
|---|---|
| Product Dimensions | 150 mm × Φ159 mm (5.91" × Φ6.26") (H × D) |
| Net Weight / Gross Weight | 1.4 kg (3.09 lb) / 1.9 kg (4.19 lb) |
