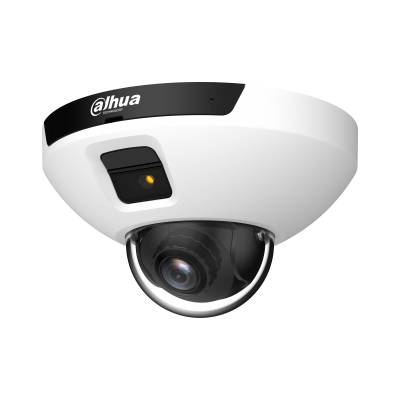

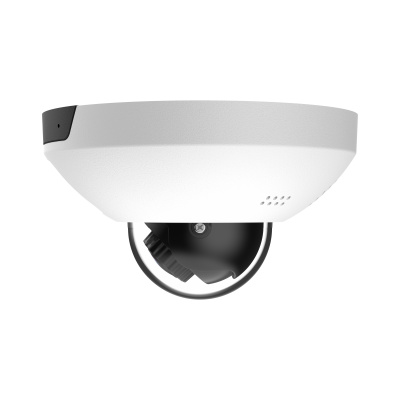

Dahua IPC-HDPW5441C-AS-PV 4MP IR Fixed‑focal Dome WizMind Elevator Camera – 2.1mm Ultra‑Wide, Air Pressure Sensor, Built‑in Mic & Speaker

Elevator‑Dedicated Camera with Air Pressure Sensor & Comprehensive Detection

Built‑in Air Pressure Sensor: Precisely identifies floor numbers – ideal for multi‑story elevator monitoring and emergency response.
Comprehensive Elevator Status Detection: Monitors door state, speed, attitude (inclination), temperature, brightness, faults, repeated opening/closing, people trapped, and moped intrusion.
4MP High‑Quality Imaging: 2688×1520 resolution from 1/2.9" CMOS. 2.1mm F1.6 ultra‑wide lens with 130° horizontal FOV – covers the entire elevator cabin.
People Counting & Face Detection: Real‑time passenger counting (tripwire/area/queue) with report export (day/month/year). Face detection with 6 attributes and 8 expressions.
Built‑in Dual Mic & Speaker: Secure two‑way talk and audio alarm broadcast. Supports siren and light active deterrence.
120dB True WDR & Smart Illumination: 1 IR LED + 1 warm LED provides up to 10m illumination; WDR ensures clear images even in backlit elevator environments.
Compact & Durable: Metal+plastic casing, Φ106mm compact size, wide operating temperature -40°C to +50°C, rich interfaces (RS-485, 4x alarm in, 1x alarm out, 12V power output).

Camera Specification

Image Sensor	1/2.9" CMOS
Max. Resolution	2688 × 1520 (4MP)
ROM / RAM	256 MB / 512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.005 lux @ F1.6 (Color, 30 IRE); 0.0005 lux (B/W); 0 lux (illuminator on)
S/N Ratio	>56 dB
Illumination Distance / Type	IR up to 10 m (1 IR LED + 1 warm LED) \| Auto control
Angle Adjustment	Pan: –20° to 20°, Tilt: 0° to 65°

Lens & DORI Optics

Lens Type / Mount	Fixed-focal (M12 mount) – 2.1mm
Max. Aperture	F1.6
Iris Control	Fixed
Field of View	H: 130°, V: 69°, D: 155°
Close Focus Distance	0.8 m (2.62 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.1 mm	50.6 m (166 ft)	20.2 m (66 ft)	10.1 m (33 ft)	5.1 m (17 ft)

*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.

Elite Intelligence (WizMind) – Elevator Specialized

Air Pressure Sensor	Built‑in sensor enables precise floor number identification – outputs real‑time floor information for elevator monitoring systems.
Elevator Status Detection	Speed detection, attitude (inclination) detection, temperature detection, brightness detection, fault detection, repeated opening/closing, people trapped detection, moped/e‑bike intrusion detection (ToF occlusion).
Face Detection	6 attributes (gender, age, glasses, expressions, mask, beard) + 8 expressions. Snapshot optimization, face enhancement, angle filter.
People Counting	Tripwire counting, area counting, queue management. Report export (day/month/year). 4 rules configurable.
Smart Search	Works with Smart NVR for refined intelligent search and event extraction.

Video & Audio Specifications

Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart Codec	Not specified – standard H.265/H.264 provided
Stream Capability	3 streams (main, sub, third)
Resolution	4M (2688×1520/2560×1440), 3M, 1080p, 720p, D1, CIF, VGA
Video Frame Rate	Main: 4MP @ 25/30 fps; Sub: D1 @ 25/30 fps; Third: 1080p @ 25/30 fps
Bit Rate Control / Range	VBR, CBR \| H.264/H.265: 3–16384 kbps
WDR & Image Enhancements	120 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; LDC
Audio Features	Built-in Mic + Built-in Speaker (two‑way talk) Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723 (External audio I/O not specified)

Network, Storage & Cybersecurity

Physical I/O Interfaces

Network Port	RJ-45 (10/100 Base-T – Fast Ethernet)
Network Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; PPPoE; SNMP; P2P; Bonjour; Auto Registration
Interoperability / Browser	ONVIF (Profile S/G/T); CGI \| IE8/9/11, Chrome, Firefox
Local Storage	Micro SD card (max. 256 GB); FTP; SFTP; NAS
Cybersecurity	Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; X.509 certification.
Management Software	Not specified (compatible with DSS, DMSS, etc.)

Power, Climate & Protection

RS-485	1 port (1200–115200 bps)
Audio I/O	Not specified (built‑in only)
	Alarm I/O	4 alarm inputs (wet contact, 5 mA 3–5 VDC) 1 alarm output (dry contact, 1000 mA 30 VDC / 500 mA 50 VAC)
Analog Output	Not specified
Power Output	12 VDC, max 165 mA (peak 700 mA)
Alarm Events	Elevator‑specific events: ToF occlusion (moped intrusion), repeated opening/closing, people trapped detection, door status, speed, attitude, temperature, brightness, fault; plus standard events: SD card errors, network issues, motion, tampering, scene changing, audio detection, voltage, external alarm, face detection, people counting, etc.

Physical Structure

Power Supply	12 VDC (±?), PoE (802.3af)
Power Consumption	Basic: 3.3 W (12 VDC), 4.2 W (PoE) Max (H.265 + IR + WDR + AI + siren/light): 6.6 W (12 VDC), 7.5 W (PoE)
Operating Temperature / Humidity	–40 °C to +50 °C (–40 °F to +122 °F) \| ≤95% RH (non‑condensing)
Storage Temperature / Humidity	–40 °C to +50 °C, ≤95% RH
	Protection Rating	Not specified (basic indoor elevator installation)
Anti‑corrosion Level	Basic Protection

Casing Material	Metal + plastic
Product Dimensions	62 mm × Φ106 mm (2.44" × Φ4.17") (H × D)
Net Weight / Gross Weight	0.33 kg (0.73 lb) / 0.45 kg (0.99 lb)
