Dahua

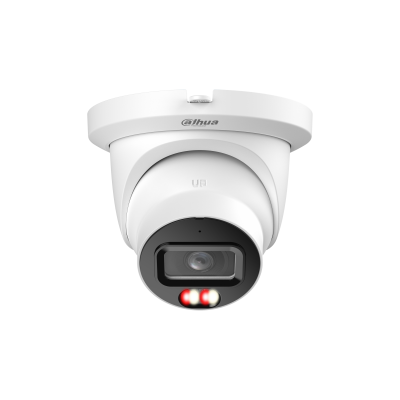

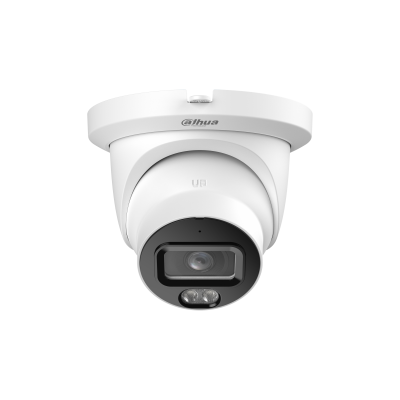

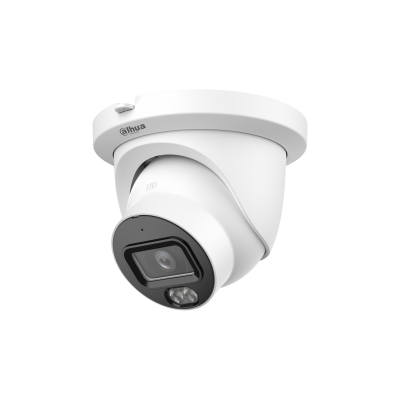

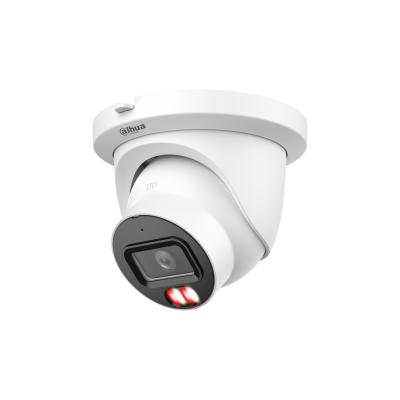

Dahua IPC-HDW5559TM-ASE-IL 5MP Smart Dual Light Fixed-focal Eyeball WizMind Network Camera, 120dB WDR, Built-in Mic, IP67

Name: Dahua IPC-HDW5559TM-ASE-IL 5MP Smart Dual Light Fixed-focal Eyeball WizMind Network Camera, 120dB WDR, Built-in Mic, IP67
Brand: Dahua
Price: 10000.00 USD
Availability: InStock

In stock

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua IPC-HDW5559TM-ASE-IL 5MP Smart Dual Light Fixed‑focal Eyeball WizMind Network Camera

5MP Eyeball Camera with Xinghan Vision Models & Smart Dual Light

High‑Quality 5MP Imaging: 2960×1668 resolution delivers exceptional clarity. Available with 2.8mm, 3.6mm, or 6mm fixed lens.
Xinghan Vision Models: Comprehensive enhancement of target detection and imaging – longer detection distance and better recognition.
Smart Dual Light: 2 multi‑core IR+warm LEDs provide both IR and warm light up to 50m (164 ft) with 3 illumination modes.
120dB True WDR & AI Coding: 120dB WDR ensures clear details in strong backlight; AI H.265/H.264 (Smart H.265+/H.264+) reduces bandwidth and storage.
7+ AI Functions: Perimeter protection (IVS), SMD 4.0, AcuPick, face detection, people counting, heat map, and video metadata – supports multiple intelligent functions simultaneously.
Built-in Microphone & Sound Alarm: Real‑time audio security with 11 pre‑set and 10 customizable sound alarms (adjustable volume and play times).
Rugged IP67 Design: Metal casing, operating temperature -40°C to +60°C (–40°F to +140°F), ideal for harsh environments.

Camera Specification

Image Sensor	1/2.7" CMOS
Max. Resolution	2960 × 1668 (5MP)
ROM / RAM	4 GB / 2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0009 lux @ F1.6 (Color, 30 IRE); 0.0005 lux (B/W); 0 lux (illuminator on)
S/N Ratio	>56 dB
Illumination Distance / Type	IR up to 50 m, warm light up to 50 m (2 multi‑core IR+warm LEDs); Smart Dual Light with 3 modes
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–80°, Rotation: 0°–360°

Lens & DORI Optics

Elite Intelligence (WizMind)

Lens Type / Mount

Fixed-focal (M12 mount)

Focal Length Options / Aperture

2.8 mm, 3.6 mm, or 6 mm | F1.6 (fixed iris)

Field of View

2.8mm: H: 108.4°, V: 60°, D: 127.1°
3.6mm: H: 90.3°, V: 47.8°, D: 108.6°
6mm: H: 56°, V: 30.3°, D: 65.4°

Close Focus Distance

2.8mm: 1 m (3.28 ft); 3.6mm: 1.5 m (4.92 ft); 6mm: 3.2 m (10.50 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	61.6 m (202 ft)	24.6 m (81 ft)	12.3 m (40 ft)	6.2 m (20 ft)
3.6 mm	78.0 m (256 ft)	31.2 m (102 ft)	15.6 m (51 ft)	7.8 m (26 ft)
6 mm	124.0 m (407 ft)	49.6 m (163 ft)	24.8 m (81 ft)	12.4 m (41 ft)

*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.

AI Functions	Perimeter protection (IVS), SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata
IVS Perimeter Protection	Intrusion, tripwire, fast moving (human/vehicle/animal classification), loitering, gathering, parking detection, stay detection. Large‑scale AI models extend detection range and reduce false alarms. Supports self‑learning.
SMD 4.0	Smart Motion Detection – filters out false alarms caused by environmental changes.
AcuPick	Deep learning target matching with back‑end NVR for rapid live/recorded video search.
Face Detection	6 attributes (gender, age, glasses, expressions, mask, beard) + 8 expressions. Snapshot optimization, face enhancement, angle filter.
People Counting & Heat Map	Tripwire counting, area counting, queue management, report export (day/week/month/year). Heat map supported.
Video Metadata	Motor vehicle (6 attributes), non‑motor vehicle (6 attributes), face (6 attributes), human body (8 attributes).

Video & Audio Specifications

Video Compression / AI Coding	H.265; H.264; H.264H; H.264B; MJPEG (sub stream) \| AI H.265 / AI H.264 (Smart H.265+/H.264+)
Streaming Capability	4 streams (main, sub, third, fourth)
Resolution	5M (2960×1668/2880×1620), 4M, 3M, 1080p, 720p, D1, VGA, CIF
Video Frame Rate	Main: 2960×1668 @ 25/30 fps; Sub: D1 @ 25/30 fps; Third: 1080p @ 25/30 fps; Fourth: 720p @ 25/30 fps
Bit Rate Control / Range	VBR, CBR \| H.264/H.265: 3–16384 kbps
WDR & Image Enhancements	120 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; Smart Illumination; LDC
Audio Features	Built-in Microphone (no speaker) Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723 External: 1‑ch RCA input, 1‑ch RCA output

Network, Storage & Cybersecurity

Network Port	RJ-45 (10/100 Enhancement Base-T – Fast Ethernet)
Network Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability / Browser	ONVIF (Profile S/G/T/M); CGI \| IE11+, Chrome 102+, Firefox 88+
Local Storage	Micro SD card (max. 1 TB); FTP; SFTP; NAS
Cybersecurity	Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; X.509 certification.
Management Software	DSS; DMSS; DoLynk Care \| iOS & Android

Physical I/O Interfaces

RS-485	Not specified
Audio I/O	1‑ch RCA input, 1‑ch RCA output (in addition to built‑in microphone)
Alarm I/O	1 alarm input (wet contact, 5 mA 3–5 VDC) 1 alarm output (wet contact, 300 mA 12 VDC)
Analog Output	Not specified
Power Output	Not specified
Alarm Events	Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, fast moving, loitering, parking, scene changing, audio detection, voltage detection, defocus, face detection, SMD, people counting, queue alarms, etc.

Power, Climate & Protection

Power Supply	12 VDC (±30%), PoE+ (802.3at), ePoE; Dual Power Backup (hot‑swap without restart)
Power Consumption	Basic: 4.2 W (12 VDC), 6.3 W (PoE) Max (H.265 + WDR + warm light + AI on): 13.3 W (12 VDC), 15.6 W (PoE)
Operating Temperature / Humidity	–40 °C to +60 °C (–40 °F to +140 °F) \| ≤95% RH (non‑condensing)
Storage Temperature / Humidity	–40 °C to +60 °C, ≤95% RH
Protection Rating	IP67 (weatherproof)
Anti‑corrosion Level	Not specified (standard protection)
