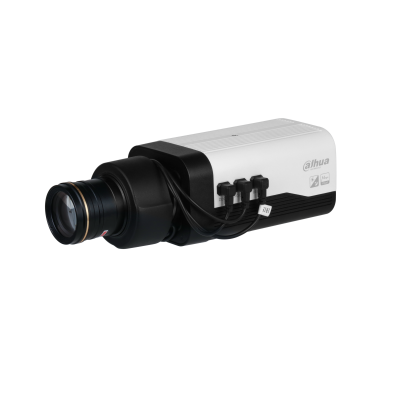

Dahua IPC-HF7442F-Z-X 4MP WizMind BOX Network Camera, 150dB WDR, 60fps, ANPR & PPE Detection

Name: Dahua IPC-HF7442F-Z-X 4MP WizMind BOX Network Camera, 150dB WDR, 60fps, ANPR & PPE Detection
Brand: Dahua
SKU: IPC-HF7442F-Z-X
Price: 10000.00 USD
Availability: InStock

In stock

SKU: IPC-HF7442F-Z-X

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua IPC-HF7442F-Z-X 4MP BOX WizMind Network Camera with 150dB WDR, 60fps & AI-ISP

Ultimate Performance Highlights

Professional 4MP @ 60fps: Delivers liquid-smooth high-speed video capture for critical detail monitoring and smoothness.
150dB Ultra-WDR & AI-ISP: Industry-leading wide dynamic range and AI-enhanced image signal processing ensure flawless clarity in extreme backlight or ultra-low light (0.0005 lux).
Xinghan Vision Models & Time-Division Exposure: Advanced AI models extend detection distance and capture moving targets (people/vehicles) at varying speeds with perfect exposure.
Elite Intelligence Suite: Built-in ANPR (License plate recognition), PPE Detection (helmets, vests, etc.), Face Recognition (200,000 capacity), and Video Metadata extraction.
Versatile Interface: Rich connectivity with 2/2 Alarm I/O, 2/1 Audio I/O, RS-485, BNC analog output, and support for massive 1TB Micro SD storage.
Enterprise Efficiency: Supports 5 simultaneous video streams for complex monitoring needs and diverse application scenarios.

Camera Specification

Image Sensor	1/1.8" CMOS (Large Format)
Max. Resolution	2688 (H) × 1520 (V)
ROM / RAM	8 GB / 4 GB (Maximum Hardware Capacity)
Min. Illumination	0.0005 lux @ F1.2 (Color, 30 IRE) 0.0002 lux @ F1.2 (B/W, 30 IRE)
Electronic Shutter	Auto/Manual 1/3 s–1/100,000 s
S/N Ratio	> 56 dB

Lens Interface

Lens Mount	C / CS Mount (Lens sold separately)
Iris Control Type	DC-Iris; P-Iris (Precision Iris)

Elite Intelligence (WizMind)

ANPR	License plate recognition (up to 60km/h), vehicle type/color recognition, 10,000 allow/blocklist records.
PPE Detection	Triggers alarms for: Helmets, hats, uniforms, masks, gloves, shoe covers, safety vests, seatbelts. Supports self-learning.
Face Recognition	Supports 5 face databases (up to 200,000 pictures). Comparison with extraction of 6 attributes & 8 expressions.
Video Metadata	Attributes for motor vehicles (Smoking, calling, logo), non-motor vehicles, and human bodies (Bag, hat, gender).
Perimeter Protection	Intrusion, tripwire, fast moving. Supports classification of human, vehicle, and animal with self-learning filters.
Advanced Stats	Flow statistics (People/Vehicles), Area Counting, Queue Management, Heat Map, Parking Space Management.
Privacy Protection	Automatic masks for faces and bodies with adjustable mosaic grain size.

Video & Audio

Compression / Smart Codec	H.265; H.264; H.264H; H.264B; MJPEG \| Smart H.265+ & H.264+
Video Frame Rate	Main stream: 2688 × 1520 @ (1–50/60 fps) Sub streams: Supports up to 5 total streams.
WDR / Noise Reduction	150 dB Ultra-WDR \| 3D NR
Image Enhancement	AI-ISP Technology, Time-Division Exposure, EIS, SSA, Defog, Mirror, LDC.
Audio Hardware	Built-in Microphone \| 2-ch Input (3.5mm), 1-ch Output (3.5mm)

System & Network

Network Port	RJ-45 (10/100/1000 Base-T) - Gigabit Ethernet
Storage	FTP; SFTP; Micro SD card (support max. 1 TB); NAS
Interoperability / Browser	ONVIF (Profile S/G/T/M); CGI \| IE 11+, Chrome 88+, Firefox 47+
Management Software	SmartPSS Lite; DSS; DMSS
Cybersecurity	Trusted execution/boot; Security logs; IP/MAC filtering; HTTPS; 802.1x; X.509 certification.

Hardware Ports

RS-485	1 Port (Baud rate range: 1200 bps–115200 bps)
Alarm I/O	2-ch Alarm Input \| 2-ch Alarm Output (1,000mA 30V DC)
Analog Output	1-ch CVBS output (BNC)
Power Output	12 VDC power output (max current 165 mA, peak 700 mA)

Power & Environment

Power Supply	12 VDC / 24 VAC / PoE+ (802.3at) / ePoE support
Power Consumption	Basic: 8.4 W (12 VDC); 6.3 W (PoE) Max (WDR + AI): 17.1 W (12 VDC); 15 W (PoE)
Environment	Operating: –30 °C to +60 °C (–22 °F to +140 °F) \| Humidity ≤95%

Structure

Casing Material	Metal + Plastic
Product Dimensions	161.6 mm × 86.8 mm × 74 mm (6.36" × 3.42" × 2.91")
Weight	Net Weight: 0.80 kg (1.76 lb) \| Gross Weight: 1.02 kg (2.25 lb)
