Dahua

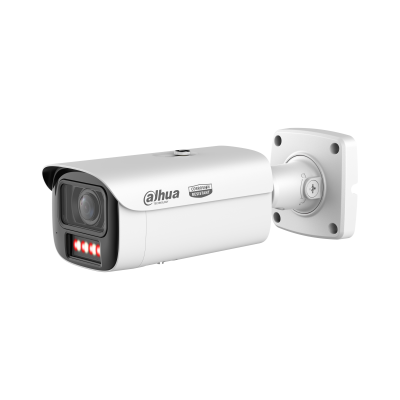

Dahua IPC-HFW5459E1-ZHE-IL-ATC 4MP Anti-Corrosion Bullet Network Camera

Name: Dahua IPC-HFW5459E1-ZHE-IL-ATC 4MP Anti-Corrosion Bullet Network Camera
Brand: Dahua
SKU: IPC-HFW5459E1-ZHE-IL-ATC
Price: 10000.00 USD
Availability: InStock

In stock

SKU: IPC-HFW5459E1-ZHE-IL-ATC

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua IPC-HFW5459E1-ZHE-IL-ATC 4MP Smart Dual Light Anti‑corrosion Vari‑focal Bullet WizMind Network Camera – 2.7‑12mm DC-Iris Zoom, 140dB WDR, NEMA 4X

4MP Anti‑corrosion Bullet – Wide‑to‑Standard Zoom, Active Deterrence & Professional Protection

4MP Ultra‑HD Imaging: 2688×1520 resolution from a large 1/1.8" CMOS sensor. Motorized 2.7‑12mm DC-Iris zoom (4.4x) covers wide 115° to standard 47° horizontal FOV.
Xinghan Vision Models: Comprehensive enhancement of target detection and imaging – longer detection distance and better recognition.
Smart Dual Light with Zoomprio: 4 multi‑core IR+warm LEDs. IR up to 60m, warm light up to 60m. Illumination intensity automatically adjusts with zoom position.
140dB True WDR & AI Coding: 140dB WDR ensures clear details in strong backlight; AI H.265/H.264 (Smart H.265+/H.264+) reduces bandwidth and storage.
Built‑in Microphone & Sound Alarm: Real‑time audio security (no speaker). 11 pre‑set + 10 customizable sound alarms for active deterrence.
Advanced AI & AcuPick: IVS perimeter protection (intrusion/tripwire/fast moving with human/vehicle/animal classification), SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata.
Professional Anti‑corrosion (NEMA 4X, C5-H): Metal casing with premium anti‑corrosion protection. Ideal for chemical plants, docks, coastlines (up to 2km from sea), and acid rain areas.
Rugged Vandal‑proof Bullet: IP67 weatherproof, IK10 vandal‑resistant, 3‑axis adjustment (Pan 360°, Tilt 90°, Rotation 360°), operating temperature -40°C to +60°C.

Camera Specification

Image Sensor	1/1.8" CMOS
Max. Resolution	2688 × 1520 (4MP)

ROM / RAM 4 GB / 2 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.0007 lux @ F1.8 (Color, 30 IRE); 0.0004 lux (B/W); 0 lux (illuminator on) S/N Ratio >56 dB Illumination Distance / Type IR up to 60 m, warm light up to 60 m (4 multi‑core IR+warm LEDs); Zoomprio control Angle Adjustment Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Lens & DORI Optics

Elite Intelligence (WizMind)

Lens Type / Mount

Motorized vari-focal (φ14 mount)

Focal Length / Aperture

2.7 mm–12 mm (4.4x optical zoom) | F1.8

Iris Control Type

Auto (DC-Iris)

Field of View

H: 115°–47°, V: 62°–27°, D: 137°–54°

Close Focus Distance

0.13 m (0.43 ft)

DORI Distance

Lens Mode	Detect	Observe	Recognize	Identify
Wide (2.7mm)	57.5 m (189 ft)	23.0 m (75 ft)	11.5 m (38 ft)	5.8 m (19 ft)
Tele (12mm)	130.8 m (429 ft)	52.3 m (172 ft)	26.2 m (86 ft)	13.1 m (43 ft)

*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.

Video & Audio Specifications

AI Functions	IVS perimeter protection, SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata
IVS Perimeter Protection	Intrusion, tripwire, fast moving (human/vehicle/animal classification), loitering, gathering, parking, stay detection. Large‑scale AI models extend detection range and reduce false alarms. Supports self‑learning.
SMD 4.0	Smart Motion Detection – filters out false alarms caused by environmental changes.
AcuPick	Deep learning target matching with back‑end NVR for rapid human/vehicle search.
Face Detection	6 attributes + 8 expressions. Snapshot optimization, face enhancement, angle filter.
People Counting & Heat Map	Tripwire/area/queue counting, report export (day/week/month/year). Heat map supported.
Video Metadata	Motor vehicle (6 attributes), non‑motor vehicle (6 attributes), face (6 attributes), human body (8 attributes).

Network, Storage & Cybersecurity

Video Compression / AI Coding	H.265; H.264; H.264H; H.264B; MJPEG (sub stream) \| AI H.265 / AI H.264 (Smart H.265+/H.264+)
Streaming Capability	4 streams (main, sub, third, fourth)
Resolution	4M (2688×1520/2560×1440), 3M, 1080p, 720p, D1, VGA, CIF
Video Frame Rate	Main: 4MP @ 25/30 fps; Sub: D1 @ 25/30 fps; Third: 1080p @ 25/30 fps; Fourth: 720p @ 25/30 fps
Bit Rate Control / Range	VBR, CBR \| H.264/H.265: 3–16384 kbps
WDR & Image Enhancements	140 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; Smart Illumination; LDC; EIS
Special Features	Image Rotation, Privacy Masking (4 mosaics or 8 color blocks)	Audio Features	Built-in Microphone (no speaker) Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723 External: 1‑ch RCA input, 1‑ch RCA output

Physical I/O Interfaces

Network Port	RJ-45 (10/100 Enhancement Base-T – Fast Ethernet)
Network Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability / Browser	ONVIF (Profile S/G/T/M); CGI \| IE11+, Chrome 102+, Firefox 88+
Local Storage	Micro SD card (max. 1 TB); FTP; SFTP; NAS
Cybersecurity	Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; X.509 certification.
Management Software	DSS; DMSS; DoLynk Care \| iOS & Android

Power, Climate & Protection

RS-485	Not specified
Audio I/O	1‑ch RCA input, 1‑ch RCA output (in addition to built‑in microphone)
Alarm I/O	2 alarm inputs (wet/dry contact), 1 alarm output (wet contact, 300 mA 12 VDC)
Analog Output	Not specified
Power Output	Not specified
Alarm Events	Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, fast moving, loitering, parking, scene changing, audio detection, voltage detection, defocus, face detection, SMD, people counting, queue alarms, etc.

Physical Structure

Power Supply	12 VDC (±30%), PoE+ (802.3at), ePoE; Dual Power Backup (hot‑swap without restart)
Power Consumption	Basic: 3.7 W (12 VDC), 5 W (PoE) Max (IR on + WDR + AI on): 12.9 W (12 VDC), 16.1 W (PoE)
Operating Temperature / Humidity	–40 °C to +60 °C (–40 °F to +140 °F) \| ≤95% RH (non‑condensing)
Storage Temperature / Humidity	–40 °C to +60 °C, ≤95% RH
Protection Ratings	IP67 (weatherproof), IK10 (vandal‑proof)
Anti‑corrosion Level	Professional Protection – NEMA 4X, C5‑H certified. Ideal for chemical plants, docks, coastlines (up to 2 km from sea), and acid rain areas.

Casing Material	Metal
Product Dimensions	279.8 mm × 96.7 mm × 94.9 mm (11.02" × 3.81" × 3.74") (L×W×H)
Net Weight / Gross Weight	1.09 kg (2.40 lb) / 1.39 kg (3.06 lb)
