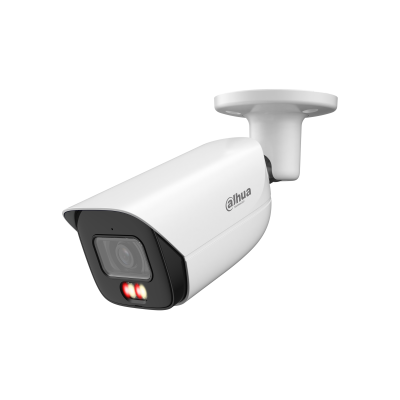

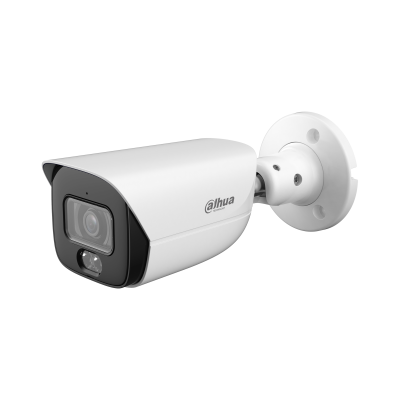

Dahua IPC-HFW5559E-ASE-IL 5MP 3K Smart Dual Light Bullet Camera, Xinghan AI WizMind
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua IPC-HFW5559E-ASE-IL 5MP Smart Dual Light Fixed-focal Bullet WizMind Network Camera
Key Highlights
- 5MP 3K High-Definition Clarity: Delivers superior 2960 × 1668 imaging powered by a professional 1/2.7" CMOS sensor.
- Xinghan Vision AI Models: Comprehensive enhancement of target detection and imaging. Extends detection distance and drastically reduces false alarms via self-learning AI.
- Smart Dual Light Technology: Features 2 multi-core illuminators supporting up to 50 m (164.04 ft) IR and Warm Light with intelligent full-color switching.
- Built-in Microphone & Audio Security: Features a built-in Mic for real-time audio capture. Supports 11 built-in sound alarms and 10 custom sound uploads.
- Elite Intelligence Suite: Fully supports AcuPick, SMD 4.0, Face Detection (6 attributes/8 expressions), and Video Metadata extraction.
- Professional Protection & ePoE: All-metal casing with IP67 rating. Supports ePoE long-distance transmission and Dual Power Backup.
Camera
| Image Sensor | 1/2.7" CMOS |
|---|---|
| Max. Resolution | 2960 (H) × 1668 (V) |
| ROM / RAM | 4 GB / 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0009 lux @ F1.6 (Color, 30 IRE) 0.0005 lux @ F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | IR: Up to 50 m (164.04 ft) Warm light: Up to 50 m (164.04 ft) |
| Illuminator Control / Number | Auto; Manual | 2 (Multi-core IR + warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
Lens
| Lens Type / Mount | Fixed-focal | M12 | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focal Length | 2.8 mm; 3.6 mm; 6 mm | ||||||||||||||||||||
| Max. Aperture / Iris | F1.6 | Fixed Iris | ||||||||||||||||||||
| Field of View (H/V/D) |
2.8 mm: H: 108.4°; V: 60°; D: 127.1° 3.6 mm: H: 90.3°; V: 47.8°; D: 108.6° 6 mm: H: 56°; V: 30.3°; D: 65.4° |
||||||||||||||||||||
| Close Focus Distance | 2.8 mm: 1 m | 3.6 mm: 1.5 m | 6 mm: 3.2 m | ||||||||||||||||||||
| DORI Distance |
|
Intelligence & AI
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (supports human, vehicle, and animal classification); loitering, gathering, parking, and stay detection. Utilizes Large-Scale AI Models for extended range and false alarm filtering. |
|---|---|
| SMD / AcuPick | SMD 4.0 | AcuPick Deep learning algorithms (accurately matches targets including people, motor vehicles, and animals across video). |
| Face Detection | Face detection, snapshot, snapshot optimization, face enhancement, face exposure. Extracts 6 attributes and 8 expressions. Snapshot strategies: real-time, quality priority, and optimization. |
| People Counting & Heat Map | Tripwire people counting (day/week/month/year reports). Area counting and queue management (day/week/month reports). Supports up to 4 configurable rules. Heat Map supported. |
| Video Metadata | Detection of motor vehicle, non-motor vehicle, face, and human body. Extraction of attributes: 6 for motor vehicles, 6 for non-motor vehicles, 6 for faces, and 8 for human bodies. |
Video
| Video Compression / AI Coding | H.265; H.264; H.264H; H.264B; MJPEG (sub stream only) | AI H.265; AI H.264 (Smart H.265+/Smart H.264+) |
|---|---|
| Video Frame Rate |
Main stream: 2960 × 1668 @ (1 fps–25/30 fps) Sub stream: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps) Third stream: 1920 × 1080 @ (1–25/30 fps) Fourth stream: 1280 × 720 @ (1–25/30 fps) |
| WDR / SSA / Noise Reduction | 120 dB True WDR | Scene Self-adaptation (SSA) Supported | 3D NR |
| Image Features | BLC, HLC, ROI (4 areas), Smart Illumination, Smart Dual Light, Defog, Mirror, LDC. |
| Image Rotation | 0°/90°/180°/270° (90°/270° supported with 4M resolution and lower) |
| Privacy Masking | 4 mosaics or 8 color blocks |
Audio & Alarm
| Audio Hardware | Built-in Microphone | 1-ch RCA Input, 1-ch RCA Output |
|---|---|
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms (Volume: 0–100, play times: 1–10). |
| Alarm Ports | 1-ch Input (wet contact, 5 mA 3–5 VDC) | 1-ch Output (wet contact, 300 mA 12 VDC) |
Network & Ports
| Network Port / Protocols | RJ-45 (10/100 Enhancement Base-T) | IPv4; IPv6; HTTP; TCP; UDP; RTSP; SMTP; FTP; SFTP; DHCP; NTP; P2P etc. |
|---|---|
| Interoperability / Browser | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI | IE 11+, Chrome 102+, Firefox 88+ |
| Storage Options | FTP; SFTP; Micro SD card (supports max. 1 TB); NAS |
| Cybersecurity | Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 certification; HTTPS; 802.1x; Trusted boot/execution/upgrade. |
Power & Environment
| Power Supply / ePoE | 12 VDC (±30%); PoE+ (802.3at) | ePoE supported |
|---|---|
| Dual Power Backup | Supported (System works without restart when separating adapter and PoE power lines) |
| Power Consumption | Basic: 4.2 W (12 VDC); 6.3 W (PoE) Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6 W (PoE) |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | Humidity ≤95% (RH) |
| Protection Rating | IP67 Weatherproof |
Structure
| Casing Material | Metal |
|---|---|
| Product Dimensions | 192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.78" × 2.61") (L × W × H) |
| Weight | Net Weight: 610 g (1.34 lb) | Gross Weight: 770 g (1.70 lb) |
