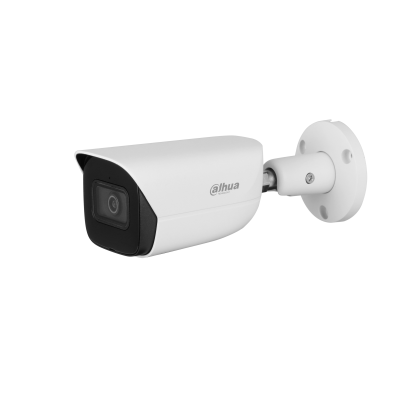

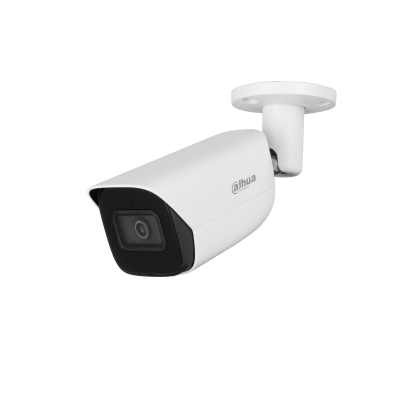

Dahua IPC-HFW5559E-ASE-IL 5MP Smart Dual Light Fixed‑focal Bullet WizMind Network Camera – 2.8/3.6/6mm Lens Options

5MP Fixed‑focal Bullet with Xinghan Vision Models & Smart Dual Light

5MP High‑Quality Imaging: 2960×1668 resolution from 1/2.7" CMOS. Choose from 2.8mm (108°), 3.6mm (90°), or 6mm (56°) fixed lenses, all with F1.6 aperture.
Xinghan Vision Models: Comprehensive enhancement of target detection and imaging – longer detection distance and better recognition.
Smart Dual Light: 2 multi‑core IR+warm LEDs. IR up to 50m, warm light up to 50m. Auto/Manual control.
120dB True WDR & AI Coding: 120dB WDR ensures clear details in strong backlight; AI H.265/H.264 (Smart H.265+/H.264+) reduces bandwidth and storage.
7+ AI Functions: Perimeter protection (IVS), SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata – supports multiple intelligent functions simultaneously.
Built-in Microphone & Sound Alarm: Real‑time audio security with 11 pre‑set and 10 customizable sound alarms (adjustable volume and play times).
Rugged Bullet Design: Metal casing, IP67 weatherproof, IK10 optional, 3‑axis adjustment (Pan 360°, Tilt 90°, Rotation 360°), operating temperature -40°C to +60°C.

Camera Specification

Image Sensor	1/2.7" CMOS
Max. Resolution	2960 × 1668 (5MP)
ROM / RAM	4 GB / 2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0009 lux @ F1.6 (Color, 30 IRE); 0.0005 lux (B/W); 0 lux (illuminator on)
S/N Ratio	>56 dB
Illumination Distance / Type	IR up to 50 m, warm light up to 50 m (2 multi‑core IR+warm LEDs); Smart Dual Light with Auto/Manual control
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Lens & DORI Optics

Physical Structure

Lens Type / Mount

Fixed-focal (M12 mount) – 2.8mm, 3.6mm, or 6mm options

Max. Aperture

F1.6

Iris Control

Fixed

Field of View

2.8mm: H: 108.4°, V: 60°, D: 127.1°
3.6mm: H: 90.3°, V: 47.8°, D: 108.6°
6mm: H: 56°, V: 30.3°, D: 65.4°

Close Focus Distance

2.8mm: 1 m (3.3 ft); 3.6mm: 1.5 m (4.9 ft); 6mm: 3.2 m (10.5 ft)

DORI Distance

*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.

Lens	Detect	Observe	Recognize	Identify
2.8 mm	61.6 m (202 ft)	24.6 m (81 ft)	12.3 m (40 ft)	6.2 m (20 ft)
3.6 mm	78.0 m (256 ft)	31.2 m (102 ft)	15.6 m (51 ft)	7.8 m (26 ft)
6 mm	124.0 m (407 ft)	49.6 m (163 ft)	24.8 m (81 ft)	12.4 m (41 ft)

Elite Intelligence (WizMind)

Video & Audio Specifications

AI Functions	Perimeter protection (IVS), SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata
IVS Perimeter Protection	Intrusion, tripwire, fast moving (human/vehicle/animal classification), loitering, gathering, parking detection, stay detection. Large‑scale AI models extend detection range and reduce false alarms. Supports self‑learning.
SMD 4.0	Smart Motion Detection – filters out false alarms caused by environmental changes.
AcuPick	Deep learning target matching with back‑end NVR for rapid live/recorded video search.
Face Detection	6 attributes (gender, age, glasses, expressions, mask, beard) + 8 expressions. Snapshot optimization, face enhancement, angle filter.
People Counting & Heat Map	Tripwire counting, area counting, queue management, report export (day/week/month/year). Heat map supported.
Video Metadata	Motor vehicle (6 attributes), non‑motor vehicle (6 attributes), face (6 attributes), human body (8 attributes).

Network, Storage & Cybersecurity

Video Compression / AI Coding	H.265; H.264; H.264H; H.264B; MJPEG (sub stream) \| AI H.265 / AI H.264 (Smart H.265+/H.264+)
Streaming Capability	4 streams (main, sub, third, fourth)
Resolution	5M (2960×1668/2880×1620), 4M, 3M, 1080p, 720p, D1, VGA, CIF
Video Frame Rate	Main: 5MP @ 25/30 fps; Sub: D1 @ 25/30 fps; Third: 1080p @ 25/30 fps; Fourth: 720p @ 25/30 fps
Bit Rate Control / Range	VBR, CBR \| H.264/H.265: 3–16384 kbps
WDR & Image Enhancements	120 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; Smart Illumination; LDC
Special Features	Image Rotation, Privacy Masking (4 mosaics or 8 color blocks)
Audio Features	Built-in Microphone (no speaker) Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723 External: 1‑ch RCA input, 1‑ch RCA output

Physical I/O Interfaces

Network Port	RJ-45 (10/100 Enhancement Base-T – Fast Ethernet)
	Network Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability / Browser	ONVIF (Profile S/G/T/M); CGI \| IE11+, Chrome 102+, Firefox 88+
Local Storage	Micro SD card (max. 1 TB); FTP; SFTP; NAS
Cybersecurity	Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; X.509 certification.
Management Software	DSS; DMSS; DoLynk Care \| iOS & Android

Power, Climate & Protection

RS-485	Not specified
Audio I/O	1‑ch RCA input, 1‑ch RCA output (in addition to built‑in microphone)
Alarm I/O	1 alarm input (wet contact, 5 mA 3–5 VDC) 1 alarm output (wet contact, 300 mA 12 VDC)
Analog Output	Not specified
Power Output	Not specified
Alarm Events	Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, fast moving, loitering, parking, scene changing, audio detection, voltage detection, defocus, face detection, SMD, people counting, queue alarms, etc.

Power Supply	12 VDC (±30%), PoE+ (802.3at), ePoE; Dual Power Backup (hot‑swap without restart)
Power Consumption	Basic: 4.2 W (12 VDC), 6.3 W (PoE) Max (H.265 + WDR + warm light + AI on): 13.3 W (12 VDC), 15.6 W (PoE)
Operating Temperature / Humidity	–40 °C to +60 °C (–40 °F to +140 °F) \| ≤95% RH (non‑condensing)

Storage Temperature / Humidity

–40 °C to +60 °C, ≤95% RH

Protection Ratings

IP67 (weatherproof); IK10 (optional, vandal‑proof)

Anti‑corrosion Level

Not specified (basic protection assumed)

Casing Material	Metal
Product Dimensions	192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.78" × 2.61") (L×W×H)
Net Weight / Gross Weight	610 g (1.34 lb) / 770 g (1.70 lb)
