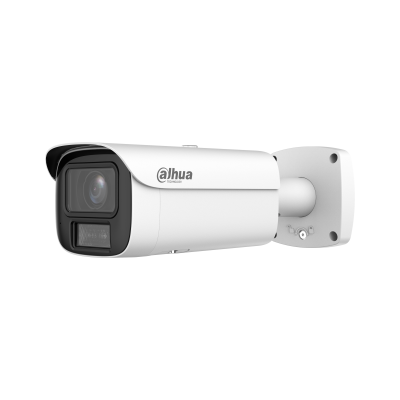

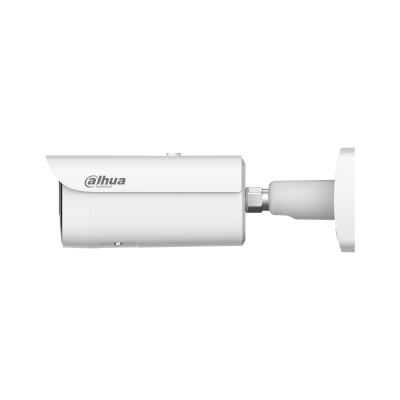

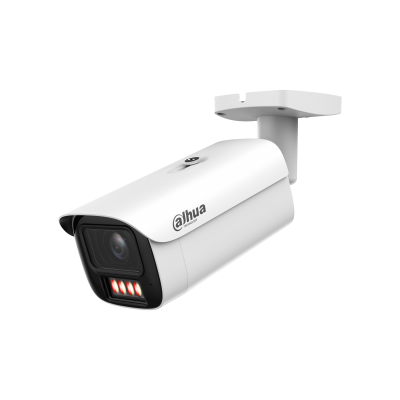

Dahua IPC-HFW5859E1-ZE-IL 8MP Smart Dual Light Vari-focal Bullet WizMind Network Camera, 2.7-12mm DC-Iris, 120dB WDR, IP67/IK10
Regular price
$100,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua IPC-HFW5859E1-ZE-IL 8MP Smart Dual Light Vari‑focal Bullet WizMind Network Camera – 2.7‑12mm Zoom
8MP 4K Wide‑to‑Standard Zoom Bullet with Xinghan Vision Models & Smart Dual Light
- 8MP 4K Ultra‑HD Imaging: 3840×2160 resolution from a large 1/1.8" CMOS sensor. Motorized 2.7‑12mm DC-Iris zoom (F1.8) covers wide 113° to standard 47° horizontal FOV.
- Xinghan Vision Models: Comprehensive enhancement of target detection and imaging – longer detection distance and better recognition.
- Smart Dual Light with Zoomprio: 4 multi‑core IR+warm LEDs. IR up to 60m, warm light up to 60m. Illumination intensity automatically adjusts with zoom position.
- 120dB True WDR & AI Coding: 120dB WDR ensures clear details in strong backlight; AI H.265/H.264 (Smart H.265+/H.264+) reduces bandwidth and storage.
- 7+ AI Functions & EPTZ: Perimeter protection (IVS), SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata – supports multiple intelligent functions simultaneously. EPTZ included.
- Built-in Microphone & Sound Alarm: Real‑time audio security with 11 pre‑set and 10 customizable sound alarms (adjustable volume and play times).
- Rugged Vandal‑proof Bullet: Metal casing, IP67 weatherproof, IK10 vandal‑resistant, operating temperature -40°C to +60°C (–40°F to +140°F).
Camera Specification
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 3840 × 2160 (8MP 4K) |
| ROM / RAM | 4 GB / 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0008 lux @ F1.8 (Color, 30 IRE); 0.0004 lux (B/W); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance / Type | IR up to 60 m, warm light up to 60 m (4 multi‑core IR+warm LEDs); Smart Dual Light with Zoomprio control |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
Lens & DORI Optics
| Lens Type / Mount | Motorized vari-focal (φ14 mount) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focal Length / Aperture | 2.7 mm–12 mm (4.4x optical zoom) | F1.8 (max aperture) | |||||||||||||||
| Iris Control Type | Auto (DC-Iris) | |||||||||||||||
| Field of View | H: 113°–47°, V: 60°–23°, D: 133°–53° | |||||||||||||||
| Close Focus Distance | 0.13 m (0.43 ft) | |||||||||||||||
| DORI Distance |
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.
|
Elite Intelligence (WizMind)
| AI Functions | Perimeter protection (IVS), SMD 4.0, AcuPick, face detection, people counting, heat map, video metadata, EPTZ |
|---|---|
| IVS Perimeter Protection | Intrusion, tripwire, fast moving (human/vehicle/animal classification), loitering, gathering, parking detection, stay detection. Large‑scale AI models extend detection range and reduce false alarms. Supports self‑learning. |
| SMD 4.0 | Smart Motion Detection – filters out false alarms caused by environmental changes. |
| AcuPick | Deep learning target matching with back‑end NVR for rapid live/recorded video search. |
| Face Detection | 6 attributes (gender, age, glasses, expressions, mask, beard) + 8 expressions. Snapshot optimization, face enhancement, angle filter. |
| People Counting & Heat Map | Tripwire counting, area counting, queue management, report export (day/week/month/year). Heat map supported. |
| Video Metadata | Motor vehicle (6 attributes), non‑motor vehicle (6 attributes), face (6 attributes), human body (8 attributes). |
| Video Compression / AI Coding | H.265; H.264; H.264H; H.264B; MJPEG (sub stream) | AI H.265 / AI H.264 (Smart H.265+/H.264+) |
|---|---|
| Streaming Capability | 4 streams (main, sub, third, fourth) |
| Resolution | 8M (3840×2160), 6M, 5M, 4M, 3M, 1080p, 720p, D1, VGA, CIF |
| Video Frame Rate | Main: 8MP @ 25/30 fps; Sub: D1 @ 25/30 fps; Third: 1080p @ 25/30 fps; Fourth: 720p @ 25/30 fps | Bit Rate Control / Range | VBR, CBR | H.264/H.265: 3–16384 kbps |
| WDR & Image Enhancements | 120 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; Smart Illumination; LDC; EIS |
| Special Features | EPTZ, Image Rotation, Privacy Masking (4 mosaics or 8 color blocks) |
Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723
External: 1‑ch RCA input, 1‑ch RCA output
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100 Enhancement Base-T – Fast Ethernet) |
|---|---|
| Network Protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability / Browser | ONVIF (Profile S/G/T/M); CGI | IE11+, Chrome 102+, Firefox 88+ |
| Local Storage | Micro SD card (max. 1 TB); FTP; SFTP; NAS |
| Cybersecurity | Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; X.509 certification. |
| Management Software | DSS; DMSS; DoLynk Care | iOS & Android |
| RS-485 | Not specified |
|---|---|
| Audio I/O | 1‑ch RCA input, 1‑ch RCA output (in addition to built‑in microphone) |
| Alarm I/O | 2 alarm inputs (wet contact, 5 mA 3–5 VDC) 1 alarm output (wet contact, 300 mA 12 VDC) |
| Analog Output | Not specified |
| Power Output | Not specified |
| Alarm Events | Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, fast moving, loitering, parking, scene changing, audio detection, voltage detection, defocus, face detection, SMD, people counting, queue alarms, etc. |
Power, Climate & Protection
| Power Supply | 12 VDC (±30%), PoE+ (802.3at), ePoE; Dual Power Backup (hot‑swap without restart) |
|---|---|
| Power Consumption | Basic: 3.7 W (12 VDC), 5 W (PoE) Max (IR on + WDR + AI on): 12.9 W (12 VDC), 16.1 W (PoE) |
| Operating Temperature / Humidity | –40 °C to +60 °C (–40 °F to +140 °F) | ≤95% RH (non‑condensing) |
| Storage Temperature / Humidity | –40 °C to +60 °C, ≤95% RH |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal‑proof) |
| Anti‑corrosion Level | Basic Protection (designed for general use) |
| Casing Material | Metal |
|---|---|
| Product Dimensions | 279.8 mm × 96.7 mm × 94.9 mm (11.02" × 3.81" × 3.74") (L×W×H) |
| Net Weight / Gross Weight | 1.09 kg (2.40 lb) / 1.39 kg (3.06 lb) |
