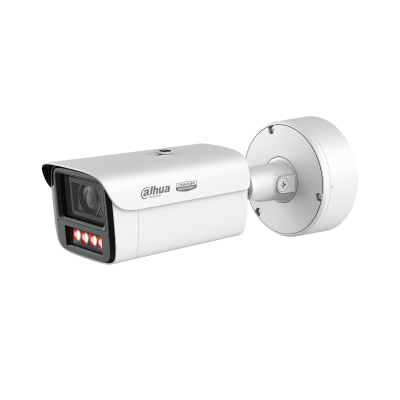

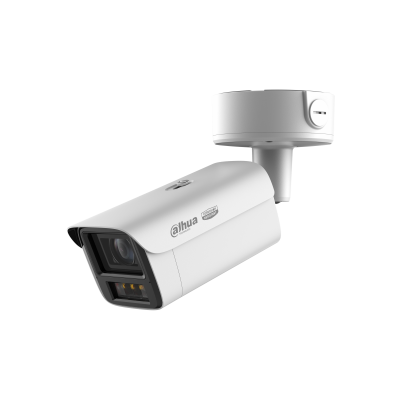

Dahua IPC-HFW7459Z1-Z-PV-X-ATC 4MP Anti‑Corrosion Bullet WizMind Network Camera – 2.7‑12mm F1.0 Zoom, 90fps/120fps, NEMA 4X
F1.0 Ultra‑Bright Bullet – Ultra‑High Frame Rate & Professional Anti‑Corrosion
- Extreme Frame Rates: 4MP @ 90fps or 2MP @ 120fps – capture fast‑moving targets with unmatched smoothness.
- Ultra‑Bright F1.0 Aperture: 2.7‑12mm motorized P‑Iris zoom with F1.0 – exceptional low‑light performance (0.0003 lux color).
- 150dB True WDR & AI‑ISP: Industry‑leading 150dB WDR with AI‑ISP ensures crystal‑clear images in extreme backlight and ultra‑low light.
- Built‑in Dual Mic & High‑Power Speaker: Two‑way talk with 110dB alarm output – instant sound + warm light alerts.
- 8GB ROM / 4GB RAM: High‑performance AI architecture for rapid processing of multiple intelligent functions.
- G‑sensor Gyroscope Image Stabilization (GIS): Eliminates vibration‑induced blur; also detects tampering events.
- Professional Anti‑Corrosion (NEMA 4X): UL 50E certified for chemical plants, docks, coastlines (up to 2km from sea) and acid rain areas.
- 10+ Simultaneous AI Functions: Face recognition (200,000 faces), PPE detection, ANPR, people counting, heat map, video metadata, AcuPick – supports dual intelligent functions at once (e.g. face detection + people counting, PPE + perimeter).
Camera Specification
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 2688 × 1520 (4MP) |
| ROM / RAM | 8 GB / 4 GB (High-performance AI architecture) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0003 lux @ F1.0 (Color, 30 IRE); 0.0001 lux (B/W); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance / Type | IR up to 60 m, warm light up to 60 m (4 multi‑core IR+warm LEDs); Smart Dual Light with 3 modes |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
Lens & DORI Optics
| Lens Type / Mount | Motorized vari-focal (Φ16 mount) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focal Length / Aperture | 2.7 mm–12 mm (4.4x optical zoom) | F1.0 (Ultra‑bright) | |||||||||||||||
| Iris Control Type | Auto (P‑Iris) | |||||||||||||||
| Field of View | H: 98.5°–48°, V: 52.7°–27°, D: 117.5°–56° | |||||||||||||||
| Close Focus Distance | 0.2 m (0.66 ft) | |||||||||||||||
| DORI Distance |
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.
|
Elite Intelligence (WizMind)
| Dual AI Simultaneous Enable | Face detection + people counting; face recognition + people counting; PPE + perimeter; PPE + face detection; PPE + face recognition |
|---|---|
| IVS Perimeter Protection | Intrusion, tripwire, fast moving (human/vehicle/animal classification), loitering, gathering, parking, stay detection, abandoned/missing object. Large‑scale AI models reduce false alarms, privacy protection. |
| Face Recognition | General mode + Counting mode. 6 attributes + 8 expressions. Supports 5 face databases, up to 200,000 faces. Privacy protection (mosaic/frosted glass). |
| PPE Detection | Helmets, hats, uniforms, masks, gloves, shoe covers, shoes, safety vests, seatbelts, goggles, aprons. Self‑learning workwear detection. Privacy protection. |
| ANPR & Parking Space Management | License plate, type, color (up to 60 km/h). 10,000 blocklist/allowlist records. Supports outdoor parking space management. |
| Video Metadata & People Counting | Motor vehicle, non‑motor vehicle, face, human body attributes. Directional flow statistics, queue management, heat map. Privacy protection for faces/bodies/vehicles. |
| AcuPick & Smart Search | Deep learning target matching with back‑end NVR for rapid live/recorded video search. |
Video & Audio Specifications
| Video Compression / AI Coding | H.265; H.264; H.264H; H.264B; MJPEG (sub stream) | AI H.265/AI H.264 (Smart H.265+/H.264+) |
|---|---|
| Streaming Capability | 5 streams (main, sub, third, fourth, fifth) |
| Resolution | 4M (2688×1520), 3M, 1080p, 720p, D1, CIF |
| Video Frame Rate |
Default: Main 4MP @ 25/30 fps; Sub/Third/Fourth 1080p @ 25/30 fps; Fifth D1 @ 25/30 fps High Frame Rate Mode: Main 4MP @ 75/90 fps or 1080p @ 100/120 fps |
| Bit Rate Control / Range | VBR, CBR, ABR | H.264: 32–10240 kbps; H.265: 12–10240 kbps |
| WDR & Image Enhancements | 150 dB True WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Mirror; Smart Illumination; LDC; Time‑Division Exposure |
| Special Features | Gyroscope Image Stabilization (GIS); G‑sensor tampering detection; Image Rotation; Privacy Masking (4 mosaics + 8 color blocks) |
| Audio Features |
Built-in Dual Mic + Built-in Speaker (max 110dB @ 10cm, 2W) Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723 External: 1‑ch RCA input, 1‑ch RCA output |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100/1000 Base-T) Gigabit Ethernet |
|---|---|
| Network Protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; DoLynk Cloud; Auto Registration |
| Interoperability / Browser | ONVIF (Profile S/G/T/M); CGI | IE11+, Chrome 100+, Firefox 47+ |
| Local Storage | Micro SD card (max. 1 TB); FTP; SFTP; NAS |
| Cybersecurity | Trusted boot/execution/upgrade; Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; AES 256; TPM 2.0 (FIPS 140-2 level 2); SSL/TLS1.3; Session security |
| Management Software | SmartPSS Lite; DSS; DMSS | iOS & Android |
Physical I/O Interfaces
| RS-485 | 1 port (1200–115200 bps) |
|---|---|
| Audio I/O | 1‑ch RCA input, 1‑ch RCA output (in addition to built‑in dual mic & speaker) |
| Alarm I/O | 3 alarm inputs (wet/dry contact), 2 alarm outputs (dry contact, 1000 mA 30 VDC / 500 mA 50 VAC) |
| Analog Output | 1 channel CVBS (BNC) | Power Output | 12 VDC, max 165 mA (peak 700 mA) |
| Alarm Events | Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, fast moving, abandoned/missing object, loitering, parking, scene changing, audio detection, defocus, face detection/recognition, ANPR, people counting, PPE, video metadata, parking space management, etc. |
Power, Climate & Protection
| Power Supply | 12 VDC (±30%), 24 VAC (±30%), PoE+ (802.3at); Dual Power Backup (hot‑swap without restart) |
|---|---|
| Heater (Window Heating) | Yes – removes water, ice, snow, mist for clear image |
| Power Consumption | Basic: 8.2 W (12 VDC), 9.1 W (24 VAC), 11.4 W (PoE) Max (ICR + IR full): 19.5 W (12 VDC), 20.9 W (24 VAC), 21.8 W (PoE) Heating: 2.64 W (12 VDC), 2.96 W (24 VAC), 3.04 W (PoE) |
| Operating Temperature / Humidity | –40 °C to +65 °C (–40 °F to +149 °F) | ≤95% RH (non‑condensing) |
| Protection Ratings | IP67 (weatherproof), IK10 (vandal‑proof) |
| Anti‑corrosion Level | Professional Protection – UL 50E NEMA Type 4X certified. Ideal for chemical plants, docks, coastlines (up to 2 km from sea), and acid rain areas. |
Physical Structure
| Casing Material | Casing: Metal; Sun cover: Plastic |
|---|---|
| Product Dimensions | 345 mm × 137 mm × 134 mm (13.58" × 5.39" × 5.28") (L×W×H) |
| Net Weight / Gross Weight | 2 kg (4.41 lb) / 3 kg (6.61 lb) |
