Dahua IPC-HFW7459Z1-Z4-PV-X 4MP WizMind Smart Dual Light Active Deterrence Camera, 150dB WDR, 90fps, ANPR & PPE,

Name: Dahua IPC-HFW7459Z1-Z4-PV-X 4MP WizMind Smart Dual Light Active Deterrence Camera, 150dB WDR, 90fps, ANPR & PPE,
Brand: Dahua
SKU: IPC-HFW7459Z1-Z4-PV-X

In stock

SKU: IPC-HFW7459Z1-Z4-PV-X

Request a Quote

Product variants

Request a Quote

Tell us your quantity and delivery destination for a confirmed quote.

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

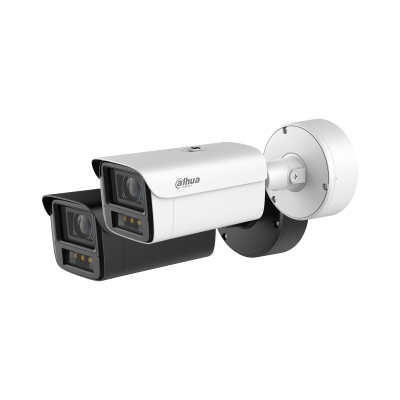

Dahua IPC-HFW7459Z1-Z4-PV-X 4MP Smart Dual Light 8 mm–32 mm Vari-focal Active Deterrence WizMind Network Camera

Elite Performance Highlights

Liquid-Smooth 90fps Video: Captures at up to 4MP@90fps or 1080p@120fps, providing unmatched smoothness for high-speed tracking and detail extraction.
150dB Ultra-WDR & AI-ISP: Industry-best dynamic range combined with AI-ISP technology ensures clear forensic details in the most challenging high-contrast backlighting.
8mm-32mm Precision Zoom: Motorized vari-focal lens with P-Iris control for optimized image sharpness. Detect targets up to 389 m (1,276 ft).
Proactive Active Deterrence: Integrated Red/Blue light warnings and a powerful speaker (110dB) to stop intruders in their tracks. Built-in dual Mic for real-time talk.
Xinghan Vision AI Suite: Comprehensive AI models for ANPR (up to 60km/h), PPE Detection (helmets/vests), Face Recognition, and Parking Space Management.
Extreme Reliability: Built-in Window Heater to clear ice and fog. IP67 weatherproof and IK10 vandal-proof certified.

Imaging & Lens

Image Sensor

Professional 1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Wide Dynamic Range

150 dB WDR | Supported AI-ISP Enhancement

Min. Illumination

0.0006 lux @ F1.6 (Color); 0.0002 lux @ F1.6 (B/W); 0 lux (Lights on)

Lens Technology

8 mm–32 mm Motorized Vari-focal | P-Iris Control

Illumination Range

IR: Up to 120 m (393.70 ft) | Warm light: Up to 80 m (262.47 ft)

High Frame Rate Mode

Main stream: 4MP @ 90 fps / 1080p @ 120 fps

DORI Distance

Lens	Detect	Observe	Recognize	Identify
W (8 mm)	154.5 m (506 ft)	61.8 m (202 ft)	30.9 m (101 ft)	15.4 m (50 ft)
T (32 mm)	389.0 m (1276 ft)	155.6 m (510 ft)	77.8 m (255 ft)	38.9 m (127 ft)

Elite Intelligence (WizMind)

ANPR	License plate recognition for vehicles up to 60km/h. Up to 10,000 allow/blocklist records.
PPE Detection	Triggers alarms for helmets, masks, safety vests, uniforms, gloves, shoe covers, etc.
Face Recognition	5 face databases (up to 200k images). Face attributes (6 attributes/8 expressions).
Video Metadata	Attributes for motor vehicles (Logo, smoke, call), non-motor vehicles, and human bodies.
IVS / Perimeter	Intrusion, tripwire, fast moving, loitering, gathering, parking, and stay detection.
Privacy Protection	Automatic masks for faces, bodies, and vehicles using mosaic filters.

Video & Active Deterrence

Streaming Capability	5 Streams for diverse applications
Deterrence Features	Red/Blue Light Warning + 110dB Audio Alarm.
Audio Hardware	Built-in Dual Microphone \| Built-in Speaker (110dB at 10cm)
Stabilization	Gyroscope Image Stabilization (GIS) & G-sensor for tampering.
Exposure	Time-Division Exposure supported.

Power & Durability

Power Supply	12 VDC (±30%) & 24 VAC (±30%); PoE+ (802.3at); ePoE support
Built-in Heater	Window Heating: Removes frost, ice, and mist automatically.
Power Consumption	Basic: 8.2 W (12 VDC); 11.4 W (PoE) Max (Heater + AI + IR): 19.5 W (12 VDC); 21.8 W (PoE)
Protection Rating	IP67 Weatherproof \| IK10 Vandal-proof
Operational Temp	–40 °C to +65 °C (–40 °F to +149 °F) \| Humidity ≤95% (RH)

Structure

Casing Material	Metal (Casing) \| Plastic (Sun cover)
Product Dimensions	345 mm × 137 mm × 134 mm (13.58" × 5.39" × 5.28")
System Ports	RJ-45 (Gigabit Ethernet) \| 1x RS-485 \| 1-ch CVBS (BNC) \| 3-ch Alarm In / 2-ch Out \| 12 VDC Output
Weight	Net Weight: 2 kg (4.41 lb) \| Gross Weight: 3 kg (6.61 lb)
