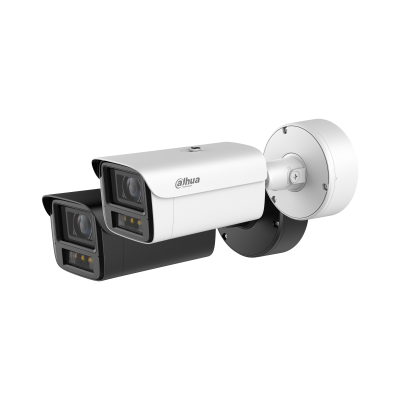

Dahua IPC-HFW7859Z1-Z4-PV-X 8MP 4K Smart Dual Light 8 mm–32 mm Vari-focal Active Deterrence WizMind Network Bullet Camera
Ultimate Performance Highlights
- Liquid-Smooth 8MP 60fps Video: Captures high-speed action in 4K resolution at 60 fps (or 1080p @ 120 fps) for unmatched forensic clarity.
- 140dB True WDR & AI-ISP: Professional dynamic range paired with AI-ISP technology delivers vivid details even in extreme backlight or ultra-low light (0.0003 lux).
- 8mm-32mm Precision Zoom: Motorized vari-focal lens with P-Iris control and GIS (Gyroscope Image Stabilization) for ultra-sharp, steady imaging.
- Proactive Deterrence: Features Red/Blue light warning and a high-power 110dB speaker. Supports real-time talk via built-in dual Mic.
- Xinghan Vision AI Models: Comprehensive intelligence suite including ANPR (up to 60km/h), PPE Detection (helmets, vests, masks), Face Recognition (200k database), and Parking Space Management.
- Industrial Resilience: Built-in Window Heater for ice/snow removal. Certified IP67 weatherproof and IK10 vandal-proof.
Camera Specification
| Image Sensor | 1/1.8" CMOS (Professional Grade) |
|---|---|
| Max. Resolution | 3840 (H) × 2160 (V) - 8MP 4K |
| ROM / RAM | 8 GB / 4 GB |
| Scanning System | Progressive |
| Min. Illumination | 0.0007 lux @ F1.6 (Color, 30 IRE) 0.0003 lux @ F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | IR: Up to 120 m (393.70 ft) Warm Light: Up to 80 m (262.47 ft) |
| Illuminator Control / Number | Auto; Manual | 4 (Multi-core IR + warm light) |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
Lens & Optics
| Lens Type / Mount | Motorized vari-focal | Module | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focal Length | 8 mm–32 mm | |||||||||||||||
| Max. Aperture / Iris | F1.6 | Auto (P-Iris) | |||||||||||||||
| Field of View (H/V/D) | H: 41°–15°; V: 22°–9°; D: 47°–18° | |||||||||||||||
| Close Focus Distance | 1 m (3.28 ft) | |||||||||||||||
| DORI Distance |
|
Elite Intelligence (WizMind)
| AI Model | Xinghan Vision Models: Imaging & target detection enhancement. |
|---|---|
| PPE Detection | Detects helmets, uniforms, masks, gloves, vests, goggles, shoe covers, etc. via self-learning. |
| ANPR | License plate, vehicle type, vehicle color recognition (up to 60km/h). 10k allow/blocklist records. |
| Face Recognition | Supports 5 face databases (up to 200,000 pictures). Extraction of 6 attributes & 8 expressions. |
| IVS / Perimeter | Intrusion, tripwire, fast moving, loitering, gathering, parking, stay, abandoned/missing object detection. |
| Video Metadata | Attributes for motor vehicles (Smoking, calling, seatbelt), non-motor vehicles, and human bodies (Bag, hat, gender). |
| Advanced Functions | EPTZ, Heat Map, People Counting (Tripwire/Area/Queue), Parking Space Management, Privacy Protection (Mosaic/Frosted). |
Video & Audio
| Compression / AI Coding | H.265; H.264; H.264H; H.264B; MJPEG | AI H.265; AI H.264 (Smart H.265+/H.264+) |
|---|---|
| Resolution Options | 8M (3840 × 2160); 6M; 5M; 4M; 3M; 1080p; 1.3M; 720p; D1; CIF |
| Video Frame Rate |
Default: Main stream: 3840 × 2160 @ (1–30 fps) High Frame Rate Mode: Main stream: 3840 × 2160 @ (1–60 fps) / 1920 × 1080 @ (1–120 fps) *Supports 5 Streams total. |
| WDR / Noise Reduction | 140 dB WDR | 3D NR |
| Stabilization | Gyroscope Image Stabilization (GIS) & G-sensor tampering detection. |
| Active Deterrence Features | Red/Blue Light Warning + 110dB Siren Alarm. |
| Audio Hardware | Built-in Dual Microphone | Built-in Speaker (110dB at 10cm) |
System Connectivity
| Network Port | RJ-45 (10/100/1000 Base-T) - Gigabit Ethernet |
|---|---|
| Network Protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTSP; SMTP; FTP; SFTP; DHCP; DNS; QoS; P2P etc. |
| Interoperability / Browser | ONVIF (Profile S/G/T/M); CGI | IE11+, Chrome 100+, Firefox 47+ |
| System Ports | 1x RS-485 | 1x RCA Audio In / 1x Out | 3-ch Alarm In / 2-ch Out | 1-ch CVBS (BNC) | 12 VDC Power Out |
| Cybersecurity | AES 256; TPM 2.0 (FIPS 140-2 Level 2); SSL/TLS1.3; Trusted boot/execution/upgrade. |
Power & Protection
| Power Supply | 12 VDC (±30%) & 24 VAC (±30%) independent port; PoE+ (802.3at); ePoE support |
|---|---|
| Built-in Heater | Window Heating: Effectively removes water, ice, snow, and mist from the glass automatically. |
| Power Consumption | Basic: 8.2 W (12 VDC); 11.4 W (PoE) Max (Heater + AI + IR): 19.5 W (12 VDC); 21.8 W (PoE) |
| Durability Rating | IP67 Weatherproof | IK10 Vandal-proof |
| Operational Temp | –40 °C to +65 °C (–40 °F to +149 °F) | Humidity ≤95% (RH) |
Structure
| Casing Material | Metal (Casing) | Plastic (Sun cover) |
|---|---|
| Product Dimensions | 345 mm × 137 mm × 134 mm (13.58" × 5.39" × 5.28") |
| Weight | Net Weight: 2 kg (4.41 lb) | Gross Weight: 3 kg (6.61 lb) | Micro SD up to 1 TB |
