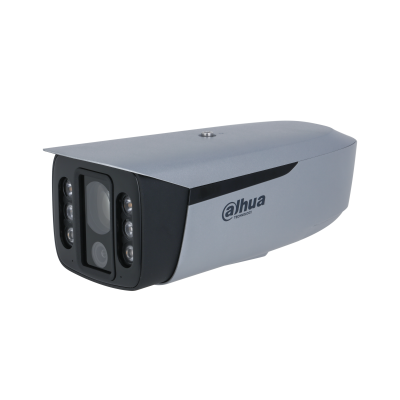

Dahua IPC-MFW7442K1-Z4-T40 4+4MP Dual-Sight Bullet WizMind Network Camera – 8‑32mm Zoom + 3.6mm Panoramic
Dual‑Lens, Dual‑Channel – Zoom Detail + Panoramic View
- Channel 1 (Detail Zoom – 4MP): 1/1.7" CMOS, 8‑32mm F1.2 motorized zoom. Smart dual light: IR up to 100m (328 ft) + warm light up to 60m. Detection range up to 407m (1,335 ft).
- Channel 2 (Panoramic – 4MP): 1/2.7" CMOS, 3.6mm F1.0 fixed lens with 81° horizontal FOV. Warm light up to 20m (65 ft).
- Smart Dual Light (IR + Warm LED): 3 illumination modes (IR only, warm light only, mixed) to minimize glare and adapt to different scenes.
- Built-in Dual Mic & Speaker: Secure two‑way talk and instant sound + light alerts to deter intruders and reduce incidents.
- 5 AI Functions (Channel 1): Perimeter protection, face recognition (up to 25,000 faces), face detection, people counting, and video metadata.
- Rich Interfaces: 3 alarm inputs / 2 outputs, 2 audio inputs / 1 output, RS-485, BNC analog output, microSD up to 256GB.
- Rugged Design: IP67 weatherproof, operating temperature -30°C to +60°C (–22°F to +140°F), metal+plastic casing.
Camera Specification
| Image Sensor | Channel 1 (Detail): 1/1.7" CMOS Channel 2 (Panoramic): 1/2.7" CMOS |
|---|---|
| Max. Resolution | 2688 × 1520 (4MP) for both channels |
| ROM / RAM | Not specified (standard WizMind architecture) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
Ch1: 0.0015 lux @ F1.2 (Color); 0.0003 lux (B/W); 0 lux (illuminator on) Ch2: 0.002 lux @ F1.0 (Color); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance / Type |
Ch1: IR up to 100 m, warm light up to 60 m (4 mixed IR+warm LEDs) Ch2: warm light up to 20 m (2 warm LEDs) 3 illumination modes supported |
Lens & DORI Optics
| Lens Type / Mount | Ch1: Motorized vari-focal (Module mount) Ch2: Fixed-focal (M12 mount) |
||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focal Length / Aperture | Ch1: 8 mm–32 mm (4x zoom) | F1.2 Ch2: 3.6 mm | F1.0 |
||||||||||||||||||||
| Field of View |
Ch1: H: 43°–15°, V: 23°–8°, D: 50°–17° Ch2: H: 81°, V: 43°, D: 95° |
||||||||||||||||||||
| Close Focus Distance | Ch1: W: 1 m, T: 1.5 m Ch2: 2 m (6.56 ft) |
||||||||||||||||||||
| DORI Distance |
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.
|
Elite Intelligence (WizMind)
| AI Functions (Channel 1) | Perimeter protection, face recognition, face detection, people counting, video metadata. (Channel 2 supports limited AI; refer to manual) |
|---|---|
| IVS Perimeter Protection | Intrusion, tripwire, fast moving (human/vehicle classification), loitering, gathering, parking detection, abandoned/missing object. |
| Face Recognition | 6 attributes (gender, age, glasses, expressions, face mask, beard) + 8 expressions. Supports 5 face databases, up to 25,000 faces. |
| People Counting | Tripwire counting, area counting, queue management, report export (day/month/year). 4 rules configurable. |
| Video Metadata | Motor vehicle attributes (license plate, type, color, logo, seatbelt, smoking, calling), non-motor vehicle attributes, human body attributes, face attributes. |
| Smart Search | Works with Smart NVR for refined intelligent search and event extraction. |
Video & Audio Specifications
| Video Compression / Smart Codec | H.265; H.264; H.264H; H.264B; MJPEG (sub stream) | Smart H.265+ / Smart H.264+ |
|---|---|
| Stream Capability | 3 streams per channel (main, sub, third) |
| Resolution | Main: 2688×1520, 2560×1440, 2304×1296, 1080p, 1280×960, 1280×720 Sub: 704×576/704×480, 640×480, 352×288 Third: 1920×1080, 1280×720, 704×576/640×480 |
| Video Frame Rate | Both channels: Main 2688×1520 @ 25/30 fps; Sub 704×576/480 @ 25/30 fps; Third 1920×1080 @ 25/30 fps |
| Bit Rate Control / Range | CBR/VBR | H.264/H.265: 32–8192 kbps |
| WDR & Image Enhancements | 120 dB WDR; BLC; HLC; 3D NR; ROI (4 areas); Defog; EIS; Image Rotation; Privacy Masking (8 areas) |
| Audio Features |
Built-in Dual Mic + Built-in Speaker (sound/light alerts) Audio Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729; G.723 External: 2-ch RCA input, 1-ch RCA output |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100/1000 Base-T) Gigabit Ethernet |
|---|---|
| Network Protocols | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour |
| Interoperability / Browser | ONVIF (Profile S/G/T); CGI | IE9+, Chrome 86+ (with/without plug-in), Firefox 86+ |
| Local Storage | Micro SD card (max. 256 GB); FTP; SFTP; NAS |
| Cybersecurity | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade/boot; firmware encryption; X.509 certification. |
| Management Software | DSS Pro; DMSS | iOS & Android |
Physical I/O Interfaces
| RS-485 | 1 port (1200–115200 bps) |
|---|---|
| Audio I/O | 2-ch RCA input, 1-ch RCA output (in addition to built-in mic & speaker) |
| Alarm I/O | 3 alarm inputs (5 mA 3–5 VDC) 2 alarm outputs (300 mA 12 VDC) |
| Analog Output | 1 channel CVBS (BNC) |
| Power Output | Not specified |
| Alarm Events | Extensive: No SD card, network/IP issues, motion, tampering, tripwire, intrusion, fast moving, abandoned/missing object, loitering, parking, scene changing, audio detection, defocus, face detection/recognition, video metadata, people counting, license plate recognition, etc. |
Power, Climate & Protection
| Power Supply | 12 VDC (±?); PoE (802.3af/at assumed) |
|---|---|
| Power Consumption | Basic: 5.5 W (12 VDC), 6.4 W (PoE) Max (ICR + zoom + IR full): 19.2 W (12 VDC), 24.6 W (PoE) |
| Operating Temperature / Humidity | –30 °C to +60 °C (–22 °F to +140 °F) | ≤95% RH (non-condensing) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Protection Rating | IP67 weatherproof |
Physical Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 283.1 mm × 123.2 mm × 109.5 mm (11.14" × 4.85" × 4.31") (L×W×H) |
| Net Weight / Gross Weight | 1,905 g (4.20 lb) / 2,185 g (4.82 lb) |
