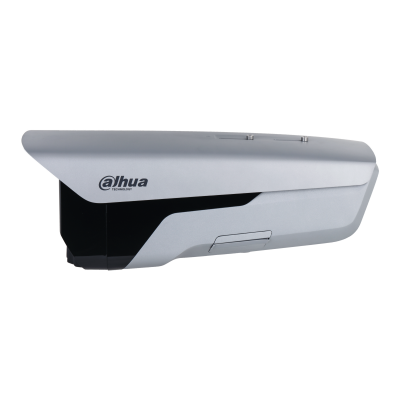

Dahua IPC-MFW7849Y-Z4-T44 8+4MP Dual-Sight Polarlight Bullet Camera, 20-80mm F1.1 + 8-32mm F1.6, 120dB WDR, Dual Light Fusion
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua IPC-MFW7849Y-Z4-T44 8+4MP Dual-Sight Polarlight Bullet WizMind Network Camera – 20‑80mm Zoom + 8‑32mm Zoom
Dual Motorized Zoom Channels – See Farther, Cover Wider
- Channel 1 (Ultra Detail – 8MP): 1/1.2" CMOS, 20‑80mm F1.1 motorized P‑Iris zoom, warm light up to 80m. Detection range up to 1,048m (3,438 ft).
- Channel 2 (Telephoto – 4MP): 1/1.8" CMOS, 8‑32mm F1.6 motorized DC‑Iris zoom, dual light fusion (IR 120m + warm 80m). Detection range up to 395m (1,296 ft).
- Dual Micro‑PTZ & Independent Area Lighting: Remotely adjust lens angles (CH1: tilt ±5°; CH2: tilt ±15°). Control lighting zones independently – 8 warm LEDs (CH1) + 2 dual‑light fusion LEDs (CH2).
- Simultaneous AI on Both Channels: CH1 and CH2 AI functions can be enabled at the same time – perimeter protection, face recognition (100,000 faces), people counting, crowd distribution map, video metadata.
- Polarlight & Time‑Division Exposure: Extreme low‑light sensitivity (CH1: 0.0003 lux color; CH2: 0.0005 lux color) plus time‑division exposure ensures clear capture of people, vehicles, and non‑motor vehicles moving at different speeds.
- Dual Light Fusion (CH2): Combines IR and warm light for multiple illumination modes while minimizing glare.
- All‑Weather Rugged Design: Glass heater for defogging, IP67 weatherproof, operating temperature -40°C to +60°C (–40°F to +140°F).
Camera Specification
| Image Sensor | Channel 1: 1/1.2" CMOS Channel 2: 1/1.8" CMOS |
|---|---|
| Max. Resolution | Ch1: 3840 × 2160 (8MP 4K) Ch2: 2688 × 1520 (4MP) |
| ROM / RAM | 8 GB / 4 GB (High-performance AI architecture) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
Ch1: 0.0003 lux @ F1.1 (Color); 0 lux (illuminator on) Ch2: 0.0005 lux @ F1.6 (Color); 0.0002 lux @ F1.6 (B/W); 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance / Type |
Ch1: warm light up to 80 m (8 LEDs) Ch2: IR up to 120 m, warm light up to 80 m (2 LEDs, dual light fusion) Control: Auto/Manual; independent zone lighting |
| Pan/Tilt/Rotation Range | Channel 1: Tilt ±5° (Micro-PTZ) Channel 2: Tilt ±15° (Micro-PTZ) |
Lens & DORI Optics
| Lens Type / Mount | Ch1: Motorized vari-focal (CS mount) Ch2: Motorized vari-focal (Module mount) |
|||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Focal Length / Aperture | Ch1: 20 mm–80 mm (4x zoom) | F1.1 Ch2: 8 mm–32 mm (4x zoom) | F1.6 |
|||||||||||||||||||||||||
| Iris Control Type | Ch1: Auto (P-Iris) Ch2: Auto (DC-Iris) |
|||||||||||||||||||||||||
| Field of View |
Ch1: H: 27°–9°, V: 15°–5°, D: 31°–10° Ch2: H: 42°–15°, V: 23°–9°, D: 49°–17° |
|||||||||||||||||||||||||
| Close Focus Distance | Ch1: 5 m–10 m (16.4–32.8 ft) Ch2: 3 m–5.5 m (9.8–18.0 ft) |
|||||||||||||||||||||||||
| DORI Distance |
*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.
|
Elite Intelligence (WizMind)
| AI Simultaneous Enable | CH1 and CH2 AI functions can be enabled at the same time. |
|---|---|
| IVS Perimeter Protection (Both Channels) | Intrusion, tripwire, fast moving (human/vehicle classification), loitering, gathering, parking detection, abandoned/missing object. |
| Face Recognition (Both Channels) | 6 attributes (gender, age, glasses, expressions, mask, beard) + 8 expressions. Supports 5 face databases, up to 100,000 faces. |
| People Counting & Crowd Distribution Map | Tripwire/area counting, queue management, crowd distribution map, global people counting. |
| Video Metadata (Both Channels) | Motor vehicle, non-motor vehicle, face, human body detection. Vehicle attributes: license plate, type, color, logo, seatbelt, smoking, calling. Human: gender, clothing, bag, hat, umbrella. Face: gender, age, expressions, glasses, mask, beard. |
| Smart Search & AcuPick | Works with Smart NVR for refined intelligent search, event extraction, and merging. |
Video & Audio Specifications
| Video Compression / Smart Codec | H.265; H.264; H.264H; H.264B; MJPEG (sub stream) | Smart H.265+ / Smart H.264+ |
|---|---|
| Stream Capability | 3 streams per channel |
| Resolution (per channel) |
Ch1: 8M (3840×2160), 6M, 5M, 4M, 3M, 1080p, 720p Ch2: 4M (2688×1520), 3M, 1080p, 720p, D1, CIF |
| Video Frame Rate |
Ch1 Main: 3840×2160 @ (1–25/30 fps) Ch2 Main: 2688×1520 @ (1–25/30 fps) Sub/Third streams: up to 30 fps (1080p) |
| Bit Rate Control / Range | CBR/VBR | Ch1 H.264: 32–16384 kbps, H.265: 12–11776 kbps Ch2 H.264: 32–15872 kbps, H.265: 12–9472 kbps |
| WDR & Image Enhancements | 120 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; EIS; Mirror; Privacy Masking (4 areas) |
| Special Feature | Time-Division Exposure – captures people, vehicles, and non-motor vehicles moving at different speeds clearly. |
| Audio Compression & I/O | G.711a; G.711Mu; PCM; G.726; G.723 | 2-ch RCA input, 1-ch RCA output |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100/1000 Base-T) Gigabit Ethernet |
|---|---|
| Network Protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability / Browser | ONVIF (Profile S/G/T); CGI | IE9+, Chrome 86+, Firefox 86+ (plug-in or plug-in-free) |
| Local Storage | Micro SD card (supports max. 256 GB); FTP; SFTP; NAS |
| Cybersecurity | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade/boot; firmware encryption; X.509 certification. |
| Management Software | DSS Pro; DMSS | iOS & Android mobile clients |
Physical I/O Interfaces
| RS-485 | 1 port (1200–115200 bps) |
|---|---|
| Audio I/O | 2-ch RCA input, 1-ch RCA output |
| Alarm I/O |
7 alarm inputs (5 mA 3–5 VDC) 3 alarm outputs (dry contact, 1000 mA 30 VDC / 500 mA 50 VAC) |
| Analog Output | Not specified |
| Power Output | Not specified |
| Alarm Events | Extensive: No SD card, network/IP issues, motion, tampering, tripwire, intrusion, fast moving, abandoned/missing object, loitering, parking, scene changing, audio detection, voltage detection, defocus, face detection/recognition, video metadata, crowd density, etc. |
Power, Climate & Protection
| Power Supply | 12 VDC, 4 A (PoE not supported – high power demand) |
|---|---|
| Glass Heater (Defog) | Yes – integrated glass heating for defogging and frost/ice/snow removal. | Power Consumption | Basic: 11.5 W (12 VDC) Max (ICR + IR full): 36.1 W (12 VDC) |
| Operating Temperature / Humidity | –40 °C to +60 °C (–40 °F to +140 °F) | 10–95% RH (non-condensing) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Protection Rating | IP67 weatherproof |
Physical Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 483.4 mm × 197.7 mm × 178.5 mm (19.03" × 7.78" × 7.03") (L×W×H) |
| Net Weight / Gross Weight | 6.3 kg (13.89 lb) / 8.5 kg (18.74 lb) |
