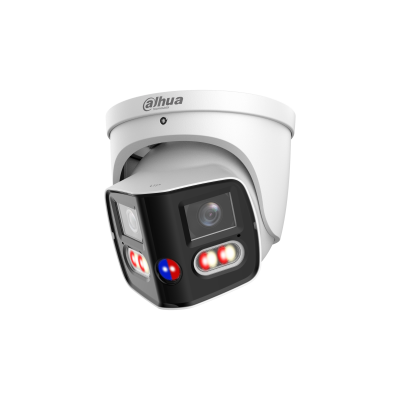

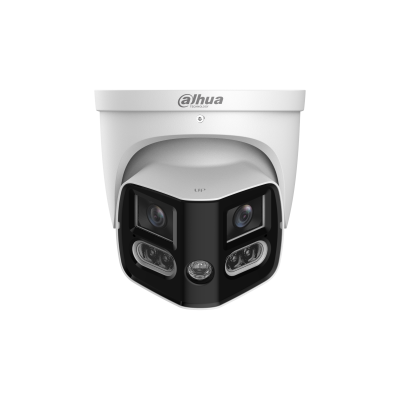

Dahua IPC-PDW31259-A180-AS-PV 6MP TiOC Dome Network Camera

Name: Dahua IPC-PDW31259-A180-AS-PV 6MP TiOC Dome Network Camera
Brand: Dahua
SKU: IPC-PDW31259-A180-AS-PV
Price: 10000.00 USD
Availability: InStock

In stock

SKU: IPC-PDW31259-A180-AS-PV

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua IPC-PDW31259-A180-AS-PV 2×6MP TiOC Duo Splicing Fixed‑focal Eyeball WizSense Network Camera – 180° Panoramic, F1.0, Red & Blue Warning Lights

12MP 180° Panoramic TiOC Camera – Active Deterrence & Pixel‑Level Splicing

12MP Ultra‑HD Panoramic Imaging: Dual 1/2.5" CMOS sensors deliver seamless 180° stitching at 5000×2500 resolution using pixel‑level splicing fusion.
Ultra‑Bright F1.0 Aperture & Full‑Color: Exceptional low‑light performance (0.0008 lux color) ensures vivid full‑color images even in near darkness.
TiOC Active Deterrence: Red & blue warning lights (flash/solid, adjustable frequency/duration) + sound alarm (11 pre‑set + custom sounds) + warm light – instantly deters intruders.
Smart Dual Light: 4 multi‑core IR+warm LEDs provide up to 30m IR and 30m warm light with 3 illumination modes.
Built‑in Dual Mic & Dual Speaker: Secure real‑time two‑way talk with 110dB max sound level for powerful audio alarm broadcast.
Advanced AI & AcuPick: Xinghan Vision Models, SMD 4.0, AcuPick (fast human/vehicle search), IVS perimeter protection (intrusion/tripwire with classification), face detection (full image). Electronic enlarge and track intelligent alarm targets.
Rugged Eyeball Design: Metal casing, IP67 weatherproof, 3‑axis adjustment (Pan 355°, Tilt 77°, Rotation 355°), operating temperature -40°C to +60°C.

Camera Specification

Image Sensor	Dual 1/2.5" CMOS
Max. Resolution	5000 × 2500 (12MP)
ROM / RAM	256 MB / 2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0008 lux @ F1.0 (Color, 30 IRE); 0.0003 lux (B/W); 0 lux (illuminator on)

S/N Ratio >56 dB Illumination Distance / Type IR up to 30 m, warm light up to 30 m (4 multi‑core IR+warm LEDs); Smart Dual Light with Auto/Manual control Angle Adjustment Pan: 0°–355°, Tilt: 0°–77°, Rotation: 0°–355°

Lens & DORI Optics

Lens Type / Mount

Fixed-focal (M12 mount) – 2.8mm

Max. Aperture

F1.0

Iris Control

Fixed

Field of View

H: 180° (stitched), V: 78°

Close Focus Distance

1.4 m (4.59 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	59.6 m (196 ft)	23.8 m (78 ft)	11.9 m (39 ft)	6.0 m (20 ft)

*DORI standard (EN-62676-4). For intelligent function distances, refer to project design tool.

Elite Intelligence (WizSense)

Video & Audio Specifications

AI Functions	Perimeter protection (IVS), SMD 4.0, AcuPick, face detection (full image), electronic enlarge and track intelligent alarm targets
IVS Perimeter Protection	Intrusion, tripwire (human/vehicle classification), stay detection, loitering detection. Large‑scale AI models extend detection range and reduce false alarms.
SMD 4.0	Smart Motion Detection – filters out false alarms caused by environmental changes.
AcuPick	Deep learning target matching with back‑end NVR for rapid human/vehicle search.
Face Detection (Full Image)	Face detection, snapshot optimization, face exposure, face angle filter, snapshot strategies (real‑time/quality/optimization).

Network, Storage & Cybersecurity

Video Compression / AI Coding	H.265; H.264; H.264H; H.264B; MJPEG (sub stream) \| AI H.265 / AI H.264 (Smart H.265+/H.264+)
Streaming Capability	3 streams (main, sub, third)
Resolution	12M (5000×2500), 1920×860, 1200×536, 960×432, D1
Video Frame Rate	Main: 5000×2500 @ 20 fps; Sub/Third: up to 20 fps (configurable)
Bit Rate Control / Range	VBR, CBR, ABR \| H.264/H.265: 6–32768 kbps
WDR & Image Enhancements	120 dB WDR; SSA; BLC; HLC; 3D NR; ROI (4 areas); Defog; Smart Illumination
Audio Features	Built-in Dual Mic + Dual Speaker (max 110dB @ 10cm, 2W) Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723 External: 1‑ch RCA input, 1‑ch RCA output

Network Port	RJ-45 (10/100/1000 Base-T) Gigabit Ethernet
Network Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration
Interoperability / Browser	ONVIF (Profile S/G/T/M); CGI \| IE, Chrome, Firefox
Local Storage	Micro SD card (max. 512 GB); FTP; SFTP; NAS
Cybersecurity	Digest; WSSE; Account lockout; Security logs; 802.1x; IP/MAC filtering; HTTPS; Syslog; Trusted boot/execution/upgrade; Session security; X.509 certification.

Management Software SmartPSS Lite; DSS; DMSS; DoLynk Care | iOS & Android

Physical I/O Interfaces

RS-485	Not specified
Audio I/O	1‑ch RCA input, 1‑ch RCA output (in addition to built‑in dual mic & dual speaker)
Alarm I/O	1 alarm input (wet/dry contact), 1 alarm output (dry contact, 1000 mA 30 VDC / 500 mA 50 VAC)
Analog Output	Not specified

Power Output Not specified Alarm Events Extensive list including SD card errors, network issues, motion, tampering, tripwire, intrusion, loitering, stay, scene changing, audio detection, defocus, face detection, SMD, security exception, etc.

Power, Climate & Protection

Physical Structure

Power Supply	12 VDC (±30%), PoE+ (802.3at); Dual Power Backup (hot‑swap without restart)
Power Consumption	Basic: 4.9 W (12 VDC), 6.8 W (PoE) Max (H.265 + WDR + warm light + active deterrence + AI on): 13.3 W (12 VDC), 16.1 W (PoE)
Operating Temperature / Humidity	–40 °C to +60 °C (–40 °F to +140 °F) \| ≤95% RH (non‑condensing)
Storage Temperature / Humidity	–40 °C to +60 °C, ≤95% RH
Protection Rating	IP67 (weatherproof)
Anti‑corrosion Level	Basic Protection (designed for general use)

Casing Material	Metal
Product Dimensions	135.2 mm × Φ122.0 mm (5.32" × Φ4.80") (H × D)
Net Weight / Gross Weight	0.99 kg (2.18 lb) / 1.15 kg (2.54 lb)
