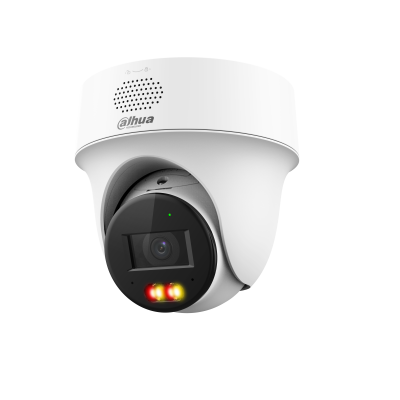

Dahua IPC-PT1239H-PV 2MP Smart Dual Light Active Deterrence Network PT Camera
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua IPC-PT1239H-PV 2MP Smart Dual Light Active Deterrence PT Camera – Two-Way Talk, Human/Vehicle Detection
Key Performance Highlights – Compact PT Camera with Active Deterrence
- 2MP High-Quality Imaging: 1/2.8" CMOS sensor delivers 1080p Full HD video with exceptional clarity.
- Smart Dual Light for Night: 30 m IR + 30 m warm light – flexible illumination options for optimal night vision.
- Active Deterrence: Warm light warning (adjustable flash) + custom voice alarm imports – proactively prevents security threats.
- Human & Vehicle Detection: Intelligent monitoring triggers alarms only for relevant targets, reducing false alerts.
- PT Control & Compact Design: Pan: 0°–345°, tilt: 0°–90° with manual/preset speeds. Flexible installation in tight spaces.
- 120dB True WDR & H.265 Encoding: Handles challenging lighting conditions while reducing bandwidth and storage by up to 50%.
- Two-Way Talk: Built-in microphone and speaker enable real-time communication via DMSS app.
- Rugged & Reliable: IP66 weatherproof, TVS 2000V surge protection, operating temperature –30°C to +55°C.
Camera Specification – 2MP PT Camera
| Image Sensor | 1/2.8" CMOS |
|---|---|
| Max. Resolution | 2MP – 1920 (H) × 1080 (V) – 1080p Full HD |
| ROM / RAM | 128 MB / 128 MB |
| Electronic Shutter Speed | 1 s – 1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.05 lux@F1.6 (30 IRE); B/W: 0.005 lux@F1.6 (30 IRE); 0 lux (illuminator on) |
| Illumination Distance & Type |
Smart Dual Light: 30 m IR + 30 m warm light Illuminator count: 2 (IR + warm light fusion) |
| Illuminator Control | Manual; auto; off |
Lens Options & DORI Distance
| Focal Length / Aperture | 2.8 mm or 3.6 mm (selectable) | Fixed F1.6 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View | 2.8 mm: H:103°, V:55°, D:123° 3.6 mm: H:86°, V:46°, D:103° |
|||||||||||||||
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft); 3.6 mm: 1.2 m (3.93 ft) | |||||||||||||||
| Iris Control | Fixed | |||||||||||||||
| DORI Distance (EN-62676-4) |
|
Intelligence & Active Deterrence
| IVS / Smart Event | Yes – tripwire, intrusion, etc. Supports human and vehicle detection classification. |
|---|---|
| Human / Vehicle Detection | Intelligent monitoring with reduced false alarms. |
| Active Deterrence – Light Warning | Warm light flashing – duration 5–30 s, frequency high/medium/low adjustable. |
| Active Deterrence – Sound Warning | Supports custom voice content import; volume 0–100%; play times 1–10 adjustable. |
Video & Audio Specifications – 2 Streams, 120dB WDR
| Compression / Smart Codec | Smart H.265+; H.265; Smart H.264+; H.264B/H.264M/H.264H; MJPEG (sub stream 1) |
|---|---|
| Streaming Capability | 2 streams |
| Resolution Options | 1080p, 720p, 640×360, QVGA |
| Video Frame Rate | Main stream: 1080p/720p/640×360 @ 1–25/30 fps Sub stream 1: 640×360/QVGA @ 1–25/30 fps |
Bit Rate Control / Bit Rate | VBR/CBR. H.264: 16–8192 kbps; H.265: 6–6400 kbps |
| WDR / Image Enhancements | 120 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Electronic Defog, Image Rotation 180° |
| Privacy Masking | 4 areas |
| Audio | Built-in mic + speaker for two-way talk | Audio compression: PCM, G.711A, G.711Mu, G.726 |
PT & Mechanical Specifications
| Pan/Tilt Range | Pan: 0°–345°; Tilt: 0°–+90° |
|---|---|
| Manual Control Speed | Pan: 0.1–37.66°/s; Tilt: 0.1–32.61°/s |
| Preset Speed | Pan: 0.1–37.19°/s; Tilt: 0.1–30.82°/s |
| Preset / Idle Motion | 50 presets; idle motion: preset, home position (DMSS only) |
| PTZ Locked | Yes |
| Power-off Memory | Yes |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; DHCP; DNS; DDNS; IPv6; SSL; ARP; RTCP; RTP; IP Filter |
| Interoperability | ONVIF (Profile S/T); CGI; SDK |
| Local Storage | FTP only (no SD card slot) |
| User/Host / Bandwidth | 20 users (total bandwidth 64 Mbps) |
| Management Software / Browser | Smart PSS; DMSS; NVR; IE7+, Chrome, Firefox, Safari; iOS/Android mobile app |
| Audio I/O | 1 input (built-in mic) + 1 output (built-in speaker) |
|---|---|
| Alarm Linkage | Capture; preset; recording; audio; send email |
| Alarm Event | Motion/tampering detection; audio detection; network/IP conflict |
| Abnormal Sound Alarm | Yes |
| Power Supply | 12 VDC, 1.0 A ±10% OR PoE (802.3af) |
|---|---|
| Power Consumption |
12 VDC: Basic 3W, Max 11W (illuminator+speaker+PTZ) PoE: Basic 4W, Max 12W (illuminator+speaker+PTZ) |
| Operating Temperature / Humidity | –30 °C to +55 °C (–22 °F to +131 °F) | ≤95% RH |
| Protection Ratings | IP66 (weatherproof), TVS 2000V lightning/surge/voltage transient protection |
| Certifications | EN 62368-1, EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4, EN 55035 |
Physical Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 128.4 mm × Φ127.3 mm (5.06" × Φ5.01") |
| Net Weight / Gross Weight | 0.41 kg (0.9 lb) / 0.5 kg (1.1 lb) |
| Power Adapter | Optional |
| Note | Preset precision may vary by series; consult sales for high-precision requirements. |
