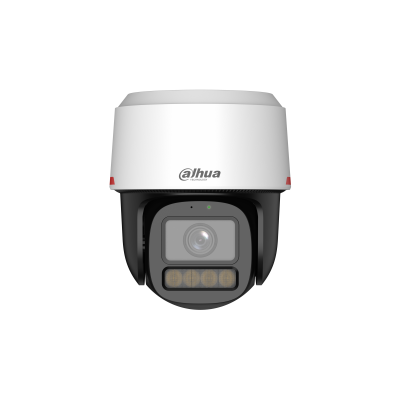

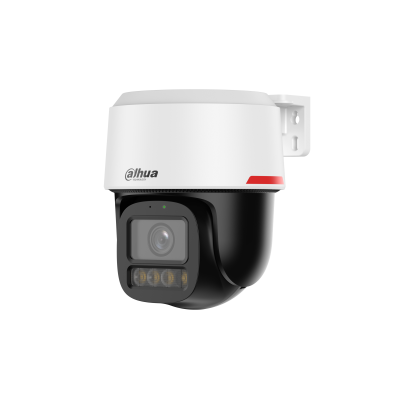

Dahua IPC-PT2849C1-S-PV-PRO 8MP WizColor Active Deterrence WizSense Network PT Camera
Regular price
$10,000.00
Couldn't load pickup availability
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
 |
 |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications: |
Dahua IPC-PT2849C1-S-PV-PRO 8MP WizColor Active Deterrence PT Camera – F1.0 Aperture, Auto Tracking Lite, Full-Color Night Vision
Key Performance Highlights – 8MP WizColor PT Camera with Active Deterrence
- 8MP Ultra-HD & 1/1.8" Large Sensor: 3840×2160 resolution with superior low-light sensitivity for exceptional detail.
- WizColor 24/7 Full-Color Recording: F1.0 large aperture captures bright, vivid color images even in near darkness – no need for IR switching.
- Smart Dual Light & Active Deterrence: 30 m warm light illumination with adjustable flash (duration 5–30s, 3 frequencies) + 3 built-in voice alarms for proactive threat prevention.
- Auto Tracking Lite & Preset Patrol: Intelligent target following; supports 80 presets, 8 tours (6 presets each, with adjustable stay duration and tour interval).
- Advanced WizSense Intelligence: SMD 3.0, human/vehicle detection, IVS (tripwire, intrusion), and 120dB True WDR.
- Two-Way Talk & Compact PT Design: Built-in microphone and speaker for real-time communication. Pan: 0°–345°, tilt: 0°–90°.
- Efficient Encoding & Storage: Smart H.265+ reduces bandwidth; supports Micro SD card up to 512 GB and FTP storage.
- Rugged & Reliable: IP66 weatherproof, TVS 2000V surge protection, operates –30°C to +55°C.
Camera Specification – 8MP WizColor PT Camera
| Image Sensor | 1/1.8" CMOS |
|---|---|
| Max. Resolution | 8MP – 3840 (H) × 2160 (V) – 4K Ultra-HD |
| ROM / RAM | 256 MB / 256 MB |
| Electronic Shutter Speed | 1 s – 1/100,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.0005 lux@F1.0 (30 IRE); 0 lux (illuminator on) |
| Illumination Distance & Type | Warm light: 30 m (98.43 ft) – 4 warm light LEDs |
| Illuminator Control | Auto; Manual; Off |
Lens & DORI Distance (F1.0 Large Aperture)
| Focal Length / Aperture | 3.6 mm fixed focal | F1.0 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Field of View | H: 93°, V: 49°, D: 110° | ||||||||||
| Close Focus Distance | 3.5 m (11.48 ft) | ||||||||||
| Iris Control | Fixed | ||||||||||
| DORI Distance (EN-62676-4) |
|
WizSense Intelligence & Active Deterrence
| SMD 3.0 | Smart Motion Detection with human/vehicle filtering. |
|---|---|
| Human / Vehicle Detection | Yes – reduces false alarms. |
| IVS (Perimeter Protection) | Tripwire; Intrusion. |
| Smart Tracking | Auto Tracking Lite – automatically follows moving targets. |
| Active Deterrence – Light Warning | Warm light flashing – duration 5–30 s, frequency high/medium/low adjustable. |
| Active Deterrence – Sound Warning | 3 built-in sound alarms; volume 0–100%; play times 1–10 adjustable. |
Video & Audio Specifications – 2 Streams, 120dB WDR
| Compression / Smart Codec | Smart H.265+; H.265; Smart H.264+; H.264B/H.264M/H.264H; MJPEG (sub stream 1) | |||
|---|---|---|---|---|
| Streaming Capability | 2 streams | |||
| Resolution Options | 8M, 6M, 5M, 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF | |||
| Video Frame Rate | Main stream: 3840×2160 @ 1–20 fps; 2688×1520 @ 1–25/30 fps Sub stream: 704×576 @ 1–25 fps (PAL) / 704×480 @ 1–30 fps (NTSC) |
|||
| Bit Rate Control / Bit Rate | VBR/CBR. H.264: 8–8192 kbps; H.265: 3–8192 kbps | |||
| WDR / Image Enhancements | 120 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Electronic Defog, Digital Zoom (16×), Image Rotation 180° | |||
| Audio | Built-in mic + speaker for two-way talk | Audio compression: PCM, G.711A, G.711Mu |
| Pan/Tilt Range | Pan: 0°–345°; Tilt: 0°–90° |
|---|---|
| Manual Control Speed | Pan: 0.1–34.5°/s; Tilt: 0.1–36.4°/s |
| Preset Speed | Pan: 0.1–33.8°/s; Tilt: 0.1–36.3°/s |
| Preset / Tour | 80 presets; 8 tours (up to 6 presets per tour; stay duration per preset: 60–360 sec; tour interval: 900–3600 sec) |
| Idle Motion / Power-off Memory | Preset; Tour | Yes |
Network, Storage & Cybersecurity
| Network Port | RJ-45 (10/100 Base-T) |
|---|---|
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; DDNS; IPv6; SSL; QoS; FTP; ICMP; IGMP; ARP; RTCP; RTP; RTMP |
| Interoperability | ONVIF (Profile S/G/T); CGI; SDK |
| Local Storage | Micro SD card (up to 512 GB); FTP |
| User/Host / Bandwidth | 20 users (total bandwidth 64 Mbps) |
| Management Software / Browser | DMSS; NVR; IE7+, Chrome, Firefox, Safari; iOS/Android mobile app |
I/O Interfaces & Alarm
| Audio I/O | 1 input (built-in mic) + 1 output (built-in speaker) | |||
|---|---|---|---|---|
| Alarm Linkage | Capture; recording; audio; light | |||
| Alarm Event | Motion/tampering detection; audio detection; network/IP conflict; SD card status; storage space | |||
| Abnormal Sound Alarm | Yes |
| Power Supply | 12 VDC, 1A ±10% OR PoE (802.3af) | |||
|---|---|---|---|---|
| Power Consumption (PoE) | Basic: 3.6 W; Max (illuminator + PTZ): 9.5 W | Operating Temperature / Humidity | –30 °C to +55 °C (–22 °F to +131 °F) | ≤95% RH | |
| Protection Ratings | IP66 (weatherproof), TVS 2000V lightning/surge/voltage transient protection | |||
| Certifications | CE |
Physical Structure
| Casing Material | Metal + plastic |
|---|---|
| Product Dimensions | 153.5 mm × Φ129.3 mm (6.04" × Φ5.09") |
| Net Weight / Gross Weight | 0.8 kg (1.76 lb) / 1.2 kg (2.64 lb) |
| Power Adapter | Optional |
