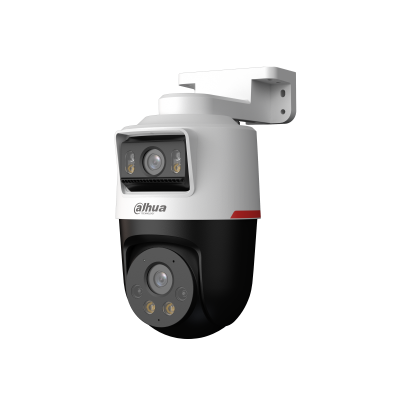

Dahua IPC-PTS2249B-E2-S-PV-PRO 2+2 MP WizColor Active Deterrance Dual-lens Fixed-focal Pan & Tilt Network Cameras

Name: Dahua IPC-PTS2249B-E2-S-PV-PRO 2+2 MP WizColor Active Deterrance Dual-lens Fixed-focal Pan & Tilt Network Cameras
Brand: Dahua
SKU: IPC-PTS2249B-E2-S-PV-PRO
Price: 10000.00 USD
Availability: InStock

In stock

SKU: IPC-PTS2249B-E2-S-PV-PRO

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua IPC-PTS2249B-E2-S-PV-PRO 2+2 MP WizColor Dual-Lens PT Camera – Active Deterrence, F1.0, Two-Way Talk

Key Performance Highlights – Dual-Lens Pan-Tilt with WizColor & Active Deterrence

Dual Lenses, Double Protection: 2MP PT lens (electric pan/tilt) + 2MP fixed lens (manual adjustment) – cover two areas simultaneously, reducing blind spots.
WizColor 24/7 Full-Color Recording: F1.0 large aperture on both lenses delivers bright color images even in near darkness – no IR switching needed.
Active Deterrence: Warm light flashing (duration 5–30s, 3 frequencies) + 3 built-in voice alarms (plus custom imports) – proactively drives away intruders.
Deep Learning Human & Vehicle Detection: IVS (tripwire, intrusion) with classification; SMD Plus smart motion detection reduces false alarms.
Versatile Pan-Tilt Coverage: PT lens: electric pan 0–350°, tilt 0–90°; fixed lens: manual pan 0–326°, tilt -10–15° – wide-area security monitoring.
120dB True WDR & Smart Illumination: Handles challenging lighting; 30m warm light ensures optimal night visibility.
Two-Way Talk & Efficient Storage: Built-in mic and speaker for real-time communication; supports Micro SD up to 256 GB, Smart H.265+ encoding.
Rugged & Reliable: IP66 weatherproof, wide operating temperature –40°C to +50°C, TVS surge protection.

Camera Specification – Dual-Lens (PT + Fixed)

Image Sensor	Both channels: 1/2.9" CMOS
Max. Resolution	Both channels: 2MP – 1920 (H) × 1080 (V) – 1080p Full HD
ROM / RAM	128 MB / 256 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s – 1/100,000 s
Min. Illumination	0.0006 lux@F1.0 (Color)
S/N Ratio	>56 dB
Illumination Distance & Type	Warm light: up to 30 m (98.43 ft) – 4 warm light LEDs (shared)
Illuminator Control	Auto; Manual

Lens & DORI (F1.0 Fixed Lenses)

Lens Type & Focal Length

Both channels: Fixed-focal 3.6 mm, M12 mount, F1.0

Field of View

Both: H: 81°, V: 44°, D: 95°

Close Focus Distance

Both: 1.7 m (5.58 ft)

Iris Control

Fixed

DORI Distance (EN-62676-4)

Channel	Detect	Observe	Recognize	Identify
PT Lens / Fixed Lens	55.7 m (182.74 ft)	22.3 m (73.16 ft)	11.1 m (36.42 ft)	5.6 m (18.37 ft)

Note: Optical detection distances per EN-62676-4; intelligent function distances may vary.

WizSense Intelligence & Active Deterrence

IVS (Perimeter Protection)	Intrusion, tripwire – supports vehicle and human classification.
SMD	SMD Plus – smart motion detection with human/vehicle filtering.
Smart Search	Works with Smart NVR for refined intelligent search and event extraction.
Active Deterrence – Light Warning	Warm light flashing – flash/solid on duration 5–30 s, frequency high/medium/low adjustable.
Active Deterrence – Sound Warning	3 built-in sound alarms + supports custom voice imports; volume 0–100%; play times 1–10 adjustable.

Video & Audio Specifications – 2 Streams per Channel

PT & Mechanical Specifications – Dual Motion

Compression / Smart Codec	Smart H.265+; H.265; Smart H.264+; H.264; H.264H; H.264B; MJPEG (sub stream only)
Streaming Capability	2 streams per channel (total encoding capacity shared)
Resolution Options	1080p, 1.3M, 720p, D1, VGA, CIF (both channels)
Video Frame Rate	Main stream: 1080p @ 1–25/30 fps (each channel) Sub stream: D1/VGA/CIF @ 1–25/30 fps
Bit Rate Control / Bit Rate	VBR/CBR. H.264: 32–4096 kbps; H.265: 12–4096 kbps
WDR / Image Enhancements	120 dB True WDR, BLC, HLC, 3D NR, ROI (4 areas), Smart Illumination, LDC, Mirror, Image Rotation (0/90/180/270° for 1080p and lower)
Privacy Masking	4 areas
Audio	Built-in mic + speaker for two-way talk \| Audio compression: G.711a, G.711Mu, PCM, G.726

PT Lens (Electric)	Pan: 0°–350°, Tilt: 0°–90° Manual control speed: Pan 0.1–55.4°/s, Tilt 0.1–29.3°/s Preset speed: Pan 55.4°/s, Tilt 29.3°/s Presets: 300, Tours: 8 (up to 32 presets per tour), Power-off memory: Yes Idle motion: Tour, Preset
Fixed Lens (Manual)	Pan: 0°–326°, Tilt: –10° to +15° (manual adjustment)

Network, Storage & Cybersecurity

Alarm Events & Power

Network Port	RJ-45 (10/100 Base-T)
Network Protocols	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
Interoperability	ONVIF (Profile S/G/T); CGI; SDK
Local Storage	Micro SD card (up to 256 GB); FTP; SFTP; NAS
User/Host / Bandwidth	20 users (total bandwidth 48 Mbps)
Cybersecurity	Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 certification; syslog; HTTPS; 802.1x; Trusted boot/execution/upgrade; Session security
Management Software / Browser	Smart PSS Lite; DSS; DMSS; IE, Chrome, Firefox; Android/iOS mobile app

Environment & Protection

Alarm Event	No SD card; SD card full/error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Power Supply	12 VDC (±30%) OR PoE (802.3af)
Power Consumption	Basic: 2.3 W (12 VDC) / 3.1 W (PoE) Max (AI + WDR + illuminator + PT + speaker): 9.2 W (12 VDC) / 10.5 W (PoE)

Physical Structure

Operating Temperature	–40 °C to +50 °C (–40 °F to +122 °F)
Operating Humidity	≤95% (RH, non-condensing)
Protection	IP66 (weatherproof)
Certifications	CE-LVD (EN62368-1); CE-EMC (2014/30/EU)

Casing Material	Plastic
Product Dimensions	159.4 mm × 110.1 mm × 210 mm (6.28" × 4.33" × 8.27") (L×W×H)
Net Weight / Gross Weight	0.62 kg (1.37 lb) / 0.87 kg (1.92 lb)
