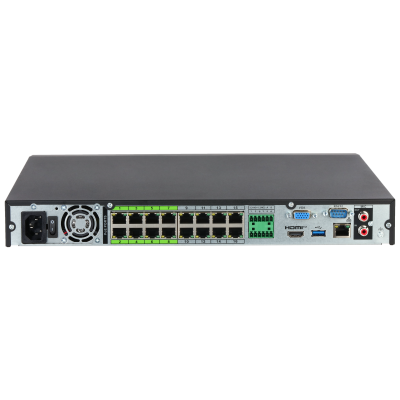

Dahua NVR5216-16HP-XI/Pro 16CH 1U 16PoE 2HDDs WizMind Network Video Recorder – 512Mbps Bandwidth, 8K HDMI Output, AI by Recorder, ePoE Support
High‑Density 16‑Port PoE NVR – Powerful AI Processing & Compact 1U Design
- High‑Performance Recording: 16‑channel access, 512 Mbps incoming/recording and 384 Mbps outgoing bandwidth. Supports up to 32MP resolution cameras.
- Integrated 16‑Port PoE (ePoE Ready): 16 independent PoE ports (10/100 Mbps) with total output power of 200W. Ports 1‑8 support ePoE for long‑distance transmission (up to 800m). Each port max 25.5W (IEEE 802.3af/at).
- Massive Storage Capacity: 2 SATA HDD bays, each supporting up to 20TB (total 40TB) – ideal for long‑term retention.
- 8K Ultra‑HD Video Output: HDMI supports 7680×4320 resolution for stunning detail on large displays. Heterogeneous video source output for HDMI and VGA.
- AI by Recorder (Xinghan Large‑Scale Models): Up to 16‑channel face detection, 16‑channel perimeter protection, 16‑channel video metadata (23 attributes), and 16‑channel AcuPick – all processed locally on the NVR (performance varies with Xinghan models enabled/disabled).
- Full‑Channel AcuPick & WizSeek: With AcuPick‑enabled cameras, supports full‑channel WizSeek. For standard cameras, enabling AI by NVR provides up to 8‑channel WizSeek. Modeling capacity of 432,000 targets per day.
- Rich I/O & Alarm Integration: 4 alarm inputs, 2 alarm outputs, 1‑ch audio output, RS‑485, RS‑232, 2 USB ports (1 front USB 2.0, 1 rear USB 3.0).
System & AI Performance
| Main Processor | Industrial-grade processor |
|---|---|
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Recorder (Local AI) | Face detection & recognition; video metadata (human/motor vehicle/non‑motor vehicle); perimeter protection; SMD; AcuPick; WizSeek; Text‑Defined Alarming |
| AI by Camera | Face detection/recognition; video metadata; perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map; PPE detection; AcuPick |
| AcuPick Performance (AI by Recorder) | Xinghan enabled: 8 channels (1080p) Xinghan disabled: 16 channels (1080p) |
AcuPick Performance (AI by Camera) | All channels (36 targets/s) |
| WizSeek Performance | With AcuPick cameras: full‑channel WizSeek With normal cameras + AI by NVR: up to 8‑channel WizSeek Modeling capacity: 432,000 targets/day |
Search Language | English; TradChinese; Korean |
Perimeter Protection (AI by Recorder)
| Performance | 16 channels, 10 IVS rules per channel |
|---|---|
| Performance (AI by Camera) | All channels (32 targets/s) |
Face Detection & Recognition
| Face Attributes | 6 attributes |
|---|---|
| Face Detection (AI by Recorder) | Xinghan enabled: 8 channels (12 face images/s per channel) Xinghan disabled: 16 channels (12 face images/s per channel) |
| Face Detection (AI by Camera) | All channels (32 targets/s) |
| Face Database Capacity | Up to 20 databases, 200,000 images (44GB total) |
| Face Recognition (AI by Recorder) | 16‑channel FD (by camera) + FR (by recorder): 32 face images/s Xinghan enabled: 8‑channel FD+FR (video stream): 16 face images/s Xinghan disabled: 16‑channel FD+FR (video stream): 16 face images/s |
| Face Recognition (AI by Camera) | All channels (32 targets/s) |
Video Metadata & SMD
| Metadata Performance (AI by Recorder) | Xinghan enabled: 8 channels, 23 attributes Xinghan disabled: 16 channels, 23 attributes |
|---|---|
| Metadata Performance (AI by Camera) | All channels (32 targets/s) | People Attributes | 9 human body attributes |
| Motor Vehicle Attributes | 9 attributes |
| Non‑motor Vehicle Attributes | 4 attributes |
| SMD Plus by Recorder | Xinghan enabled: Not supported Xinghan disabled: 16 channels (secondary filtering for human/vehicle) |
| SMD by Camera | All channels (64 targets/s) |
| ANPR by Camera | All channels (32 targets/s) |
|---|---|
| License Plate Database Capacity | Up to 20,000 plate numbers; blocklist and allowlist supported |
| Access Channel | 16 channels |
|---|---|
| Network Bandwidth | AI disabled: 512 Mbps incoming, 512 Mbps recording, 384 Mbps outgoing AI enabled: 200 Mbps incoming/recording/outgoing |
| Resolution Support | 32MP / 24MP / 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / 960p / D1 / CIF / QCIF |
| Decoding Capability (AI disabled) | 2‑ch 32MP@30fps; 3‑ch 24MP@30fps; 5‑ch 16MP@30fps; 6‑ch 12MP@30fps; 10‑ch 8MP@30fps; 13‑ch 6MP@30fps; 16‑ch 5MP@30fps | Decoding Capability (AI enabled) | 1‑ch 32MP@30fps; 1‑ch 24MP@30fps; 2‑ch 16MP@30fps; 4‑ch 12MP@30fps; 6‑ch 8MP@30fps; 8‑ch 6MP/5MP@30fps; 12‑ch 4MP@30fps; 16‑ch 1080p@30fps |
| Video Output | 1 VGA, 1 HDMI VGA: 1920×1080, 1280×1024, 1280×720 HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720 Heterogeneous source output for HDMI and VGA |
| Multi‑screen Display | Main screen: 1/4/8/9/16 Sub screen: 1/4/8/9/16 |
| Third‑party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG | Audio Compression | G.711a; G.711u; PCM; G726 |
| Multi‑channel Playback | Up to 16 channels |
|---|---|
| Record Mode | General; motion detection; intelligent; alarm; POS |
| Backup Method | USB device; network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Disk Group | Yes |
| Disk Interface | 2 SATA ports, each up to 20TB (total 40TB, depending on environment temperature) |
PoE & Network Interfaces
| PoE Ports | 16 ports (10/100 Mbps), IEEE 802.3 af/at, total output 200W, single port max 25.5W. Ports 1‑8 support ePoE (long distance up to 800m). |
|---|---|
| Network Port | 1 × 10/100/1000 Mbps Ethernet port (RJ‑45) | Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search; iSCSI |
| Mobile Phone Access | iOS; Android | Interoperability | ONVIF 24.12 (Profile T/S/G); CGI; SDK |
| Browser | Chrome; Firefox; IE |
| General Alarm | Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
|---|---|
| Anomaly Alarm | Disk errors (no disk, full, low space, low quota space; abnormal disk health); network disconnection/IP conflict/MAC conflict; fan speed abnormal; video loss/tampering; camera offline; audio detection |
| Intelligent Alarm | Face detection/recognition; video metadata; perimeter protection; license plate comparison |
| Alarm Linkage | Record; snapshot; local alarm output; IPC external alarm output; audio; buzzer; log; preset; email | Audio Input | 1‑channel RCA |
| Audio Output | 1‑channel RCA | Alarm Input | 4 channels |
| Alarm Output | 2 channels |
| RS‑232 | 1 |
Power, Environment & Physical
| Power Supply | 100–240 VAC, 50/60 Hz |
|---|---|
| Power Consumption | <15 W (without HDD); PoE total output 200W |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non‑condensing |
| Product Dimensions | 375.0 mm × 327.4 mm × 53.0 mm (14.76" × 12.89" × 2.09") (W×D×H) |
| Net Weight / Gross Weight | 2.72 kg (6.00 lb) / 4.06 kg (8.95 lb) |
