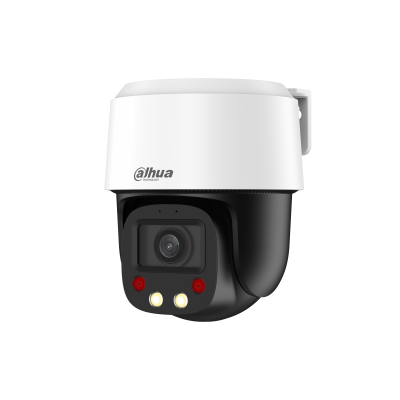

Dahua SD2C405NB-GNY-A-PV-S2 4MP 5x Smart Dual Light WizSense Network PTZ Camera

Name: Dahua SD2C405NB-GNY-A-PV-S2 4MP 5x Smart Dual Light WizSense Network PTZ Camera
Brand: Dahua
SKU: SD2C405NB-GNY-A-PV-S2
Price: 10000.00 USD
Availability: InStock

In stock

SKU: SD2C405NB-GNY-A-PV-S2

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua SD2C405NB-GNY-A-PV-S2 4MP 5x Smart Dual Light PTZ Camera – Active Deterrence, Auto Tracking Lite

Key Performance Highlights – 4MP PTZ with Active Deterrence & Smart Dual Light

4MP High-Quality Imaging & 5× Optical Zoom: 2.7–13.5 mm motorized zoom lens provides flexible framing from wide to tele.
Smart Dual Light for Night: 30 m IR + 30 m warm light – flexible illumination with intelligent control for optimal night visibility.
Active Deterrence: Warm light flashing (duration 5–30s, 3 frequencies) + 1 built-in voice alarm (plus 10 custom imports) – proactively drives away intruders.
Deep Learning Human & Vehicle Detection: Reduces false alarms by filtering irrelevant motion. Supports IVS (tripwire, intrusion).
Auto Tracking Lite & SMD 3.0: Automatically follows moving targets; smart motion detection with human/vehicle classification.
120dB True WDR & EIS: Handles challenging lighting conditions; electronic image stabilization for stable video.
Two-Way Talk & PT Control: Built-in microphone and speaker for real-time communication. Pan: 0°–345°, tilt: 0°–90°.
Rugged & Reliable: IP66 weatherproof, TVS 6000V surge protection, operates –30°C to +55°C.

Camera Specification – 4MP PTZ Camera

Image Sensor	1/2.8" CMOS
Max. Resolution	4MP – 2560 (H) × 1440 (V)
ROM / RAM	128 MB / 128 MB
Electronic Shutter Speed	1 s – 1/30,000 s
Scanning System	Progressive
Min. Illumination	Color: 0.05 lux@F1.6 (30 IRE); B/W: 0.005 lux@F1.6 (30 IRE); 0 lux (illuminator on)
Illumination Distance & Type	Smart Dual Light: 30 m IR + 30 m warm light Illuminator count: 2 IR + 2 warm light
Illuminator Control	Manual; auto; off

Lens & DORI Optics (5× Optical Zoom)

Focal Length / Aperture

2.7 mm – 13.5 mm (5× zoom) | F1.6–F3.0

Field of View

H: 96.73°–24.76°; V: 51.98°–13.91°; D: 110.58°–29.74°

Focus Control / Iris Control

Auto; Semi-auto; Manual | Fixed

Close Focus Distance

0.6 m (1.97 ft)

DORI Distance (EN-62676-4)

Zoom Range	Detect	Observe	Recognize	Identify
2.7–13.5 mm (Tele end)	250 m (820.21 ft)	98.7 m (323.82 ft)	50 m (164.04 ft)	25 m (82.02 ft)

Note: Optical detection distances per EN-62676-4; intelligent function distances may vary.

WizSense Intelligence & Active Deterrence

IVS (Perimeter Protection)	Tripwire; intrusion.
Human / Vehicle Detection	Yes – deep learning-based classification.
Smart Tracking	Auto Tracking Lite – automatically follows moving targets.
SMD 3.0	Smart Motion Detection with human/vehicle filtering.
Active Deterrence – Light Warning	Warm light flashing – duration 5–30 s, frequency high/medium/low adjustable.
Active Deterrence – Sound Warning	1 built-in sound alarm + supports 10 custom voice imports; volume 0–100%; play times 1–10 adjustable.

Video & Audio Specifications – 2 Streams, 120dB WDR

Compression / Smart Codec	Smart H.265+; H.265; Smart H.264+; H.264B/H.264M/H.264H; MJPEG (sub stream 1)	Streaming Capability	2 streams
Resolution Options	4M (2560×1440), 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
Video Frame Rate	Main stream: 4M/1080p/1.3M/720p @ 1–25/30 fps Sub stream 1: D1/VGA/CIF @ 1–25/30 fps
Bit Rate Control / Bit Rate	VBR/CBR. H.264: 96–8192 kbps; H.265: 38–8192 kbps
WDR / Image Enhancements	120 dB True WDR, BLC, HLC, 2D/3D NR, ROI, EIS, Electronic Defog, Digital Zoom (5.5×), Image Rotation 180°
Audio	Built-in mic + speaker for two-way talk \| Audio compression: PCM, G.711a, G.711Mu, G.726

PT & Mechanical Specifications

Pan/Tilt Range	Pan: 0°–345°; Tilt: 0°–90°
Manual Control Speed	Pan: 0.1–74°/s; Tilt: 0.1–36.4°/s
Preset Speed	Pan: 0.1–62°/s; Tilt: 0.1–36.3°/s
Preset / Idle Motion	300 presets; idle motion: preset
Power-off Memory	Yes

Network, Storage & Cybersecurity

Network Port	RJ-45 (10/100 Base-T)
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP Filter; RTMP
Interoperability	ONVIF (Profile S/G/T); CGI; SDK; P2P
Local Storage	Micro SD card (up to 256 GB); FTP
User/Host / Bandwidth	20 users (total bandwidth 64 Mbps)
Management Software / Browser	DMSS; DSS Pro; IE7+, Chrome, Firefox, Safari; iOS/Android mobile app

I/O Interfaces & Alarm

Audio I/O	1 input (built-in mic) + 1 output (built-in speaker)
Alarm Linkage	Capture; preset; recording; audio; send email
Alarm Event	Motion/tampering detection; audio detection; network/IP conflict; SD card status; storage space

Power, Environment & Protection

Physical Structure

Power Supply	12 VDC, 1.5 A ±10% OR PoE (802.3af)
Power Consumption	Basic: 5 W; Max (illuminator + PTZ): 12.95 W	Operating Temperature / Humidity	–30 °C to +55 °C (–22 °F to +131 °F) \| ≤95% RH
Protection Ratings	IP66 (weatherproof), TVS 2000V lightning/surge/voltage transient protection
Certifications	CE: EN55032/EN50130-4

Casing Material	Metal + plastic
Product Dimensions	155.5 mm × Φ129.6 mm (6.12" × Φ5.10")
Net Weight / Gross Weight	0.65 kg (1.43 lb) / 0.715 kg (1.58 lb)
Power Adapter	Optional
Note	Preset precision may vary by series; consult sales for high-precision requirements.
