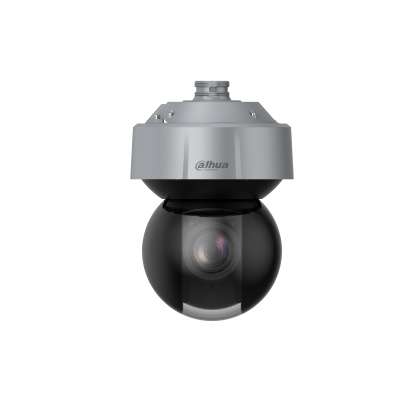

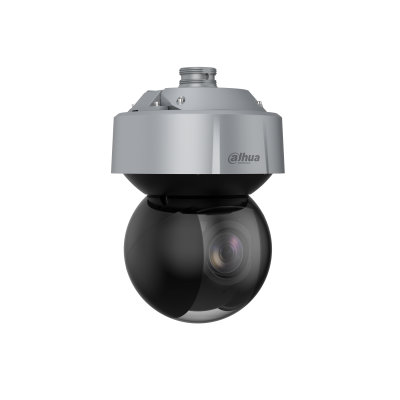

Dahua SD7A440FA-HNF 4MP 40X IR High-Speed Network PTZ Camera

Name: Dahua SD7A440FA-HNF 4MP 40X IR High-Speed Network PTZ Camera
Brand: Dahua
SKU: SD7A440FA-HNF
Price: 10000.00 USD
Availability: InStock

In stock

SKU: SD7A440FA-HNF

$10,000.00

Product variants

Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.

Ask Our Experts

Text Chat | Email |04407548784511

Order and Pricing Information for Surveillance Products

Minimum order amount: Orders must exceed $1000 or equivalent.
The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
Shipping costs: Shipping costs will be calculated separately and added to the total order value.
Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
Technical support: As authorized distributors, we provide official technical support.
Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.

Quality Certifications:

Dahua SD7A440FA-HNF 4MP 40x IR High-Speed PTZ Camera – 700°/s Pan, 120fps, 150dB WDR, NEMA 4X

Key Performance Highlights – Ultra-High-Speed PTZ + 120fps + 150dB WDR

Extreme High-Speed PTZ: Pan speed up to 700°/s, tilt up to 300°/s; preset speed 550°/s (pan). Smart pan-tilt correction with 0.05° positioning accuracy.
High Frame Rate Flexibility: 4MP @ 50/60 fps or 2MP @ 100/120 fps – ultra-smooth video for fast-moving targets.
40× Optical Zoom & 300m IR: 5.5–220 mm motorized zoom lens with 300 m IR illumination – exceptional long-range night surveillance.
150dB True WDR & Gyro EIS: Industry-leading wide dynamic range plus built‑in gyroscope electronic image stabilization for stable video under vibration.
Privacy Protection with Mosaic: Auto-masks detected faces or human bodies in real time – ideal for public or regulated environments.
Advanced Xinghan AI: Video metadata (10 vehicle/8 non-motor/6 face/8 body), face recognition (10,000 faces, 5 databases), IVS perimeter protection, AcuPick, WizTracking.
Rugged Protection: IP67/IK10, NEMA 4X support, TVS 6000V surge protection. Operates –40°C to +70°C.
Extreme DORI Distance: Tele end detect range up to 3,034 m (9,955 ft) – unmatched long-range identification.

Camera Specification – 4MP High-Speed PTZ

Image Sensor	1/1.8" CMOS
Max. Resolution	4MP – 2688 (H) × 1520 (V)
ROM / RAM	8 GB / 4 GB
Electronic Shutter Speed	1/1 s – 1/30,000 s
Scanning System	Progressive
Min. Illumination	Color: 0.001 lux@F1.6; B/W: 0.0001 lux@F1.6; 0 lux (IR on)
Illumination Distance & Type	IR 300 m (984.25 ft) – 6 IR LEDs
Illuminator Control	Zoom Prio; Manual; Auto; Off

Lens & DORI Optics (40× Optical Zoom)

Focal Length / Aperture

5.5 mm – 220 mm (40× zoom) | F1.6–F4.9

Field of View

H: 60.82°–2.26°; V: 36.24°–1.26°; D: 68.7°–2.59°

Focus Control / Iris Control

Auto; Semi-auto; Manual | Auto/Manual/Iris Priority

Close Focus Distance

0.5 m – 5 m (1.64 ft – 16.40 ft)

DORI Distance (EN-62676-4)

Zoom	Detect	Observe	Recognize	Identify
Wide (5.5 mm)	75.86 m (248.88 ft)	29.97 m (98.33 ft)	15.17 m (49.77 ft)	7.59 m (24.90 ft)
Tele (220 mm)	3,034.48 m (9,955.64 ft)	1,198.62 m (3,932.48 ft)	606.9 m (1,991.14 ft)	303.45 m (995.57 ft)

Note: Optical detection distances per EN-62676-4; intelligent function distances may vary.

Elite Intelligence – Xinghan AI with Privacy Protection

Video Metadata	Motor vehicle (10 attributes), non-motor vehicle (8 attributes), face (6 attributes), human body (8 attributes). Supports snapshot optimization and high-quality face upload.
IVS Perimeter Protection	Tripwire, intrusion, crossing fence, loitering, abandoned/missing object, fast moving, parking detection, people gathering, human/vehicle classification, linkage tracking, privacy protection.
Face Recognition	5 face databases (up to 10,000 faces), 6 attributes + 8 expressions, face cutout as one‑inch photo, batch import, similarity threshold, privacy protection.
Smart Tracking / AcuPick	WizTracking; AcuPick for fast human/vehicle search through live/recorded video.
Privacy Protection	Real-time mosaic masking – automatically covers detected faces or body parts in public scenes.

Video & Audio Specifications – 4K @60fps, 150dB WDR

Compression / Smart Codec

Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (sub stream 1 only)

Streaming Capability

3 streams

Resolution Options

4M (2688×1520), 4M (2560×1440), 3M, 1080p, 1.3M, 720p, D1, VGA, CIF

Video Frame Rate	Main stream: 4M/3M @ 1–50/60 fps; 1080p/1.3M/720p @ 1–100/120 fps Sub stream 1: D1/VGA/CIF @ 1–25/30 fps Sub stream 2: 1080p/1.3M/720p/CIF @ 1–25/30 fps *High frame rate supported under monitoring mode only.
Bit Rate Control / Bit Rate	VBR/CBR. H.264: 96–14848 kbps; H.265: 38–8960 kbps
WDR / Image Enhancements	150 dB True WDR, BLC, HLC, 2D/3D NR, ROI, Gyroscope EIS, Digital Zoom (16×), Image Rotation 180°
Privacy Masking	Up to 24 areas (max 8 in same view), selectable color block or mosaic
Audio Compression	PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

PTZ & Mechanical Specifications – 700°/s High Speed

Pan/Tilt Range	Pan: 0°–360° endless, smart pan-tilt correction; Tilt: –20°–+90°, auto flip 180°, smart pan-tilt correction (0.05° accuracy)
Manual Control Speed	Pan: 0.1–700°/s; Tilt: 0.1–300°/s
Preset Speed	Pan: 550°/s; Tilt: 300°/s
Preset / Tour / Pattern / Scan	300 presets, 8 tours (32 presets each), 5 patterns, 5 scans
Idle Motion / Power-off Memory	Preset/Pattern/Tour/Scan; Yes
PTZ Protocol	DH-SD; Pelco-P/D (auto recognition)

Network, Storage & Cybersecurity

Network Port	RJ-45 (10/100/1000 Base-T – Gigabit)
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; 802.1x; SSL; QoS; FTP; UPnP; SNMP; PPPoE; RTMP; Bonjour; NFS
Interoperability	ONVIF (Profile S/G/T/M); CGI; SDK
Local Storage	Micro SD card (max 1 TB); FTP; NAS
User/Host / Bandwidth	20 users (total bandwidth 64 Mbps)
Cybersecurity	WSSE, account lockout, HTTPS, IP/MAC filtering, security logs, trusted upgrade/boot
Management Software / Browser	DMSS; NVR; DSS Pro; IE9+, Chrome 41+, Firefox 50+, Safari 10+

I/O Interfaces & Alarm (7 Inputs / 2 Outputs)

Analog Output	1 channel CVBS (BNC)
RS-485	1 (baud rate 1200–9600 bps)
Audio I/O	1 channel LINE IN + 1 channel LINE OUT (bare wire)	Alarm Input / Output	7 inputs (digital, 0–5 VDC) + 2 outputs
Alarm Linkage	Snapshot, preset, tour, pattern, recording, alarm output, email, audio
Alarm Event	Motion detection, video tampering, audio detection, network/IP conflict, SD card status, storage space

Power, Environment & Protection

Power Supply	36 VDC; 2.23 A (±25%) OR PoE (802.3bt)
Power Consumption	Basic: 22 W; Max (illuminator + PTZ + heater on): 33 W
Power Output	Yes
Operating Temperature / Humidity	–40 °C to +70 °C (–40 °F to +158 °F) \| ≤95% RH
Protection Ratings	IP67, IK10, NEMA 4X (supported), TVS 6000V lightning/surge/voltage transient protection
Anti-corrosion Level	Basic Protection – designed for general use, applicable in areas with no specific anti-corrosion requirements
Certifications	CE: EN55035, EN IEC61000-3-2, EN55032, EN60950, EN62368-1

Physical Structure

Casing Material	Metal + plastic
Product Dimensions	221.66 mm × 218.42 mm × 320.8 mm (8.73" × 8.60" × 12.63") (L×W×H)
Net Weight / Gross Weight	4.96 kg (10.93 lb) / 8.21 kg (18.10 lb)
Power Adapter	Included
