DAHUA VTO0301R-W Wi-Fi Villa Door Station
Couldn't load pickup availability
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
![]() |
![]() |
Ask Our Experts
|
Please note the following important details when ordering surveillance products from CCTV-MALL: |
Quality Certifications:![]() |

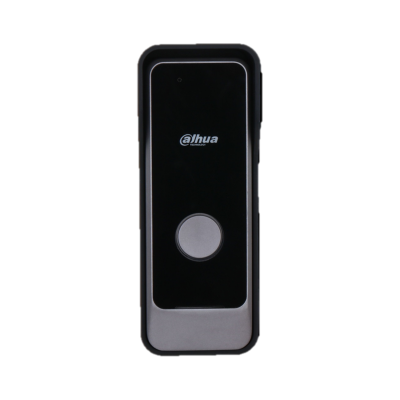

VTO0301R-W
Wi-Fi Villa Door Station
> PC and ABS material make it ideal for indoor and outdoor use.
> Offers two–way voice call with indoor monitors.
> Wi-Fi connection.
> IP65 rated.

|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR; 2D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
Built-in speaker |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Mode |
Two-way audio |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Enhancement |
Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
16 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Configuration |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wi-Fi |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Standard |
IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wireless Frequency Range |
2.4 GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing |
PC + ABS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Tamper Alarm |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Appearance color |
Light grey |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12–33 VDC, 1 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Adapter |
Optional |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Surface Mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE; FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
Included: Alarm power ribbon cable, rain cover |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
140.7 mm × 50.7 mm × 27 mm (5.54" × 2.00" × 1.06") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Protection |
IP65 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–40 °C to +55 °C (–40 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
0 m–3,000 m (0 ft–9,842.51 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
≤ 3 W (standby), ≤ 5 W (working) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.34 kg (0.75 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.13 kg (0.29 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
