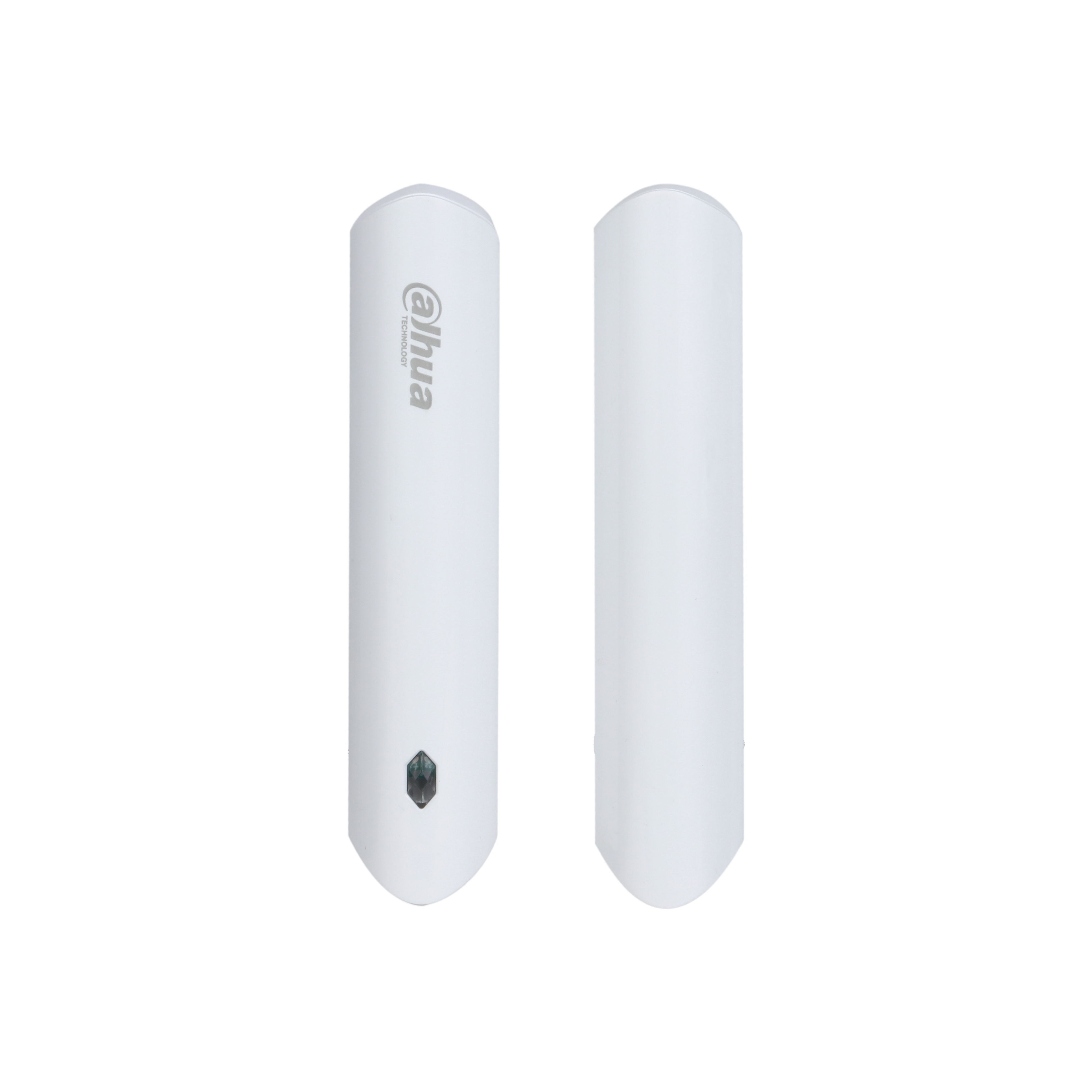

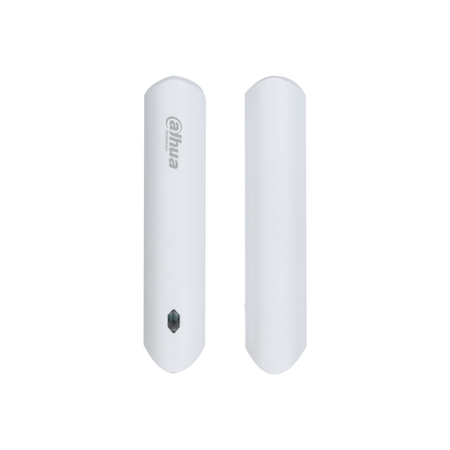

ARD324-W2(868)

Wireless Door Detector Plus

> Displays the temperature of the surrounding environment and supports the overheating alarm
> Frequency hopping and two-way communication technology ensure that communication is stable.
> Supports cloud update and automatically restores when cloud update fails.
> Supports jamming detection and communication encryption.
> Supports tilt and shock detection, and generates alarms when the event happens.



Product Data

Input/Output

Alarm Input

1(Normally Closed;Normally Open;Impulse Count)

Function

Indicator Light

1 × green alarm indicator

Button

1 × power switch

Remote Update

Cloud update

Low Battery Detection

Yes

Tamper

Yes

Measuring Range (Temperature)

Indoor: –15 °C to +65 °C (+5 °F to +149 °F)

Measuring Accuracy

±1 °C (±1.8 °F)

Technical

Sensor

Triaxial accelerometer, reed switch

Movement Distance

< 40 mm (1.57")

Test Mode

Yes

Scenario

Non-metal doors

Operating Current

12 uA

Alarm Current

2.3 mA

Wireless

Carrier Frequency

433.1 MHz–434.6 MHz

Communication Mechanism

Two-way

Communication Distance

Up to 1000m(3280.84ft) in an open space

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

CR123A × 1

Battery Life

If triggered twice a day with a battery efficiency of 70%:

3 years (The external input type is NO)

1.5 years (The external input type is NC)

Power Consumption

104mW

Operating Temperature

Indoor: –10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

10%–90% (RH)

Product Dimensions

100.2 mm × 20.8 mm × 20.3 mm (3.94" ×  0.82" × 0.80")

Packaging Dimensions

135.0 mm × 98.5 mm × 27.8 mm (5.32" ×  3.87" × 1.09")

Net Weight

70 g (0.15 lb)

Gross Weight

115 g (0.25 lb)

Installation

Bracket mount

Casing Material

PC + ABS

Certifications

CE
