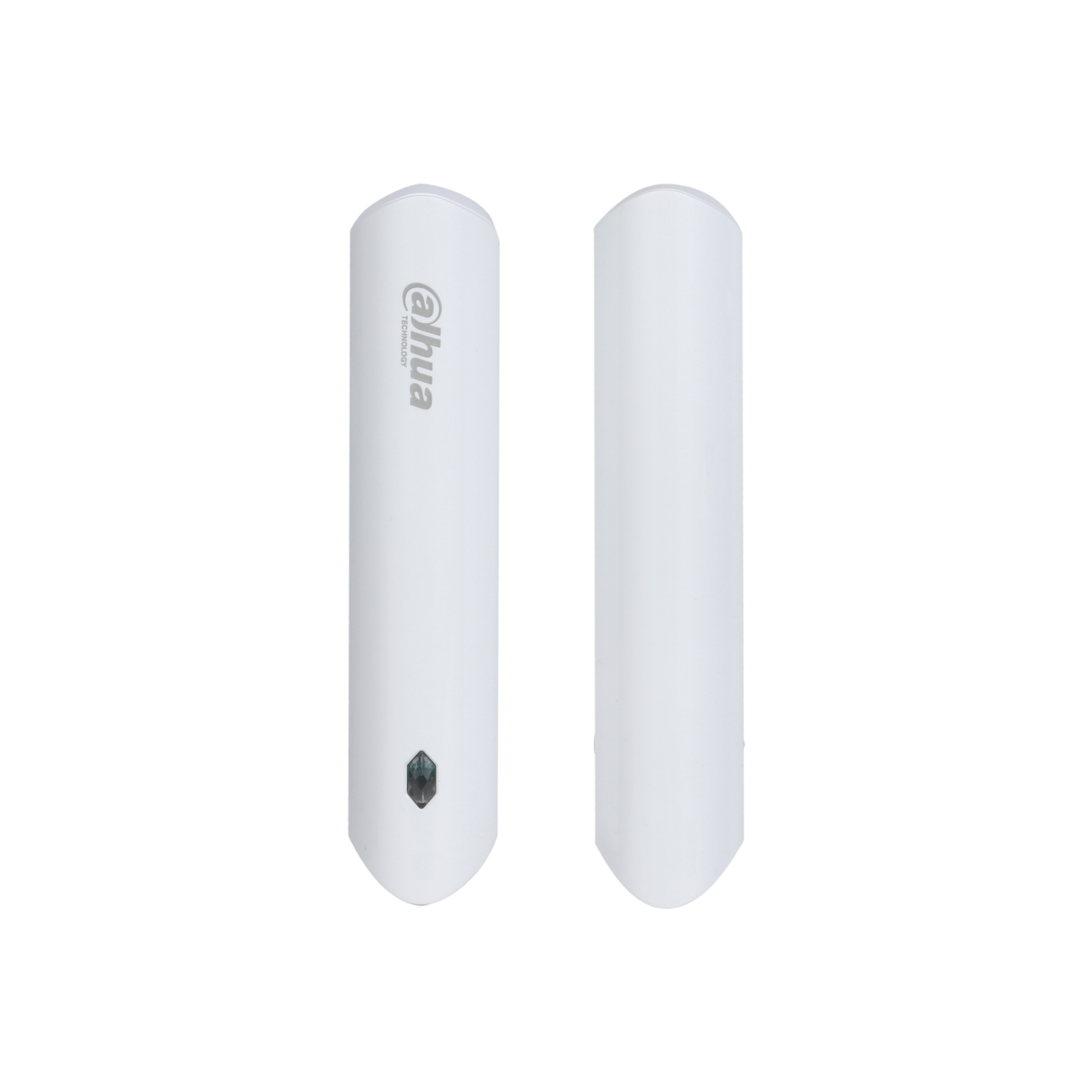

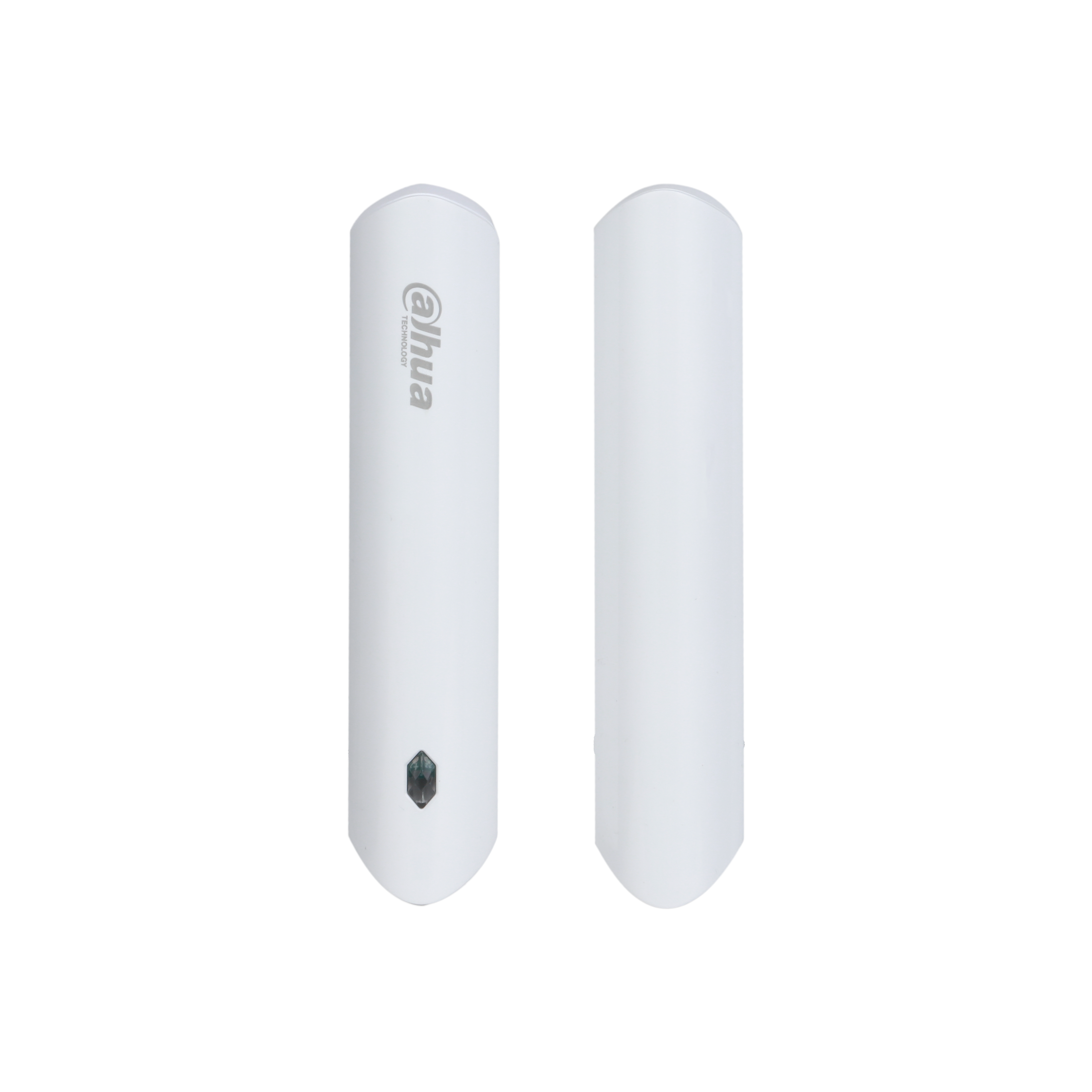

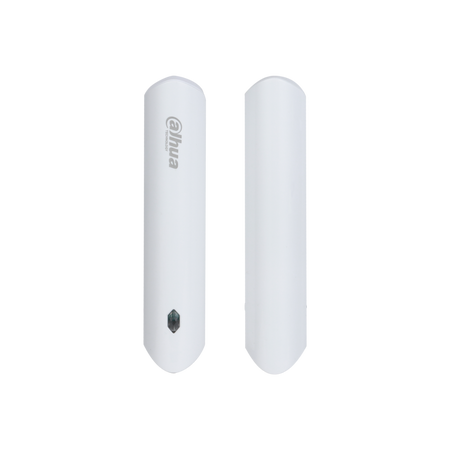

DAHUA ARD324-W2 Wireless Door Detector Plus

In stock
SKU: ARD324-W2
Regular price $1,000,000.00

Estimated delivery date: 2024-03-31

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



Wireless Door Detector Plus

> Displays the temperature of the surrounding environment and supports the overheating alarm.
> Frequency hopping and two-way communication technology ensure that communication is stable.
> Supports cloud update and automatically restores when cloud update fails.
> Supports jamming detection and communication encryption.
> Supports tilt and shock detection, and generates alarms when the event happens.

Product Data


Alarm Input

1(Normally Closed;Normally Open;Impulse Count)


Indicator Light

1 × green alarm indicator


1 × power switch

Remote Update

Cloud update

Low Battery Detection




Measuring Range (Temperature)

Indoor: –15 °C to +65 °C (+5 °F to +149 °F)

Measuring Accuracy

±1 °C (±1.8 °F)



Triaxial accelerometer, reed switch

Movement Distance

< 40 mm (1.57")

Test Mode



Non-metal doors

Operating Current

12 uA

Alarm Current

2.3 mA


Carrier Frequency

433.1 MHz–434.6 MHz

Communication Mechanism


Communication Distance

Up to 1000m(3280.84ft) in an open space

Encryption Mode


Frequency Hopping



Power Supply

CR123A × 1

Battery Life

If triggered twice a day with a battery efficiency of 70%:

3 years (The external input type is NO)

1.5 years (The external input type is NC)

Power Consumption

104 mW

Operating Temperature

Indoor: –10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity


Product Dimensions

100.2 mm × 20.8 mm × 20.3 mm (3.94" ×  0.82" × 0.80")

Packaging Dimensions

135.0 mm × 98.5 mm× 27.8 mm (5.32" ×  3.87" × 1.09")

Net Weight

70 g (0.15 lb)

Gross Weight

115 g (0.25 lb)


Bracket mount

Casing Material
