DAHUA ASI7213Y Face Recognition Access Control and Time Attendance Terminal

In stock
SKU: ASI7213Y
Regular price $1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement:For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



ASI7213Y

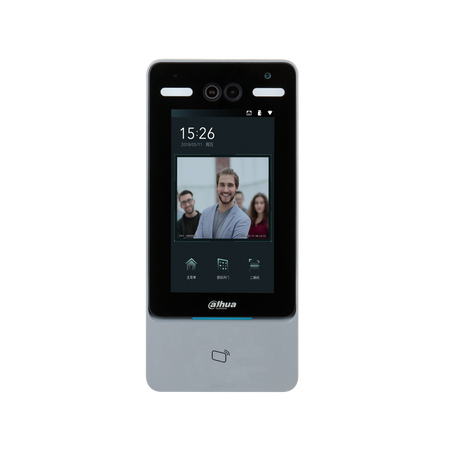

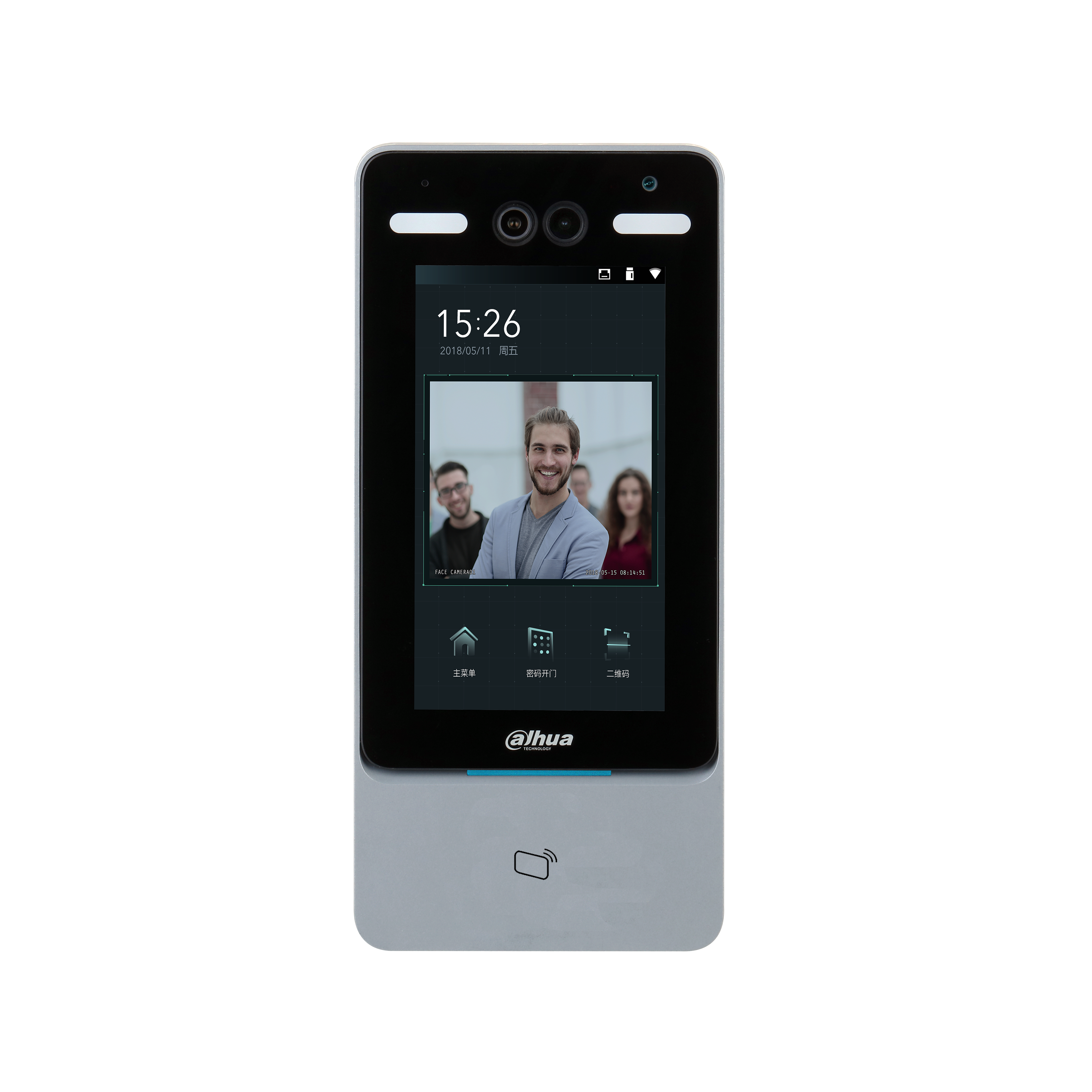

Face Recognition Access Control and Time Attendance Terminal

> 7 inch LCD, touchscreen, resolution 1024 (H) × 600 (V).
> Human face images, cards, and passowrds can be
> Support unlock through face, card (ID/IC card), password, and their
> With face detection box; the largest face among faces that appear at
> Face recognition distance is 0.3 m–2 m, human
> Face verification accuracy>99%; face comparison speed ≤0.5s per
> Profile faces can be recognized; face recognition angle can be
> Supports 30, 000 users, 30, 000 cards, 30, 000 passwords, and 50
> Support liveness detection.
> Supports duress alarm, tamper alarm, intrusion alarm, door contact
> Has six user levels: general users, patrol users, blacklist users, VIP
> Attendance records can be uploaded to the management platform.



Product Data

System Parameter

User Interface

7 inch touchscreen

Communication Method

TCP/IP, Wi-Fi

Liquid Crystal Display

7 inch, 350 cd/m²

Screen Resolution

1024 (H) × 600 (V)

Lens

2 MP double lens

WDR

Support

Light Compensation

Adjustable white light

Port

RS-485 Port

1

Alarm Input

2

Alarm Output

2

Lock Control

1 set

Door Contact

1 set

Exit Button

1

Tamper Switch

1 set

Network Interface

1

USB Port

1

Wiegand Protocol

26, 34, 66

Alarm Parameter

Tamper Alarm

Support

Duress Alarm

Support

Door Sensor Timeout Alarm

Support

Illegal intrusion

Support

Illegal Card Exceeding Time Alarm

Support

User Parameter

User Parameter

Support

Duress Card (user)

Support

Patrol Card (user)

Support

VIP Card (user)

Support

Guest Card (user)

Support

Card for the Disabled (user)

Support

Black and White List Setting

Support

Unlock Mode

Face recognition, password, card and their combinations

Card Reader Type

Model ASI7213Y: IC card

Model ASI7213Y-D: ID card

Card Reading Distance

1 cm–5 cm (0.03 ft–0.16 ft)

Human Height

1.1 m–2.4 m (3.61 ft–7.87 ft)

Face Recognition Configuration

Support

Face Recognition Distance

0.3 m–2 m (0.98 ft–6.56 ft)

Face Recognition Accuracy Rate

>99%

Face Recognition Speed

≤0.5s/face

Face Image Quantity

10000

Duress Card

Support

Duress Password

Support

Advertisement Display

Advertisements can be displayed

Network Update

Online update

OSDP Protocol

Support

Period List

128

Holiday Period

128

External Card Reader

1 set Wiegand and 1 set RS-485

Real-Time Monitor

Support

Remote Verification

Support

Multiple Verification

Support

Anti-Passback

Support

First Card Unlock

Support

Alarm Linkage

Support

System Parameter Configuration

Support

Rated Power

12V DC

Rated Current

2A

Normal Parameter

Installation method

Hang-mounted

Dimensions

283 mm × 130 mm × 35 mm (11.14" × 5.12” × 1.38")

Working Temperature

–10°C to + 55°C (+14°F to +131°F)

Working Humidity

5% RH–95% RH

Atmospheric Pressure

86 kPa–106 kPa

Power Consumption

15 W

Total Weight

1.5 kg (3.31 lb)

Environmental Requirement

Indoor
