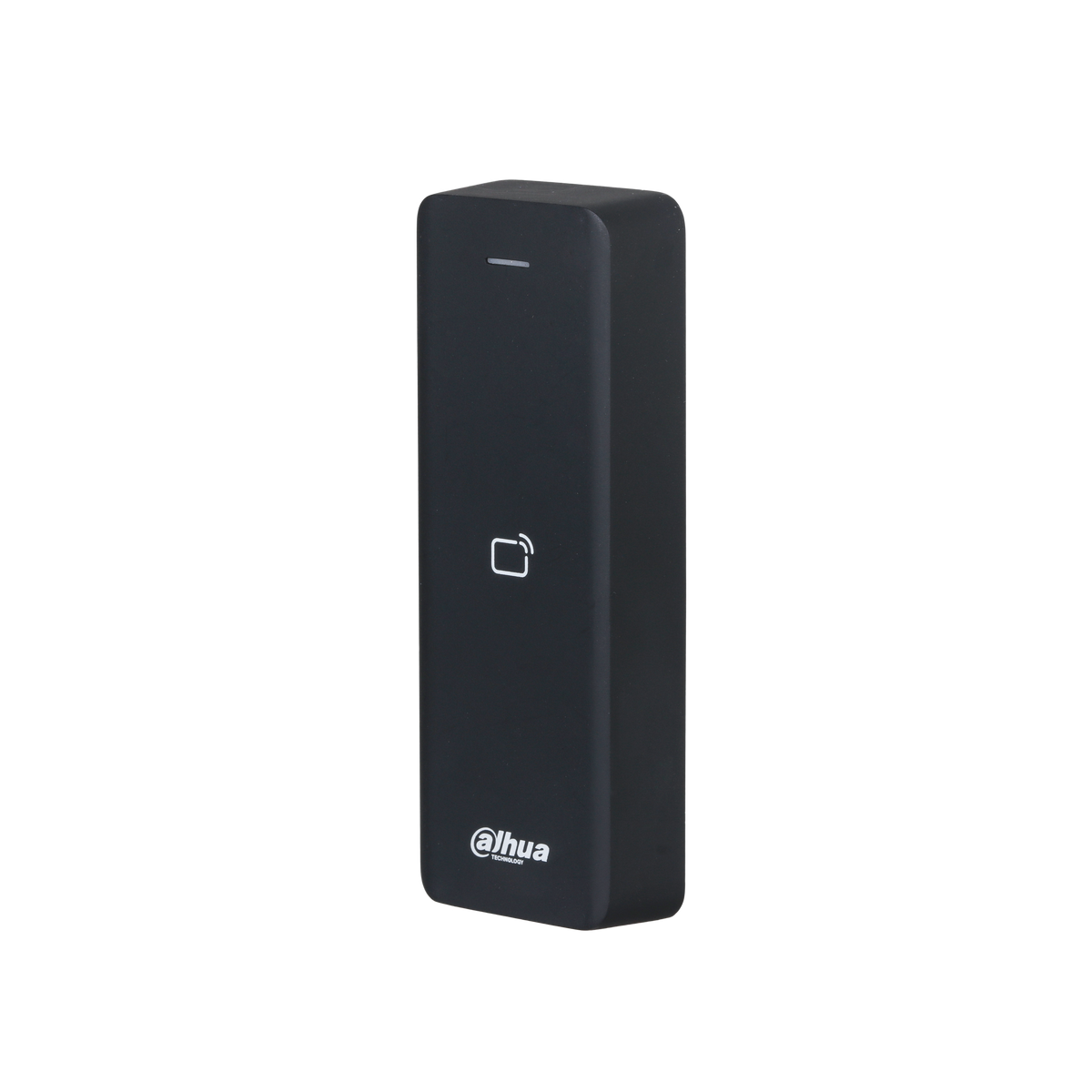

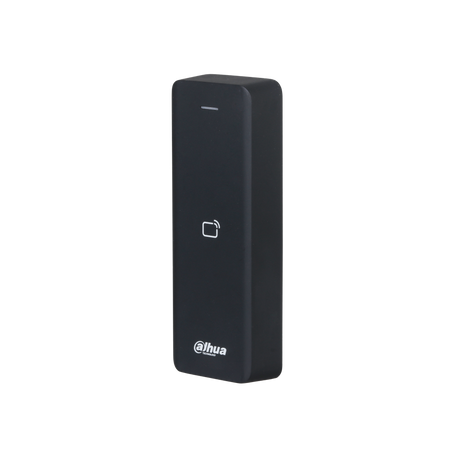

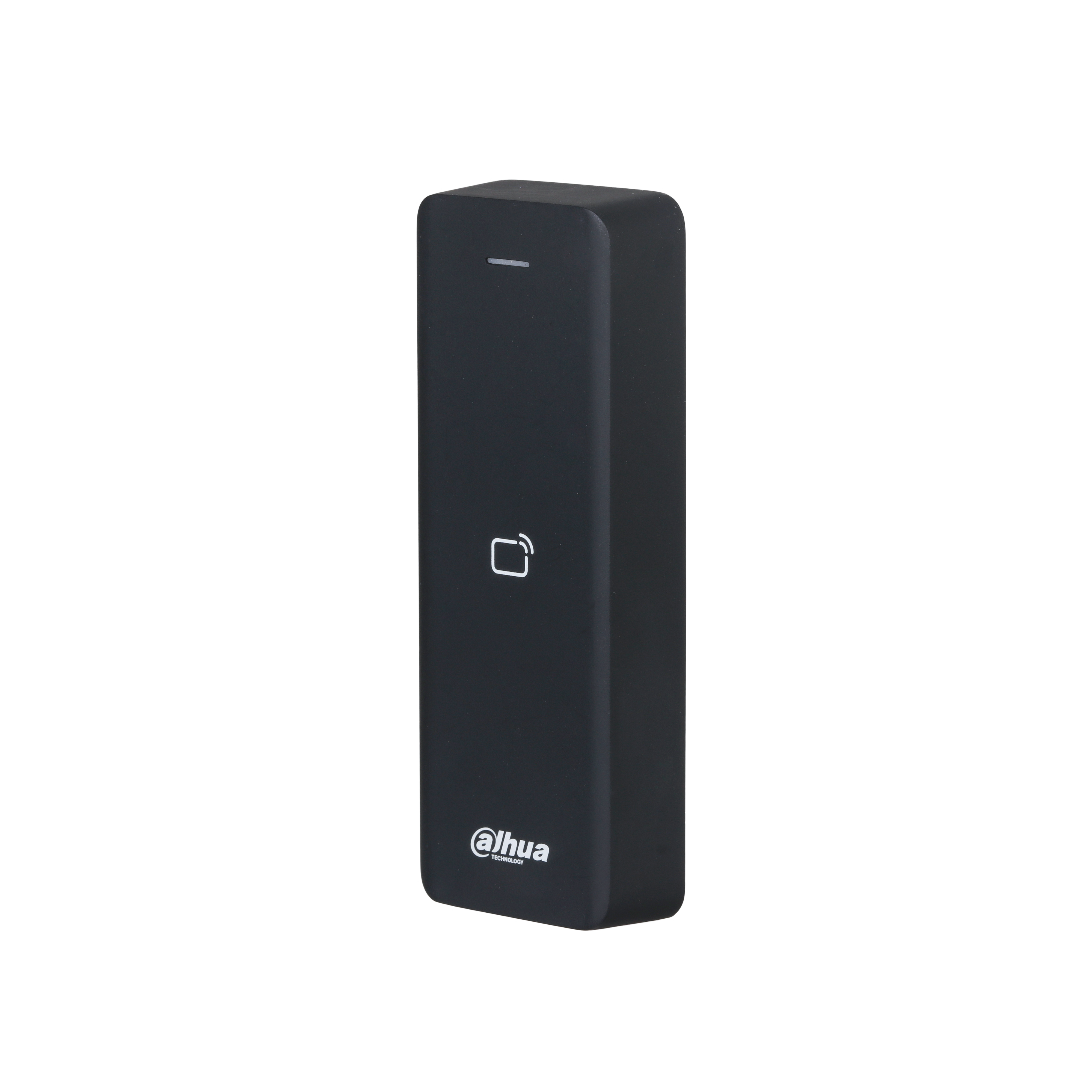

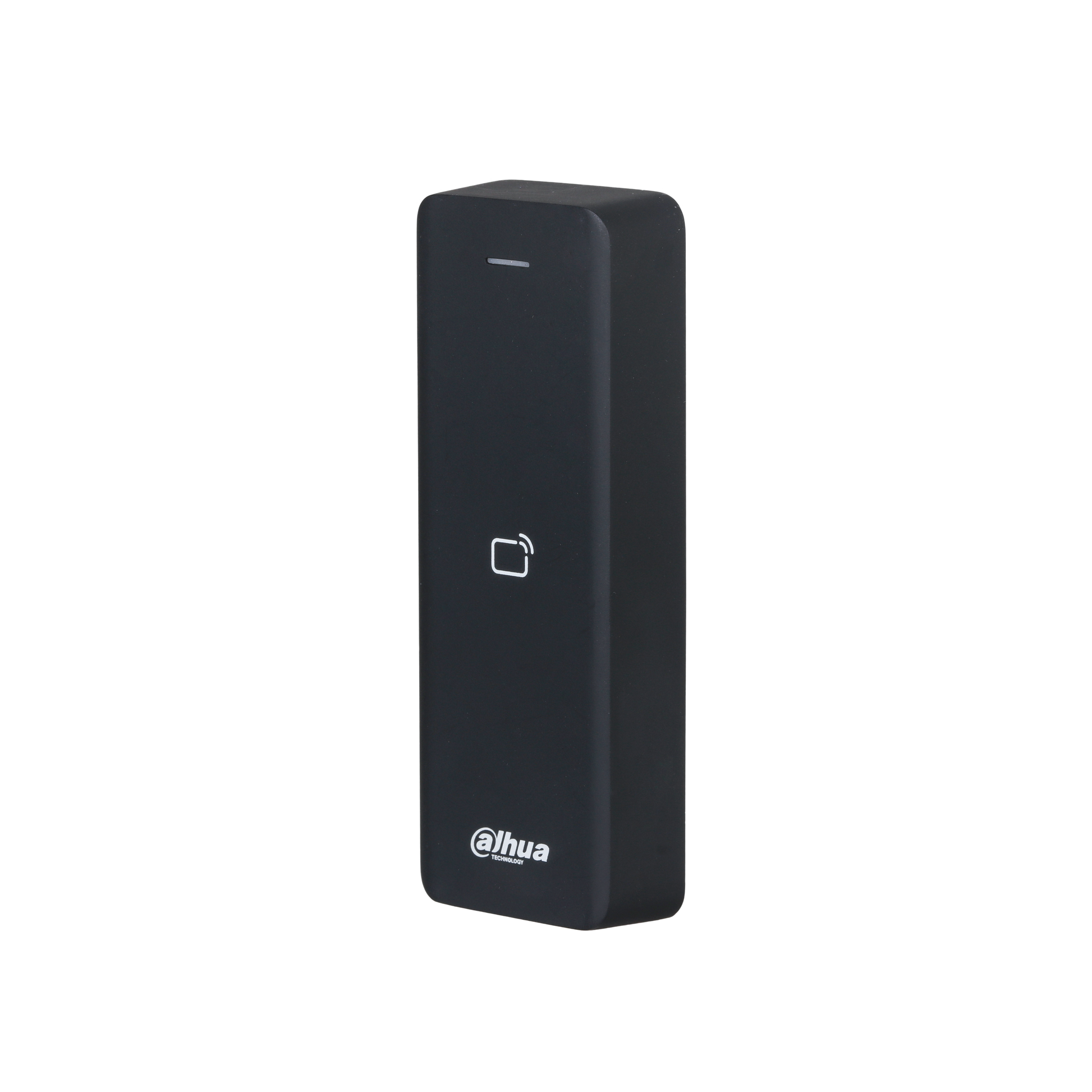

DAHUA ASR2100H-D Access Reader

In stock
SKU: ASR2100H-D
Regular price $25.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



ASR2100H-D

> Card unlock.

> RS-485 and Wiegand 34 communication (Wiegand-26 can be customized).

> Prompts using the buzzer and indicator light.

> Tamper alarm.

> Watchdog monitors and controls the device when it behaves abnormally, performing recoveries when necessary to ensure the long- term operation of the device. > All the connection ports have overcurrent and overvoltage protection.

> IP66 rated.


Product Data

System

OSDP Protocol

Yes

Basic

Product Type

Card reader

Buzzer

Yes

Casing Material

PC + ABS

Function

Unlock Mode

Card, password

Card Type

ID card

Performance

Response Time

0.1 s

Card Reading Distance

0 cm–6 cm (0"–2.36")

Port

RS-485

1

Wiegand

1 channel output

Alarm

Tamper Alarm

Yes

General

Power Supply

12 VDC, 0.5 A

Protection

IP66

Power Consumption

≤ 0.48 W (standby), ≤ 1.2W (working)

Product Dimensions

127 mm × 46 mm × 20 mm (5.00" × 1.81" × 0.79")

Packaging Dimensions

139 mm × 73 mm × 48 mm (5.47" × 2.87" × 1.89")

Operating Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Operating Humidity

≤ 95% (RH)

Operating Environment

Outdoor

Gross Weight

104 g (0.23 lb)

Installation

Surface Mount
