DAHUA IPMPGI-1032 Dahua Indoor Guidance Screen (Two-Layer)

In stock
Regular price $1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:

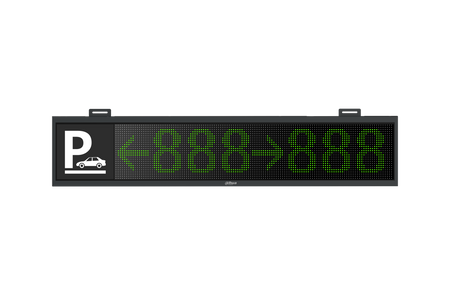

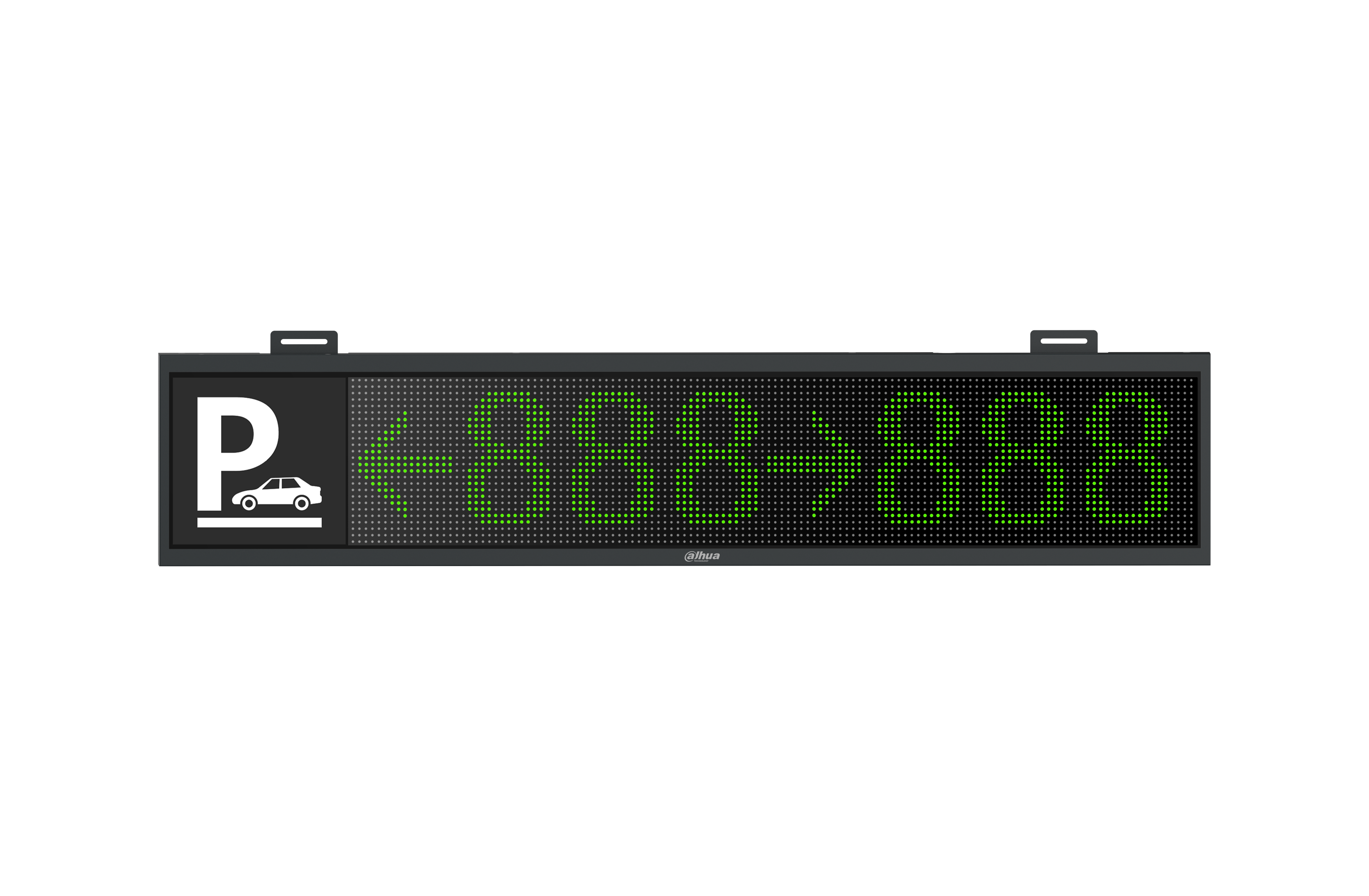

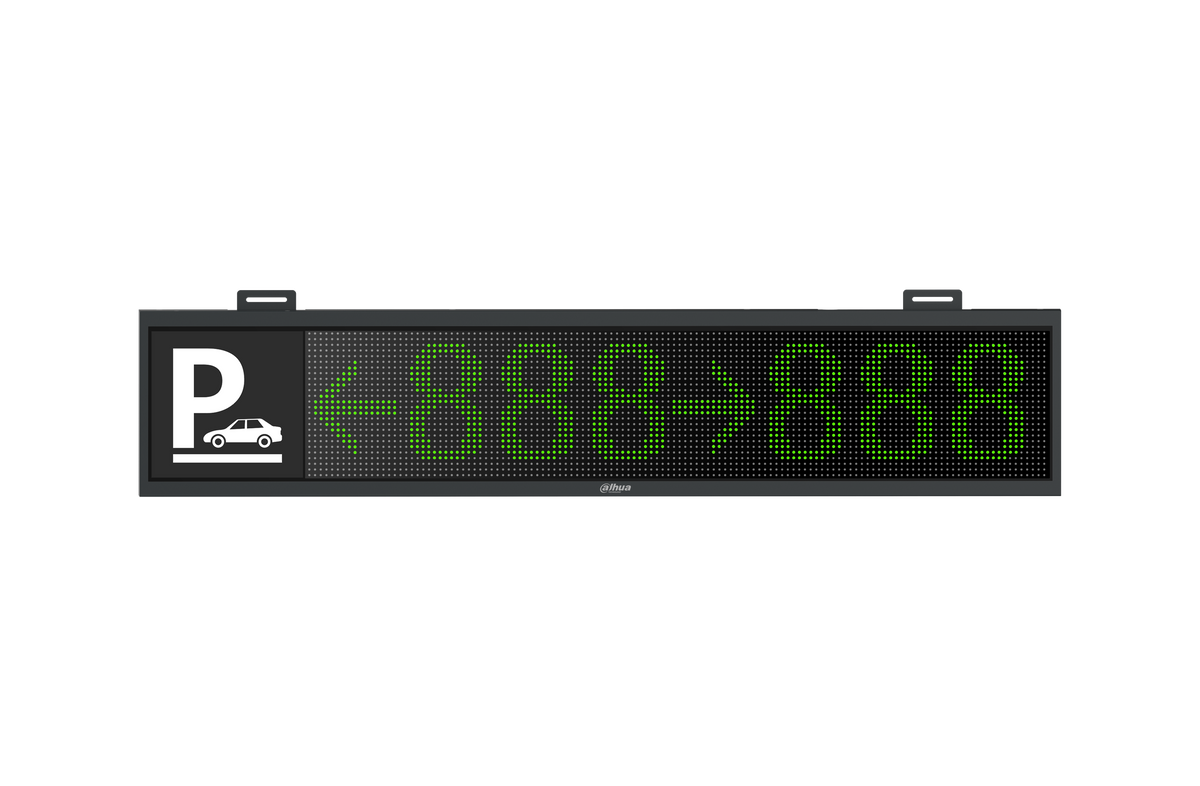

Dahua Indoor Guidance Screen (Two-Layer)

> Provides guidance for vehicles moving in two directions.
> Designed to be highly reliable with a wide view and strong brightness.
> Supports TCP/IP, and displaying the number of available parking spaces in real time.
> Displays the text and symbols in red, green and yellow.
> Displays English letters, Chinese characters, numbers and arrows, allowing you to customize the text.

Product Data


Display Screen

LED (display in red, green and yellow)

Display Screen Dimensions

976 mm × 244 mm (38.43" × 9.61") (L × W)

Display Contents

English letters, Chinese characters, numbers and arrows

Pixels Configuration


Screen Resolution

4,096 dots (128 × 32, 8 English letters per line), dot splicing: 7.62 mm (0.3")

Display Screen Lifespan

100,000 h


1000 cd/㎡


Network Port

1× 100 Mbps RJ-45 Ethernet port


Power Supply

100–240 VAC

Power Consumption

<40 W

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Storage Temperature

–35 °C to +60 °C (–31 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Humidity

10%–90%, non-condensing



Product Dimensions

1,245 mm × 65 mm × 277 mm (49.02" × 2.56" × 10.91") (L × W × H)

Packaging Dimensions

1,365 mm × 370 mm × 195 mm (53.74" × 14.57" × 7.68") (L × W × H)

Net Weight

8.5 kg (18.74 lb)

Gross Weight

10.2 kg (22.49 lb)


Ceiling mount
