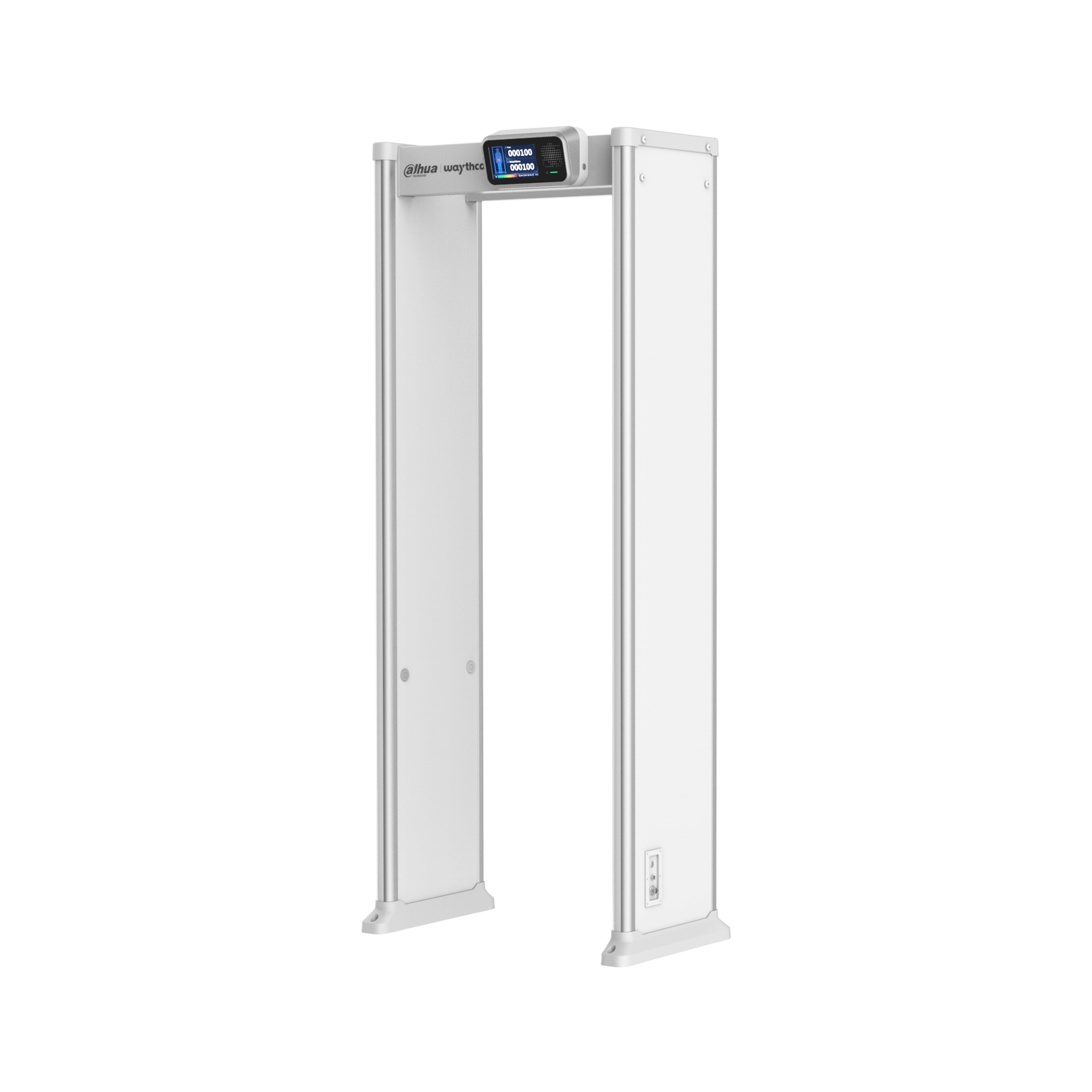

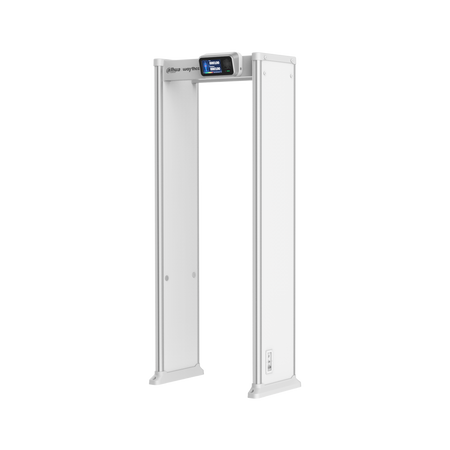

DAHUA ISC-D718-S2 Walk-through Metal Detector

In stock
SKU: ISC-D718-S2
Regular price $1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



ISC-D718-S2

> 6, 12, 18 detection zones with corresponding indicators

> Built-in traffic lights

> 7-inch full color touch screen LCD display

> Easy-to-install modular design

> Monitor and display the real-time signal strength of environmental interference

> Counts passing number, pass/return numbers, and alarm number

> Pass/Return statistics, alarm statistics, and searching by hour/day

> Displays the alarm position via human shape display

> Ultra-high sensitivity, minimum detect target: *CNY ten-cent coin

> Independent detection of ferromagnetic and non-ferromagnetic metals

> Innocuous metal object filtering

> 90 applications selectable

> Automatically searches operating frequency (100 levels available)

> Random alarm

> 2-level user management of Operator & administrator management
> Supports multi-language, real-time switching

> 2-channel alarm output

> Monitoring and configuration through the network, and managed by platform

> IR remote controller

> Supports SLA back-up battery



Product Data

Device

Detection Sensitivity

NILECJ-STD-0601.00 L1-L5

Precise Positioning

6, 12, 18 overlapping detection zones, bilateral transmission and receipt of detection signals; 2-panel indicator lights

Zone Indication

6, 12, 18 independent zones selectable, and multiple metal items can be located simultaneously

IR Sensor

Supports the switching of multiple start-stop modes for two-pair of IR sensor.
Infrared sensor can reduce false alarms; automatic alarm statistics and pass/return statistics

Adjustable Sensitivity

255 adjustable sensitivity levels in each detection zone (sensitivity increases by levels)

Security Level

Supports 1-100 selectable security level.

POST (Power On Self Test)

Power on self test.

Operating Frequency

Supports 1-100 selectable operating frequencys, and supports automatic frequency search.

Alarm Volume

Support 0-10 adjustable alarm volume, mute mode can be set.

Alarm Tone

Supports 9 kinds of selectable alarm tones, and independent tone for temperature alarm.

Remote Control

An IR remote controller with maximum remote control range of 2 m (6.56 ft)

Leakage Current

<0.5 mA, complying with safety requirements for electronic devices

Certifications

Certifications

GB 15210-2018
IEC 60068-2-1
IEC 60068-2-2
CE-LVD: Low Voltage Directive 2014/35/EU
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 18, Subpart B

Safety

ICNIRP 2010 Guidelines
ICNIRP 1998 Guidelines
EC directive 2013/35/EU
EC recommendation 1999/519/EC
IEEE C95.1:2005

Ports

Power Button

Power switch on both door panels, and metal detection power switch on the front panel

Indicator

One green indicator

Environmental Noise

Monitors and displays real-time signal strength of environmental interferences

RS-485

1

Alarm In/Out

2-channel input, and 2-channel output

Power Output

12 VDC

Detector Underside Power Port

Aviation power connector, 1 for each side.

Detector Underside Network Port

Waterproof RJ45 port, 1 for each side.

Regular Parameters

Tunnel Dimensions

2060 mm × 760 mm × 500 mm

Product Dimensions

2221 mm × 916 mm × 537 mm

Packaging Dimensions

2275 mm × 775 mm × 235 mm

Net Weight

40 kg (88.18 lb)

Gross Weight

50 kg (110.23 lb)

Operating Voltage

12 VDC, power adapter (included): 100–240 VAC,
50/60 Hz

Max. Power Consumption

13 W

Standby Power

9 W

Ingress protection rating

IP43, excluding external power supply

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

0%–95%

Storage Temperature

–20 °C to +65 °C ( –4 °F to +149 °F)

Storage Humidity

0–95% RH

Installation

Floor mounted
