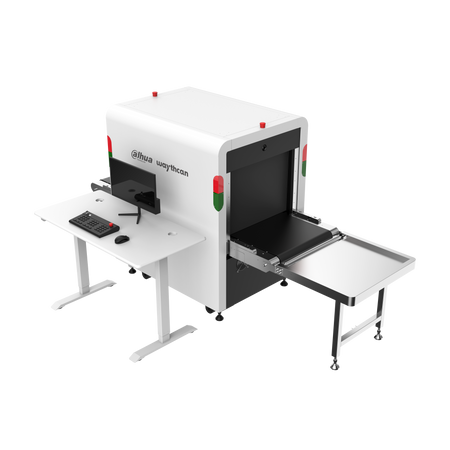

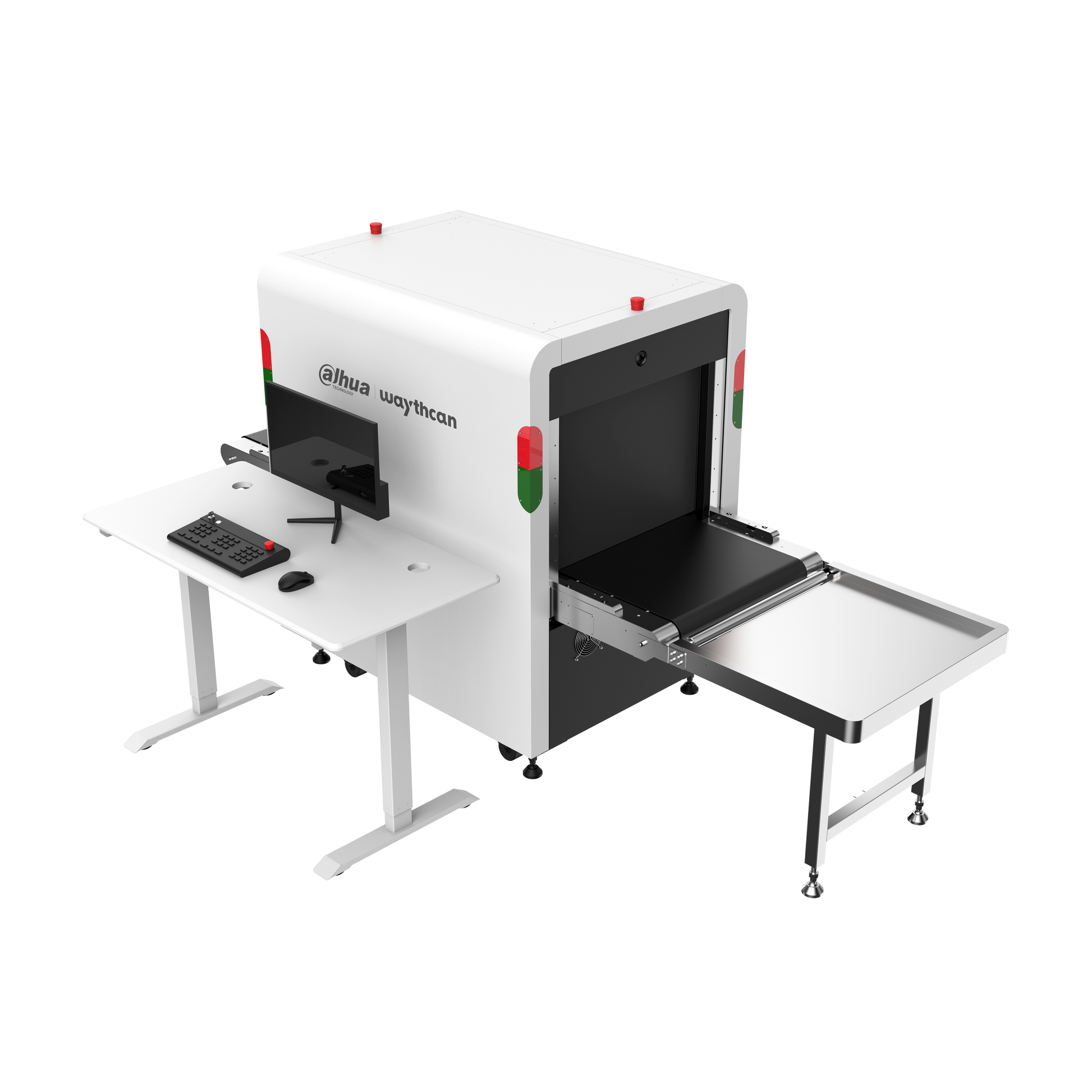

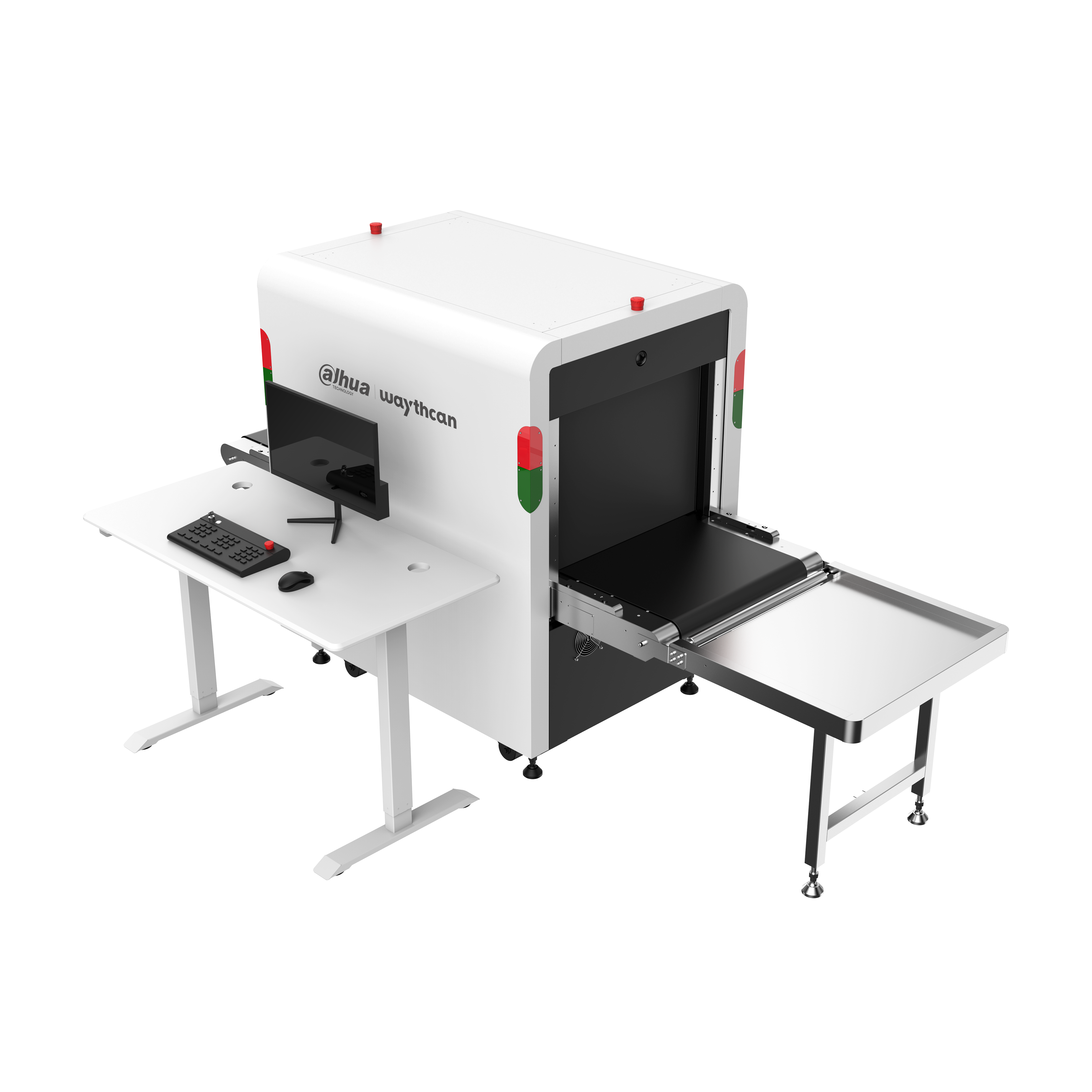

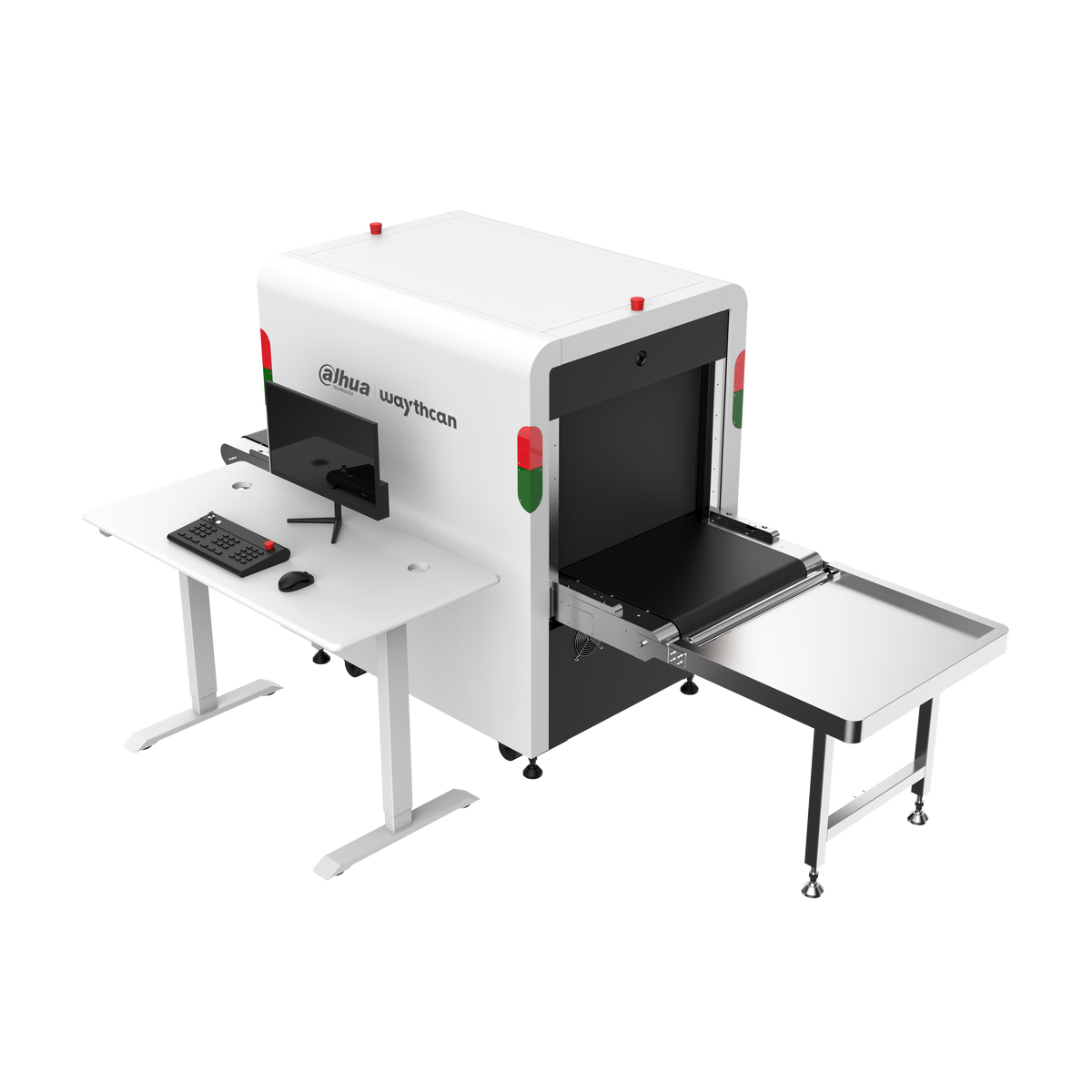

DAHUA ISC-M6550A Intelligent Security Screening Machine

In stock
SKU: ISC-M6550A
Regular price $1,000,000.00

Estimated delivery date: 2024-06-17

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



ISC-M6550A

Intelligent Security Screening Machine

> Uses X-ray to generator images of packaged items passing on the conveyor belt, and checks the shape and size of packaged items.
> Displays images of the packages with enhanced effects, such as Penetration enhancement, super enhancement, high density alert and image scanning.
> Security screening mode and video surveillance mode.
> Recognizes dangerous items such as knives, bottled liquid, spray cans, guns and lighters from scanned images.
> Set danger levels for suspect items and link alarms such as voice prompt, sound and light alarm and conveyor belt stopping.
> Displays AI overlay on suspected objects. The AI overlay box moves with the package.
> All detection results can be stored and generated as reports, which can be searched and exported according to danger level and time.
> 2 built-in cameras that respectively monitor the entry and exit of baggage and the package inspection process.
> Add ordinary network camera camera for live video, storage and playback. The cameras monitors the entire security inspection.
> Alarms are triggered by system errors such as no HDD, storage error, IP conflict and MAC conflict.
> Hard disk storage space management.
> User group management and multiple authorities setting; custom function, permission and password configuration.
> System operation and maintenance management, such as self diagnosis, log and online user search, and device updating.



Product Data

CPU

Intel quad-core processor

RAM

8G

Operating System

Embedded Linux OS

User Interface

Local GUI (full functions); Web interface

650 mm × 500 mm (25.59'' × 19.69'')

80 kv

Sealed oil bath with forced air

40AWG (0.0787 mm)

8 mm

≤ 0.9μSv/h (μGy/h)

≤ 65 dB

0.2 m/s

80 kg (176.36 lb)

approx. 666 mm (26.22'')

≤ 0.25 mA

ISO 1600 (33 DIN)

Real-time display of X-ray package image and camera image; real-time item intelligent analysis

Recognizes items and displays AI overlay; the AI overlay box moves with packages

Recognizes 21 types of objects: Guns, fireworks, spray

cans, knives, axes, scissors, nail polish, bottled liquids, glass bottles, thermos bottles, plastic bottles, handcuffs, nightsticks, brass knuckles, lighters, tools, electronic products, mobile phones, powerbanks, laptops and umbrellas

High risk, warning, and safe (supports custom configuration according to types of objects)

I/O alarm, voice prompt, platform alarm can be triggered according to danger levels

Stores as much as 1 million images with information on their danger levels and the types of objects detected. Original and analyzed images can both be viewed.

Search, play back, and export baggage images and linked videos according to time, objects type and more

Generate and export reports according to time and object types

USB/Network

Automatically detects system failures and prompts error codes

Enhancement functions include color/black and white, local enhancement, super enhancement, edge enhancement, image scanning, inverse, Penetration enhancement, light, dark, high density alert, AI overlay, vertical flip, pseudo color and more

Supports playback of 30 images

Zoom in X-ray images up to 64x. Drag the focus position using a mouse or direction- keys

Supports diagnosis of key components such as the detector, motor, IR sensor

Key function configuration; image display configuration (vertical flip and max zoom times), scan mode configuration (double direction, forward scan), baggage counter configuration and person-package linkage configuration

1-channel HDMI video output: Up to 1920 (H) × 1080 (V) @60 Hz

1 × 21.5" monitor

4-channel input (max 4K); 4-channel IPC

4-channel input (max 4K); 4-channel IPC; supports H.265, H.264, PCM and MPEG4

1-channel MIC Out (3.5 mm)

Supports up to 6 T SATA disks and configures 1 T disk by default

1 × RJ-45 10M/100M/1000M self-adaptive Ethernet ports; 2 × RJ-45 10M/100M Ethernet ports

HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, IP Filter, IP Search (Support Dahua IP camera, DVR and more)

ONVIF, SDK and more

RS 232 Port

1-channel RS 232 port

Power port

1-channel port for monitor power supply
12 V 1A power output

USB Port

2-channel USB3.0 for controlling the operation keyboard and mouse

Display Port

2-channel HDMI outputs (same source)

Alarm Port

2-channel alarm output; 2-channel alarm input

Emergency Stop Button

2 (on the machine body)

Power Button

1 (on the machine top)

Key Switch

1 (on the machine top)

Indicator light

On the machine:
Power indicator: Turns solid green when the machine is working and flashes during updates and when an error occurs
X-ray indicators: the red light is always on when X-ray is turned on, but not when X-ray is turned off
Key switch indicator: The green light is always on when the key is turned to on, but not on when the key is turned to off

Power Supply

220–240 VAC, 50/60 Hz; 100–130 VAC, 50/60 Hz (optional)

Typical Power Consumption

220 W

Maximum Power Consumption

650 W

Intelligent Temperature Control

Detects the temperature of main board and HDD and automatically adjusts fan speed to make it work stably and quietly

Operating Temperature

0 °C to +45 °C (32 °F to +113 °F)

Operating Humidity

0%–95% RH (non-condensing)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

0%–95% RH (non-condensing)

Dimensions

2,024 mm × 915.6 mm × 1401.8 mm (79.69'' × 36.05'' × 55.19'')

Package Size

2175 mm × 1195 mm × 1630 mm (85.63'' × 47.05'' × 64.17'')

Net Weight

420 kg (925.94 lb)

Gross Weight

520 kg (1,146.4 lb)

Installation Mode

Floor installation

Control Console Size

1200 mm × 750 mm × 600 mm (47.2" × 29.5" × 23.6")

Control Console Package Size & Weight

1276 mm × 376 mm × 200 mm (50.24"×14.80"×7.87"), 38.5 kg (84.88 lb)
