DAHUA KTA04 Video Intercom KIT

In stock
SKU: KTA04
Regular price $70.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:

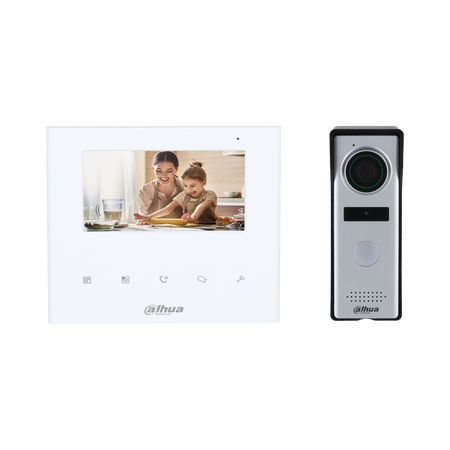

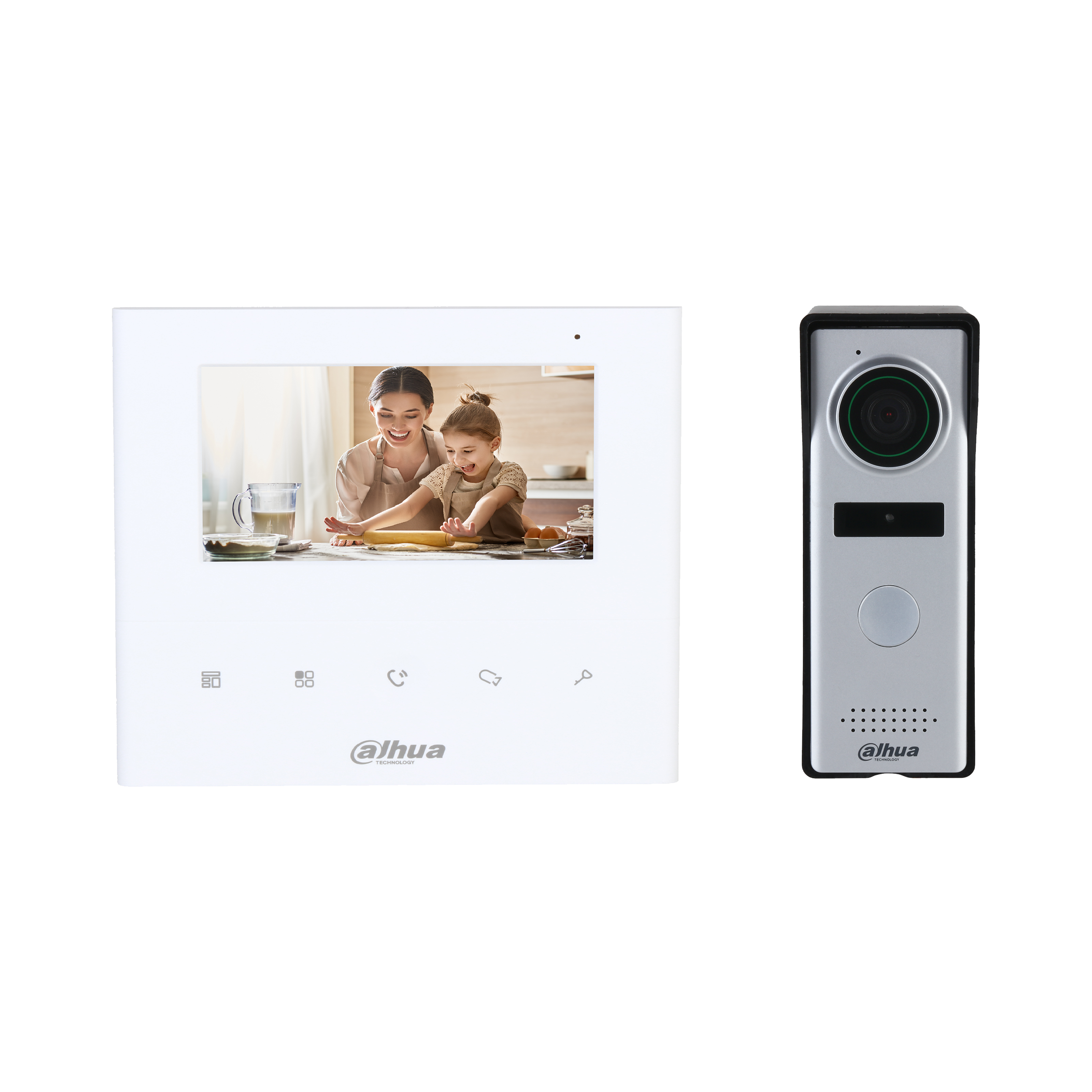

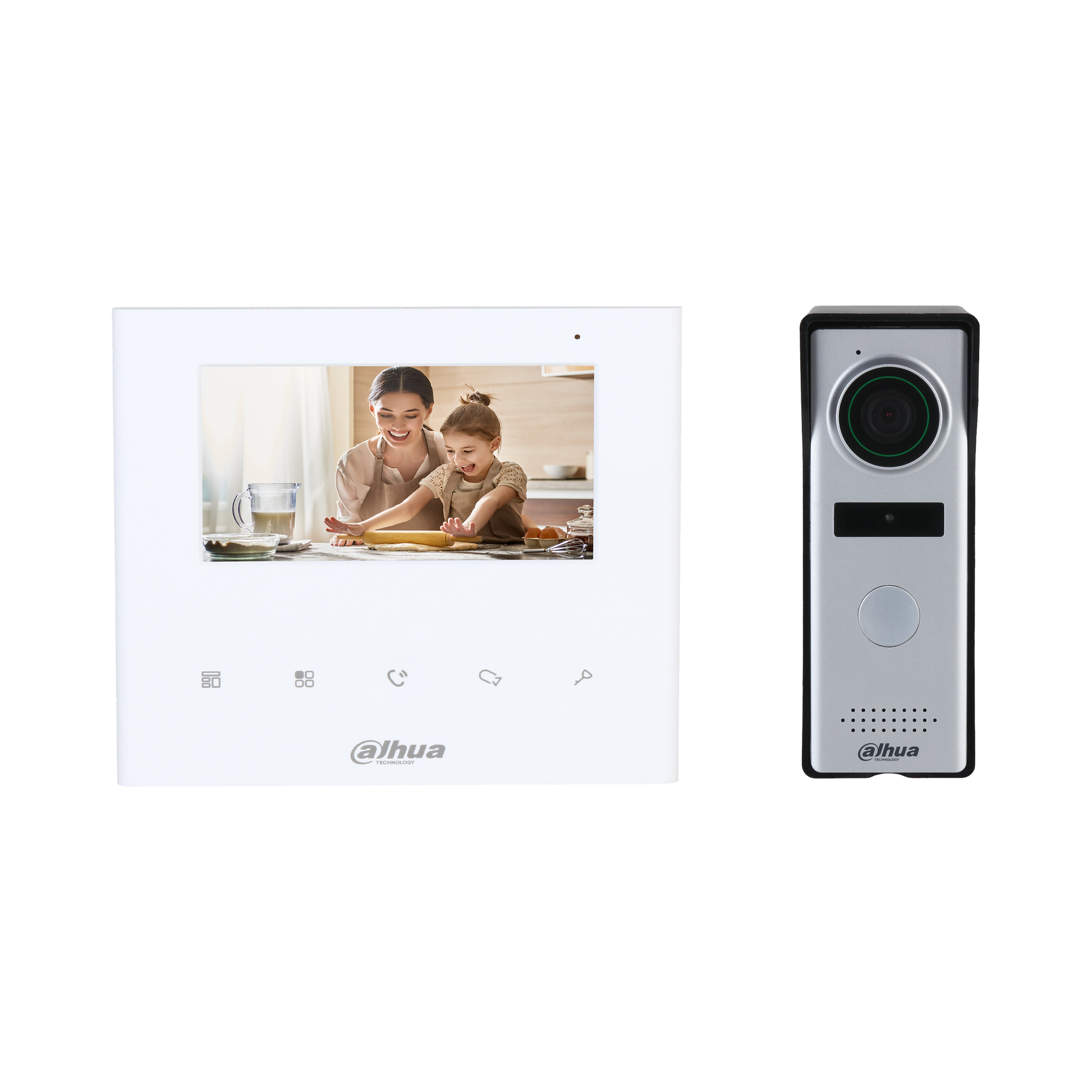

KTA04

Video Intercom KIT

> Video intercom function: Unlock, voice call, video call, volume
> Multiple bell sounds
> Support digital wide dynamic range (DWDR)



Product Data

DHI-VTH1010J

System

Button Type

Touch button

Basic

Display

4.3" TFT

Screen Resolution

480 (H) × 272 (V)

Function

Communication Mode

Analog

Performance

Casing

ABS

General

Color

White

Power Supply

12 VDC 1 A

Power Adapter

Included

Installation

Surface mount

Certifications

CE/FCC

Accessory

Bracket (included)

Dimensions

136.00 mm × 140.00 mm × 18.30 mm (5.35" × 5.51" × 0.72")

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–95% (RH)

Power Consumption

≤ 2 W (standby)
≤ 5 W (working)

Net Weight

0.16 kg (0.35 lb)

Gross Weight

0.42 kg (0.96 lb)

DHI-VTO1000J

System

Button Type

Mechanical

Basic

Camera

1.3 MP CMOS

Field of View

Horizontal: 70°
Vertical: 40°

WDR

DWDR

Illuminator Type

Auto IR

Day/Night

ICR auto switch

Audio Input

1 channel to the microphone; pickup distance 0.5 m

Audio Output

1 channel to the speaker

Status Indicator

1 indicator light
Green: Power on

Function

Communication Method

Analog

Unlock Mode

Remote unlock

Performance

Casing

PC + ABS

Port

Exit Button

1

Door Status Detection

1

General

Color

Silver

Power Supply

Powered by indoor monitor

Installation

Surface mount

Certifications

CE/FCC

Accessory

Rain cover (included)

Dimensions

131.45 mm × 46.00 mm × 33.80 mm (5.18" × 1.81" × 1.33")

Protection Grade

IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

10%–95% (RH)

Power Consumption

≤ 1 W (standby)
≤ 3 W (working)

Net Weight

0.18 kg (0.40 lb)

Gross Weight

0.38 kg (0.84 lb)
