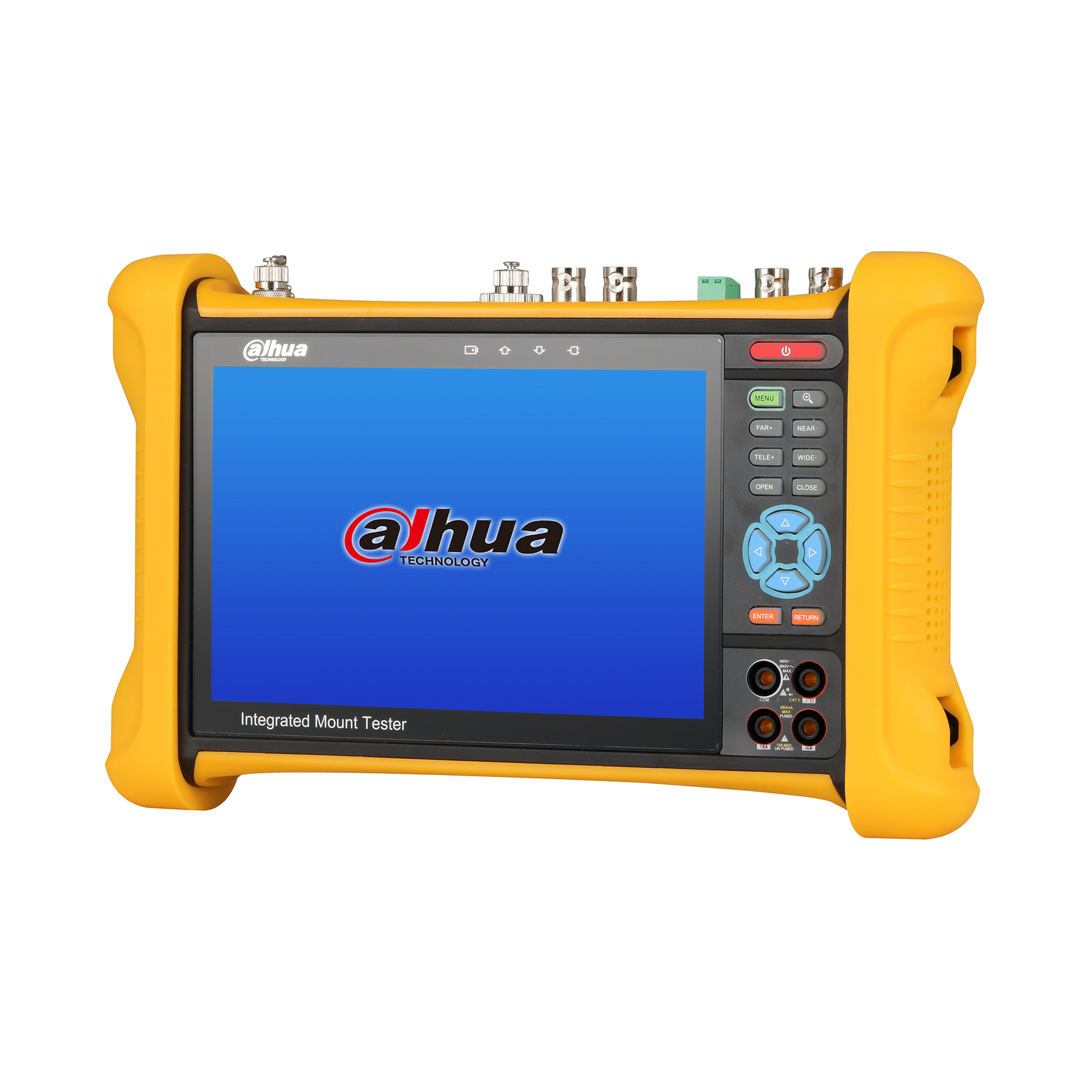

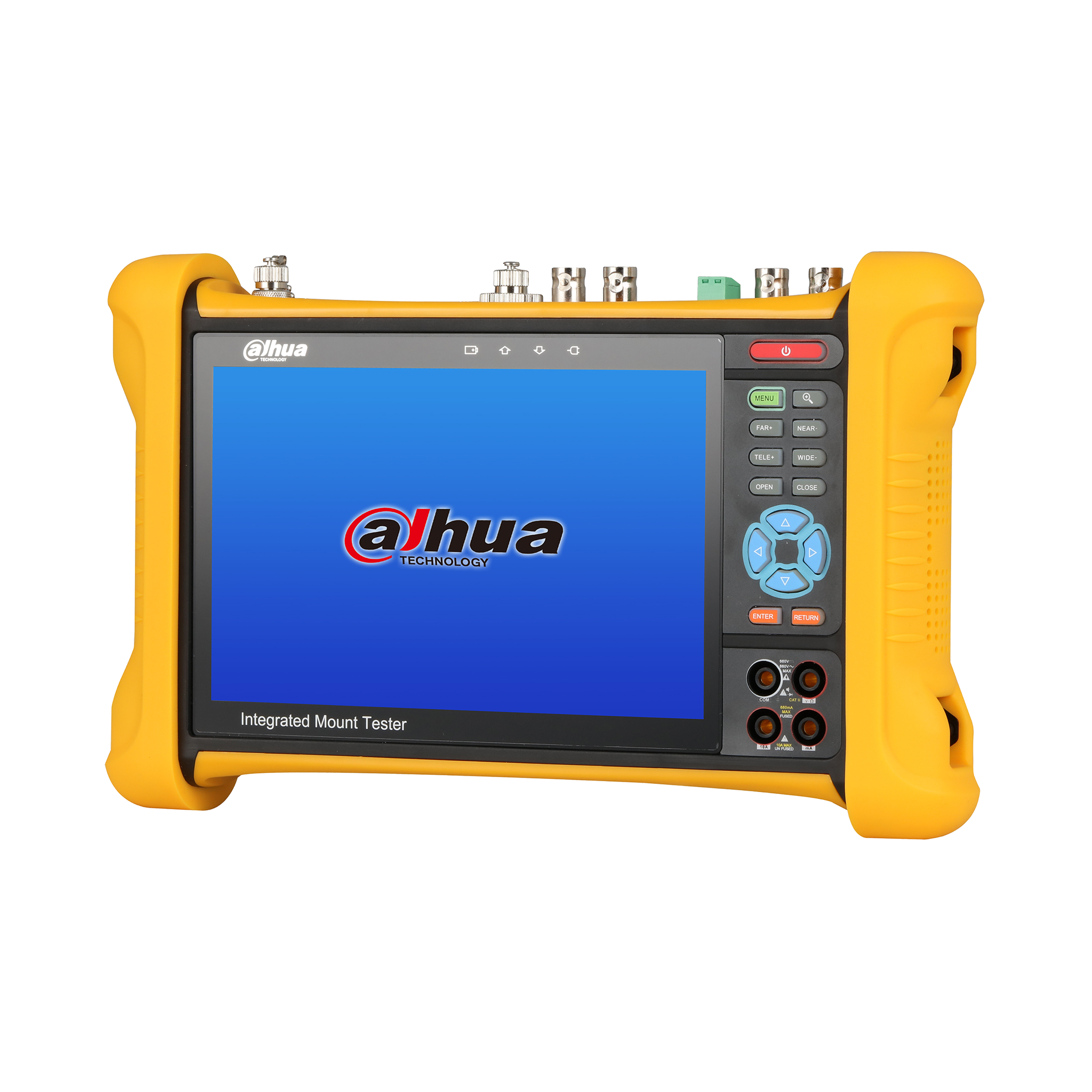

DAHUA PFM906 Integrated Mount Tester

In stock
SKU: PFM906
Regular price $1,000,000.00

Estimated delivery date: 2024-05-19

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



PFM906

> 7” IPS HD retina capacitive touch screen(1920*1200);

> Support IP, HDCVI/AHD/TVI/CVBS, SDI;

> Support HDMI Input/Output;

> Support PoE, DC12V 2A and USB5V 2A power out;

> Build-in 37Wh big capacity polymer lithium ion battery , which can last 10 hours for normal use;

> Support TDR(network cable/coaxial cable), UTP cable tester and hunting, optical cable VFL;

> Support digital multi-meter function;

> Support optical power meter test function.



Product Data

Model
DH-PFM906
Physical Port
Network port
3* 10/100M RJ45(LAN/PSE, PD, UTP/Scan)
BNC port
2* video in(SDI, HDCVI/TVI/AHD/CVBS), 1* video out
Function port
1* TDR, 1* OPM, 1* VLS, 1* RS485, 1* DC12V in(charge), 1* HDMI in, 1* HDMI out, 1* audio in, 1* audio out, 1* Micro SD
IPC Test
IP camera type
ONVIF (with PTZ control)
DAHUA test tool
Design for Dahua Camera image test, modify IP, user name and password parameters etc.
IP Camera test
Support rapid ONVIF, auto-scan the whole network segment IP, auto log in to display the camera image, auto-modify the tester‘s IP to the same network segment with the scanned camera's IP; Display image from the 4K camera by main stream; Full screen preview and 5x digital zoom, snapshot, record video, photo view and video play back
Analog Video Test
Format
HDCVI/ AHD/ TVI/ CVBS
HDCVI camera test
1-ch BNC in, highest-resolution:
support 1280x720P 25fps, 30fps, 50fps, 60fps/ 1920x1080P 25fps, 30fps/ 2560x1440P 25fps, 30fps
TVI camera test
1-ch BNC in, highest-resolution:
support 1280x720P 25fps, 30fps, 50fps, 60fps/ 1920x1080P 25fps, 30fps, 50fps, 60fps/ 2048x1536 18fps
AHD camera test
1-ch BNC in, highest-resolution:
Support 1280x720P 25fps, 30fps/ 1920x1080P 25fps, 30fps/ 2560x1440P 15fps, 25 fps, 30 fps
CVBS camera test
1-ch BNC in, 1-ch BNC out, support PAL/NTSC format(auto adapt)
Camera test
Real time video, coaxial PTZ control, RS485 control, audio test, full screen preview and 5x digital zoom, snapshot, record video, photo view and video play back
SDI Test
SDI video test
1-ch BNC in, support resolution60fps 720p, 60fps 1080p, 60fps 1080i
IPC tester’s HDMI output port can be used as SDI to HDMI converter, output HD SDI image to HD TV monitor.
HDMI Display
HDMI in/out
HDMI in, support 720x480p, 720x576p, 1280x720p, 1920x1080p, 1024x768p, 1280x1024p, 1280x900p, 1440x900p
HDMI out, support 1920x1080p
PTZ Control
Protocol
Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc.
Baud rate
600~115200bps
Cable Tester
Network cable
TDR, cable search, UTP cable tester
Coaxial cable
TDR, analog video generator
Optical cable
VFL(visual fault locator)
Tools
Network tool
IP address scan, Ping test, bandwidth test, port flashing, DHCP server, etc.
DMM (digital multi-meter)
AC/DC Voltage, AC/DC current, Resistance, Capacitance, Data hold, Relative measurement, Continuity testing. Testing speed: 3 times/ seconds, Data range -6600~+6600.
OPM(optical power meter)
Calibrated Wavelength(nm) :850/1300/1310/1490/1550/1625nm
Power range(dBm) :-70~+10dBm
Data monitor
Captures and analyzes the command data from controlling device via RS485, also can send hexadecimal
Flashlight
Press the LED On/Off button to use the LED flashlight
PoE&Power info
Measures PoE switch voltage and displays pin configuration
Audio recorder
Save audio message and support to review
Notepad
Used to record the important testing results
Calculator
With calculating function
System Information
Screen
7 inch capacitive touch screen with retina display, 1920x1200 resolution
Wi-Fi
Built in 2.4G Wi-Fi module, max. speed 150M, allows it to receive a wireless network and view IP cameras
LED flashlight
1*35lm LED light
Storage capacity
Build-in 8G, also support external max. 32GB SD card
Operation setup
Supporting a variety of languages, such as English, Chinese, Korean, Russian, Italian, Polish, Spanish, French, Japanese, etc.
Auto power off
1~30 minutes
Theme
Self-define icons, desktop and application interface background, modify interface sliding effect
Upgrade
Support local update via the SD card and online update on the internet
Power
Charger
DC 12V 2A
Battery
7.4V lithium polymer battery, 5000mAh, 37Wh
Rechargeable
After charging 5~6 hours, normal working time 10 hours
PoE power out
DC48V PoE+ power out, max
DC12V power out
Max. DC12V 2A out
USB5V power out
Max. DC5V 2A out
Other
Working temperature
-10℃~+55℃(+14℉~+131℉)
Working humidity
30%~90%
Casing
Plastics
Dimensions
270mmx160mmx46mm(10.63”x6.3”x1.81”)
Net weight
0.95kg(2.09lb)
Packaging dimensions
313mmx286mmx96mm(12.32”x11.26”x3.78“)
Gross weight
2.1Kg(4.63lb)
Certifications
Certifications
CE/FCC
