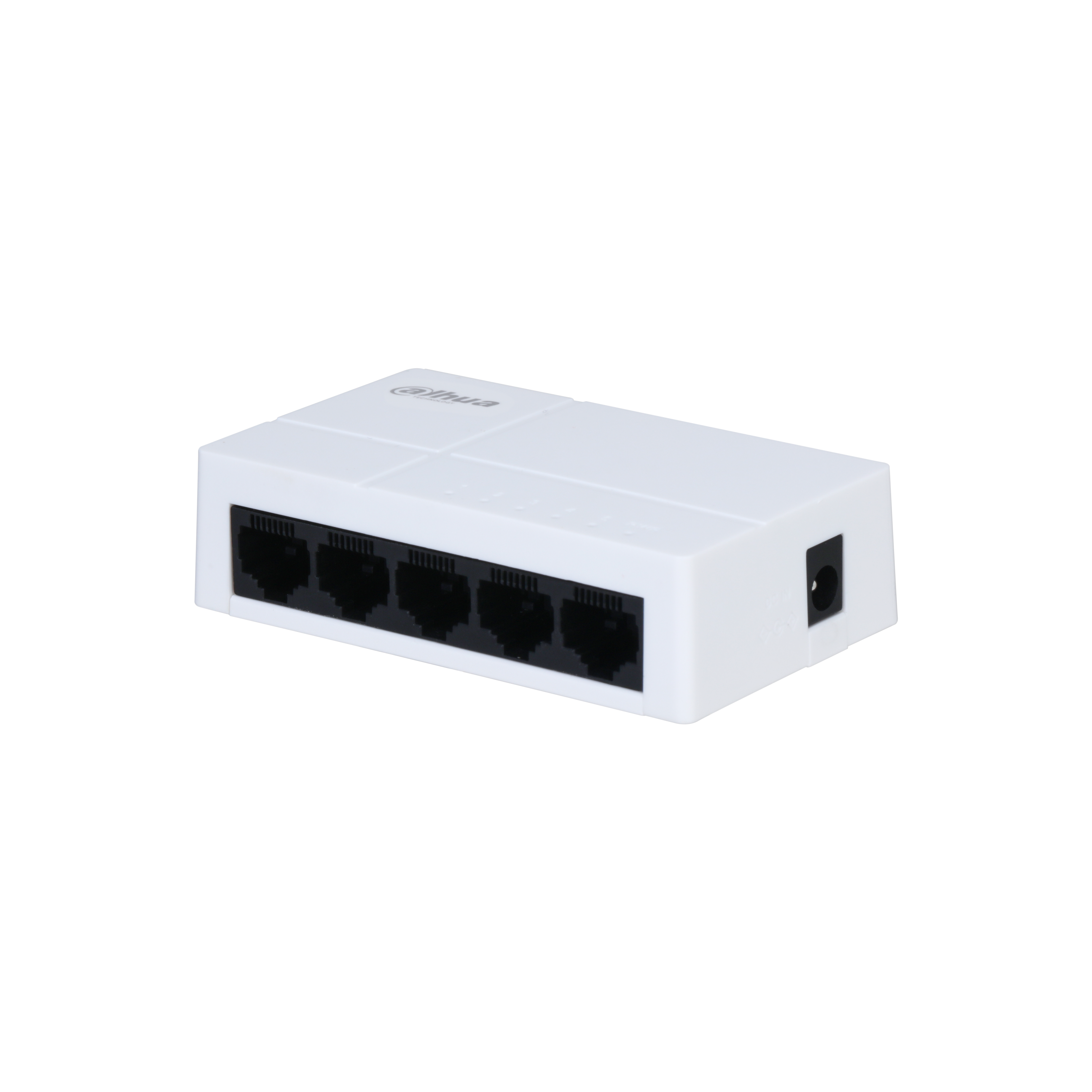

DAHUA PFS3005-5GT-L 5-Port Unmanaged Gigabit Switch

In stock
SKU: PFS3005-5GT-L-
Regular price $1,000,000.00

Estimated delivery date: 2024-04-02

无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



PFS3005-5GT-L

> Supports five 10/100/1000 Mbps adaptive ports.

> Small and light, it is easy to carry and has multiple chips embedded in it.

> Easy to operate.





Product Data

Hardware

Included Power Adapter

Yes

Ethernet Port

5

Ethernet Port Speed

10/100/1000 Mbps

Description of Function Slots

Port 1-5: 5 × 10/100/1000 Base-T

Power Supply

5 VDC; 1 A

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Power Consumption

Idling: 0.5 W;
Full load: 1.5 W

Performance

MTBF

363.24 years

Switching Capacity

10 Gbit

Packet Forwarding Rate

7.44 Mpps

Packet Buffer Size

1 Mbit

MAC Table Size

2K

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 4 kV

Lighting Protection

Common mode: 2 kV

Net Weight

0.12 kg (0.26 lb)

Gross Weight

0.23 kg (0.51 lb)

Product Dimensions

86.4 mm × 52.0 mm × 23.0 mm
(3.40" × 2.05" × 0.91")

Packaging Dimensions

94.0 mm × 111.0 mm × 67.0 mm
(3.70" × 4.37" × 2.6")

Casing Material

Plastic

Installation

Desktop mount

Certifications

CE; FCC
