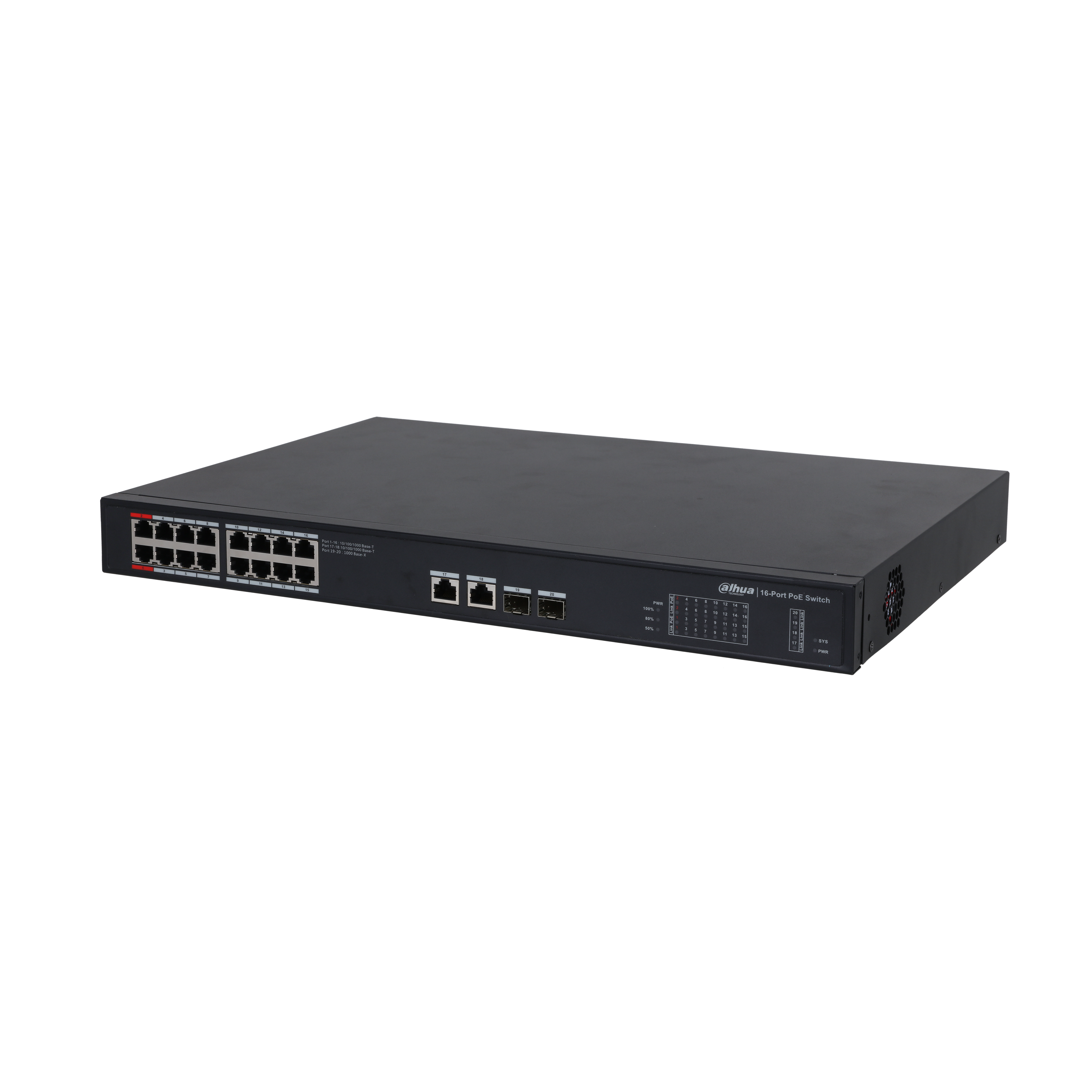

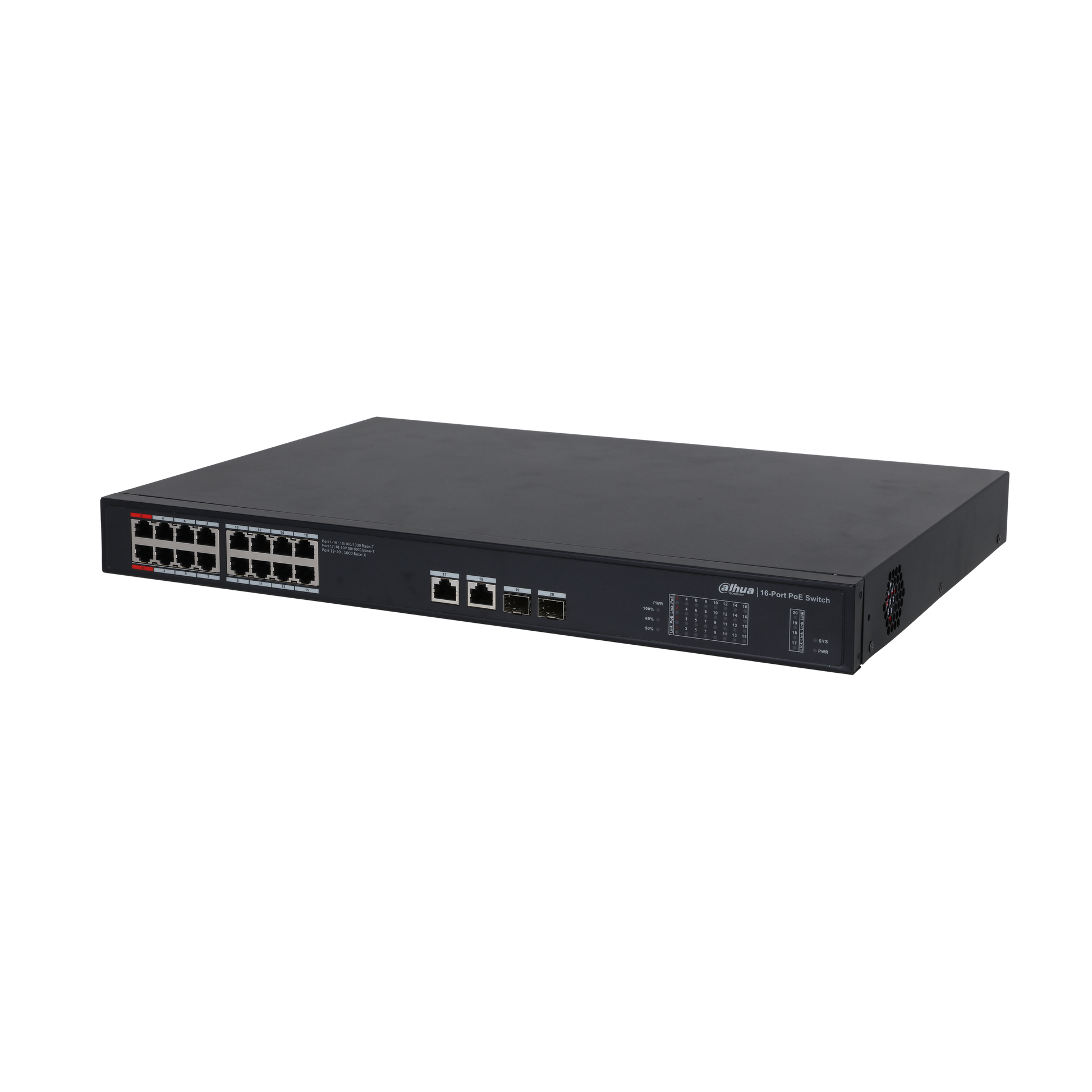

DAHUA PFS3220-16GT-240

In stock
SKU: PFS3220-16GT-240
Regular price $1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



PFS3220-16GT-240

 > Intelligent PoE
> Red Port Supports BT 90W
> All-giga Ports
> Smooth Transmission
> Wide Working Temperature: –10 to 55°C (14°F to 131°F)
> Plug and Play





Product Data

Certification

Layer

Layer 2

Managed

No

Switching Capacity

52 Gbps

Packet Forwarding Rate

29.76 Mpps

Packet Buffer Memory

4 Mbit

MAC Table Size

8K

Standards Compliance

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

Hardware Feature

Standard Power Supply

Yes

PoE

Yes

Ethernet Port

16

Optical Port

2

Ethernet Port Rate

1 Gbps

Optical Port Rate

1 Gbps

Number of Bussiness Card Slots

Port 1–16: 16 × RJ45 10/100/1000 M (PoE)
Port 17–18: 2 × RJ45 10/100/1000 M (uplink)
Port 19–20: 2 × SFP 1000 M (uplink)

Power Supply

100V AC–240V AC

Operating Temperature

–10°C to 55°C (14°F to 131°F)

Operating Humidity

10%–90%

Storage Humidity

5%–95%

Power Consumption

Idling: 7W
Full load: 240W

PoE

PoE Standard

IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt

PoE Budget

Port 1–2≤90W, Port 3–16≤30W, total≤240W

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

General

ESD

Air discharge: 8kV
Contact discharge: 6kV

Thunderproof

Common mode: 4kV
Differential mode: 2kV

Dimensions

440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73")

Packaging Dimensions

527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33")
