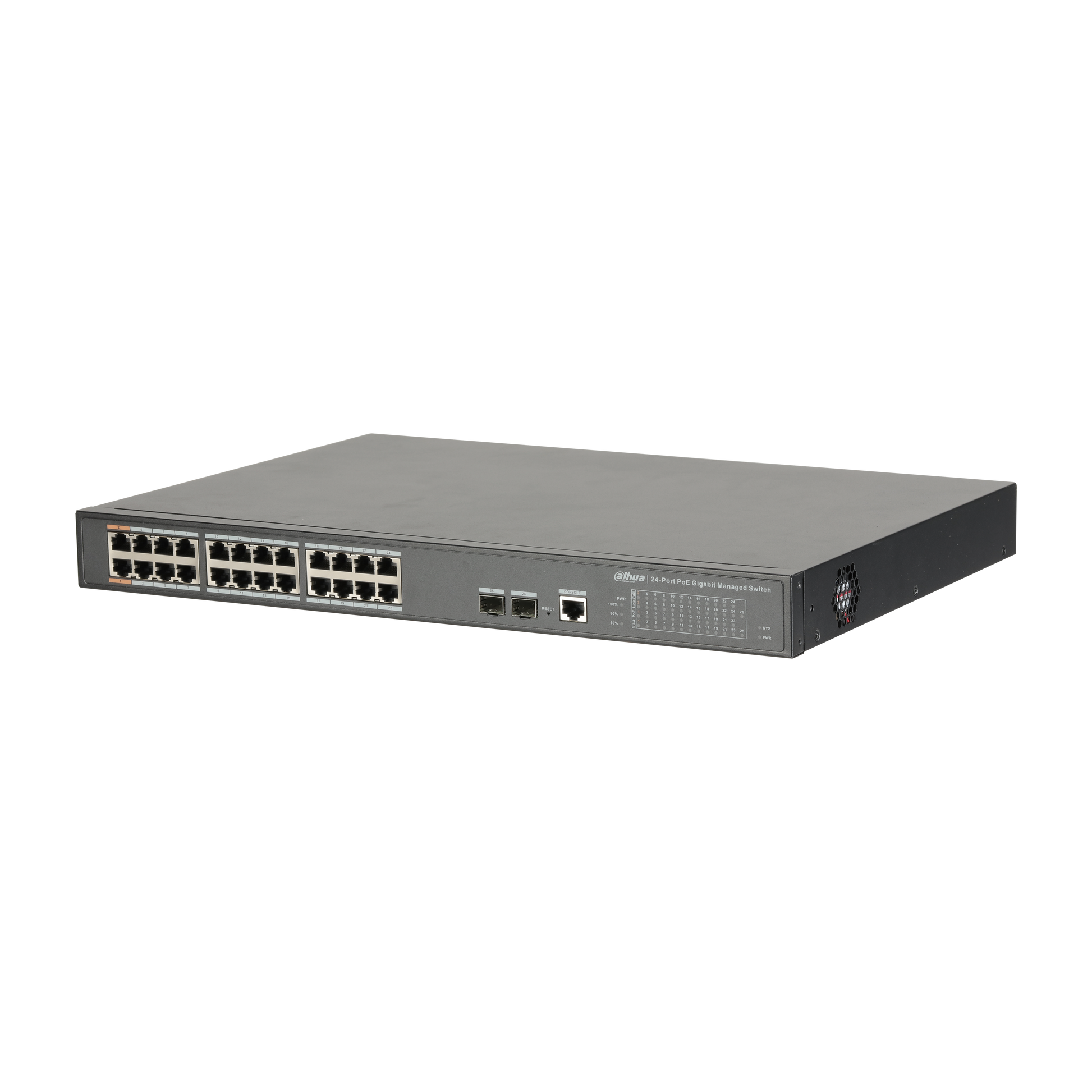

DAHUA PFS4226-24GT-360 24-Port PoE Gigabit Managed Switch
DAHUA PFS4226-24GT-360 24-Port PoE Gigabit Managed Switch
DAHUA

DAHUA PFS4226-24GT-360 24-Port PoE Gigabit Managed Switch

In stock
SKU: PFS4226-24GT-360
$1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



PFS4226-24GT-360

24-Port PoE Gigabit Managed Switch

> Layer 2 network management PoE switch
> Support IEEE802.3af, IEEE802.3at standard
> Support Hi-PoE 60W
> Network Redundancy: STP/RSTP/MSTP
> Support IPv4/IPv6, and DHCP
> Network management based on SNMP
> Configuration: Web, Telnet, CLI Command
> QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
> Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
> Large data cache(4M), real-time transmission
> MAC auto study and aging, MAC address list capacity is 8K
> EMC high protection design



Product Data

Technical Specification

Model

DH-PFS4226-24GT-360

Ethernet Port

24*10/100/1000 Base-T (PoE power supply)

2*100/1000 Base-X

RS232 Serial Console

1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1

PoE Power Consumption

Port1 and port 2 support Hi-PoE 60W

Each power ≤30W, Total≤360W

PoE Protocol

IEEE802.3af, IEEE802.3at, Hi-PoE

Switching Capacity

52Gbps

Packet Forwarding Rate

38.688Mpps

Packet Buffer Memory

4Mb

Application Humidity

5%~95%

Power

AC100-240V, 50/60Hz

Lightning Protection

Common Mode 2KV

Differential Mode 1KV

Working Temperature

-10°C~55°C

Dimension(W×D×H)

440mm x300mm x44mm

Accessories

Model

PFT3950

1.25G 850nm,500m,LC, Multi-mode

PFT3960

1.25G 1310/1550nm,20km,LC, Single-mode

PFT3970

1.25G 1550/1310nm,20km,LC, Single-mode

Service Characteristics

System

Username / password: admin/admin

IP Address :192.168.1.110/24

PoE Budget

Total≤360W

MAC Table

8K

NTP

Support

DHCP

Support DHCP client/server

Support DHCP snooping

VLAN

802.1Q Standard VLAN

Port Aggregation

Manual aggregation/LACP

Mirroring

Many-to-one port mirroring

Flow Control

Half-duplex based on back pressure type control;

Full duplex based on PAUSE frame

Multicast

IGMP Snooping v1/v2/v3

Security Features

Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection

Spanning tree

Support STP/RSTP/MSTP

LLDP

Support

MAC Table

Support MAC address table configuration

QoS

Support QoS base on CoS/DPL/PCP/DEI

Each port support 8 output queue

Support port shaping

Support port tag remarking

Support QoS base on DSCP

System Maintenance

Support the configuration file upload/download

Support the updated packet upload

System log

Network Management

WEB(http protocol), serial, SNMP
