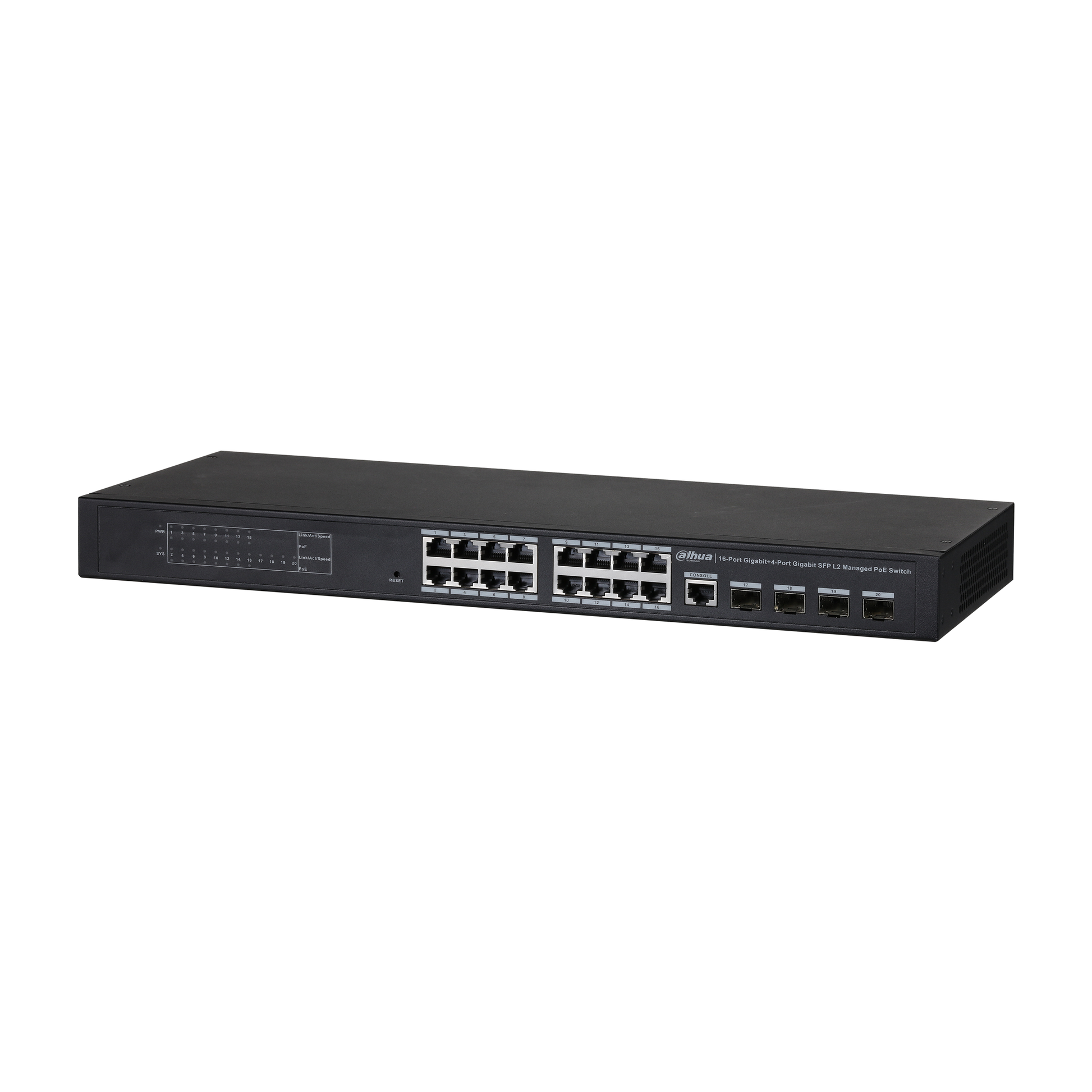

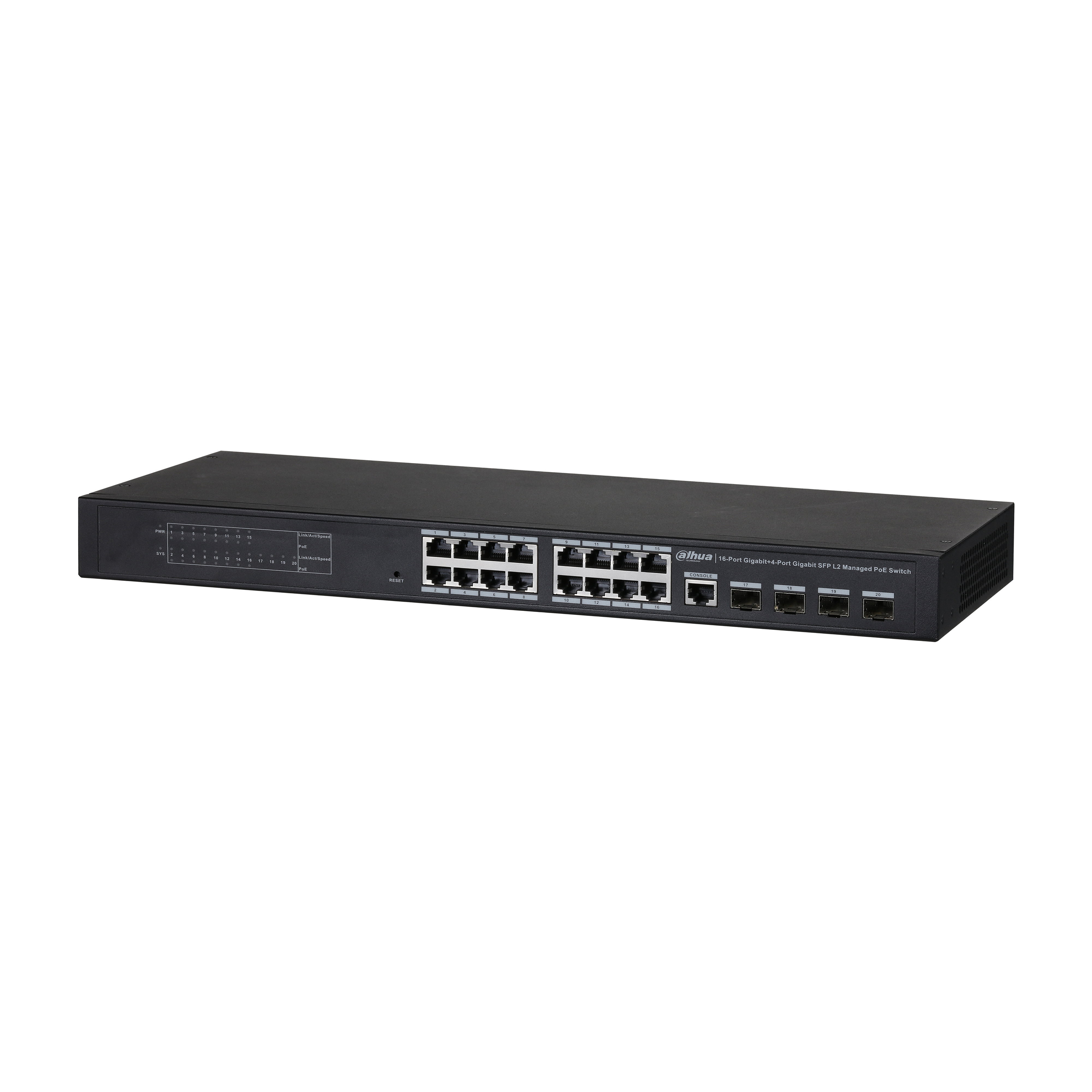

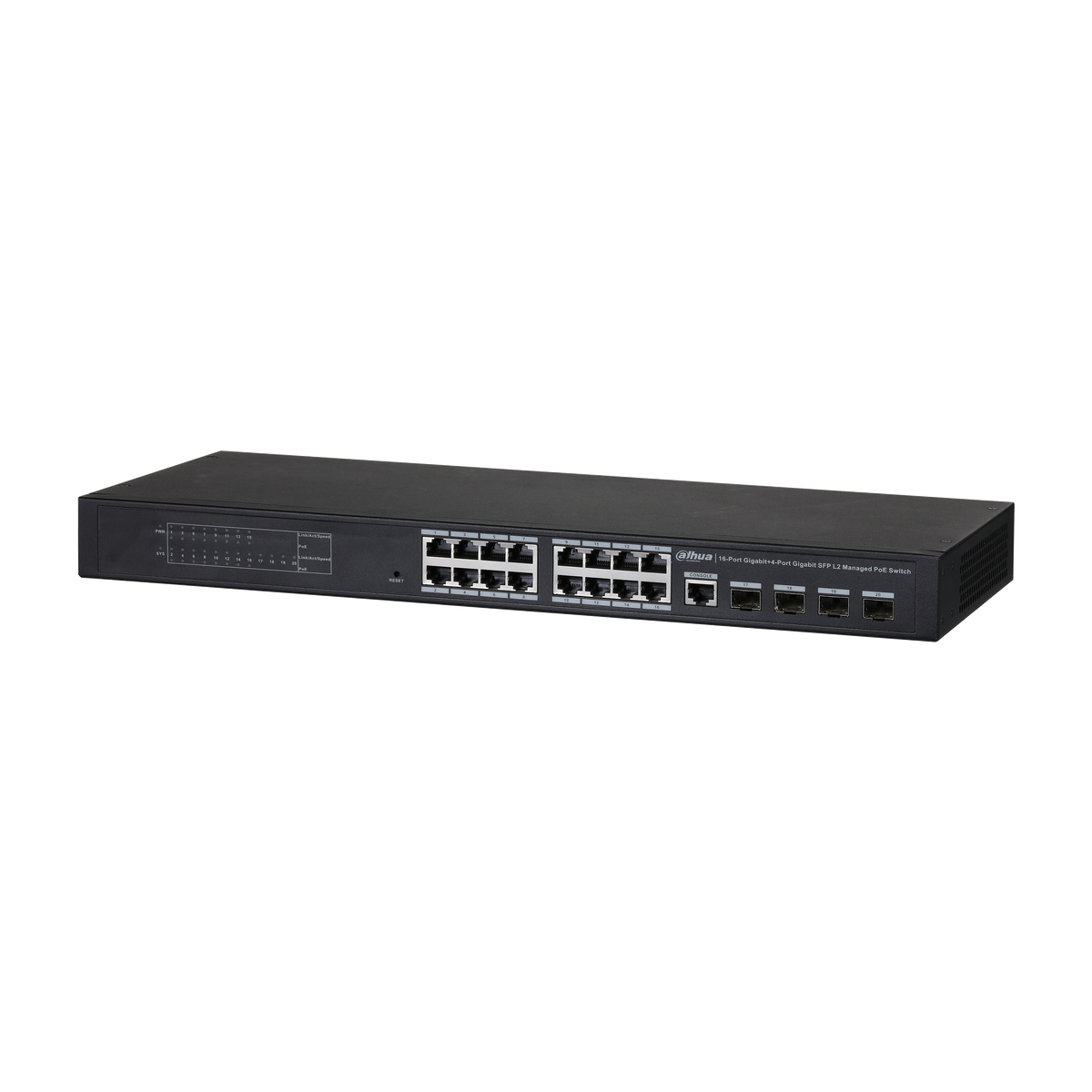

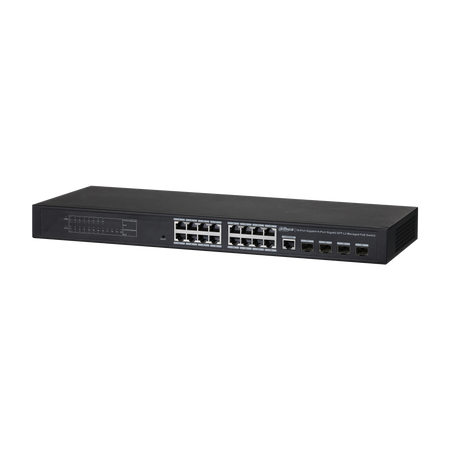

DAHUA PFS4420-16GT-240 16-Port PoE Gigabit Managed Switch

In stock
SKU: PFS4420-16GT-240
Regular price $1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement:For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
  • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



PFS4420-16GT-240

16-Port PoE Gigabit Managed Switch

> Layer 2 network management PoE switch
> Support IEEE802.3af, IEEE802.3at standard
> Network Redundancy: STP/RSTP/MSTP
> Support IPv4/IPv6, and DHCP
> Network management based on SNMP
> Configuration: Web, Telnet, CLI Command
> QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
> Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
> Large data cache(4M), real-time transmission
> MAC auto study and aging, MAC address list capacity is 8K



Product Data

Technical Specification

Model

DH-PFS4420-16GT-240

Ethernet Port

16*10/100/1000 Base-T (PoE power supply)

4*1000 Base-X

PoE Power Consumption

Port1-16 ≤30W, Total≤240W

PoE Protocol

IEEE802.3af, IEEE802.3at

Switching Capacity

40Gbps

Packet Forwarding Rate

29.76Mpps

Packet Buffer Memory

4.1Mb

Application Humidity

10%~90%

Power

AC100-240V, 50/60Hz

Lightning Protection

Common Mode 2KV

Working Temperature

0°C~45°C

Weight

2.69kg

Dimension(W×D×H)

440mm x330mm x44mm

Accessories

Model

PFT3950

1.25G 850nm,500m,LC, Multi-mode

PFT3960

1.25G 1310/1550nm,20km,LC, Single-mode

PFT3970

1.25G 1550/1310nm,20km,LC, Single-mode

Service Characteristics

System

Username / password: admin/admin123

IP Address :192.168.1.110/24

PoE Budget

Total≤240W

MAC Table

8K

SNTP

Support

DHCP

Support DHCP client/Relay

Support DHCP snooping

VLAN

802.1Q Standard VLAN

Port Aggregation

Manual aggregation/LACP

Mirroring

Many-to-one port mirroring

Flow Control

Half-duplex based on back pressure type control;

Full duplex based on PAUSE frame

Multicast

IGMP Snooping v2/v3

Security Features

Broadcast / Uncast / Multicast Storm Control, IEEE 802.1x, DHCP Snooping(IP, MAC, Port)

Spanning tree

Support STP/RSTP/MSTP

LLDP

Support

MAC Table

Support MAC address table configuration

QoS

WRR (Weighted Round Robin)

Port based QoS

IEEE 802.1p Class of Service

DSCP-based QoS

QoS basic mode

QoS advanced mode (Policy based)

System Maintenance

Support the configuration file upload/download

Support the updated packet upload

System log

Network Management

WEB, Telnet, SSH, SNMP
