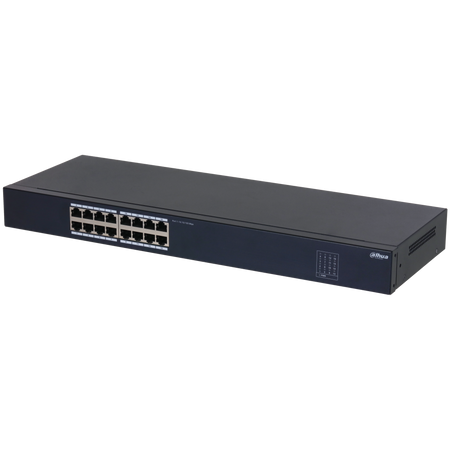

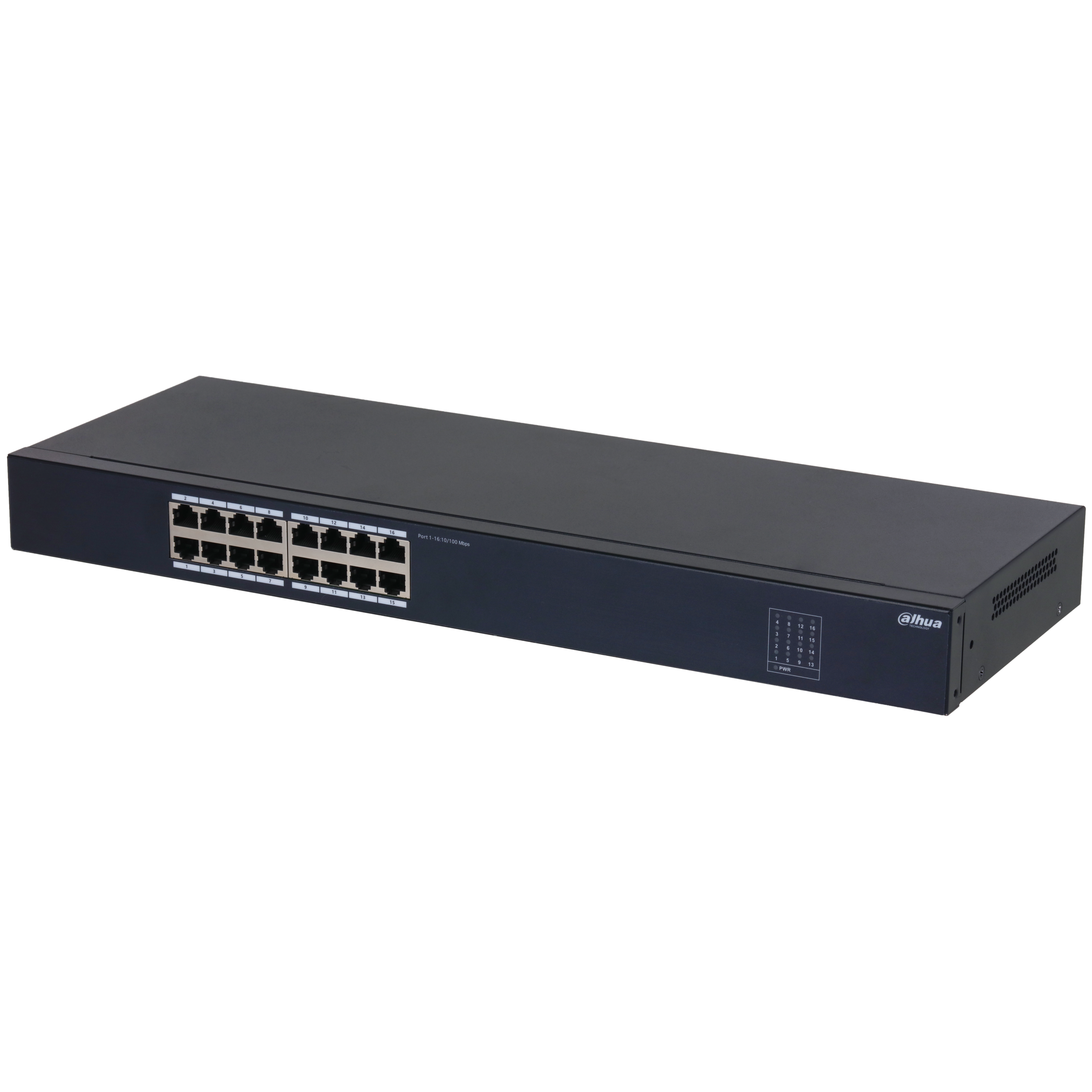

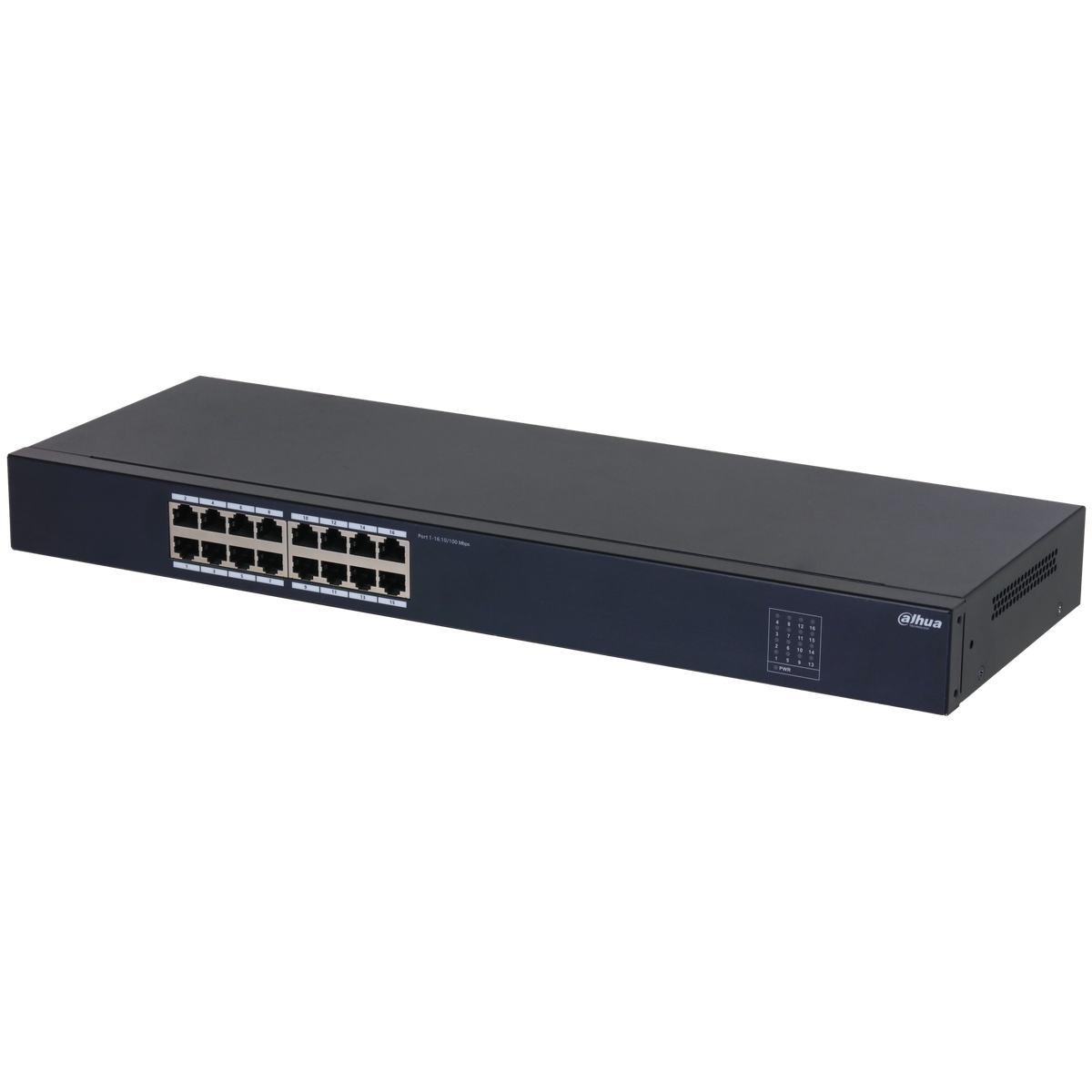

DAHUA SF1016 16-Port Unmanaged Ethernet Switch
DAHUA SF1016 16-Port Unmanaged Ethernet Switch
CCTV-MALL

DAHUA SF1016 16-Port Unmanaged Ethernet Switch

In stock
SKU: SF1016
$1,000,000.00
Our standard leading time is estimated to be 30 working days, even if it is shown as in stock, please confirm this lead time before purchasing.
无标题文档 Get More Information
Do you have any question about the Products?Contact us now via sales@cctv-mall.com.
Ask Our Experts
Text Chat | Email |04407548784511

    Order and Pricing Information for Surveillance Products
    Please note the following important details when ordering surveillance products from CCTV-MALL:
  • Minimum order amount: Orders must exceed $1000 or equivalent.
  • The prices listed, such as $1000000 or $1,534,590.00, are placeholders and do not reflect the actual prices. These products on this page are typically specialized for project-specific requirements, and pricing depends on various factors such as the required quantity and any other project-specific requirements.
  • Final pricing: Prices mentioned are subject to the final Proforma Invoice (PI) prices provided after order confirmation.
  • Inventory Statement:Please note that the inventory status displayed for our products is not in real-time. We will inform you of the actual inventory status via email to ensure you have the most accurate information for your purchase decisions.
  • Minimum Order Amount Statement：For non-stock items, we have a minimum order value requirement of $3,000 USD. This threshold helps us to process your orders efficiently and provide you with the best possible service.
  • Shipping costs: Shipping costs will be calculated separately and added to the total order value.
  • Genuine products: We guarantee official original DAHUA products with the latest firmware versions.
  • Technical support: As authorized distributors, we provide official technical support.
  • Warranty coverage: For project-based orders, the manufacturer provides local warranty, while we offer warranty support for dealer orders.
    • If you have any questions or need further assistance, please feel free to contact us. We are committed to providing you with the best price and service for your DAHUA surveillance product needs.
Quality Certifications:



SF1016 new-products

16-Port Unmanaged Ethernet Switch

> 16-Port 10/100Mbps Ethernet Switch.
> Complies with IEEE802.3, IEEE802.3u and IEEE802.3X standards.
> Supports MAC learning and aging and MAC address list capacity is 8K.
> Wide operating temperature from -20¡ãC to +60¡ãC.
> Metal housing with great heat dissipation.
> Easy to install, and plug and play.


Hardware

Included Power Adapter

Yes

Ethernet Port

16

Ethernet Port Speed

10/100 Mbps

Description of Function Slots

Port 1-16: 16 × RJ-45 10/100 Mbps

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz, max 0.7 A

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

–40 °C to +75 °C (–40 °F to +167 °F)

Power Consumption

Idling: 0.5 W Full load: 1.6 W

Performance

Layer

Layer 2

Switching Capacity

3.2 Gbps

Packet Forwarding Rate

2.38 Mpps

Packet Buffer Size

2 Mbit

Jumbo Frame

2048 Byte

MAC Table Size

8K Byte

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3X

General

Statics Protection

Air discharge: 8 kV Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV Differential mode: 0.5 kV

Net Weight

1.57 kg (3.46 lb)

Gross Weight

2.49 kg (5.49 lb)

Product Dimensions

440 mm × 155 mm × 43.7 mm (17.32" × 6.10" × 1.72") (L × W × H)

Packaging Dimensions

523 mm × 273 mm × 109 mm (20.59" × 10.75" × 4.29") (L × W × H)

Casing Material

Iron

Installation

Desktop mount; rack mount

Certifications

CE
