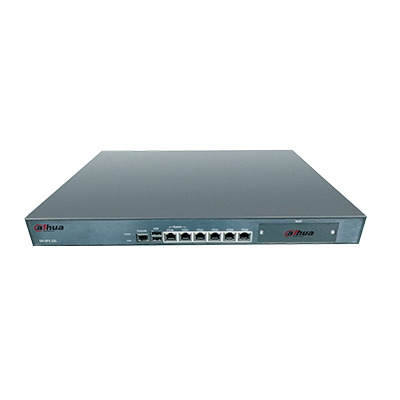

VPS100
Dahua Video Protection System (VPS) prevent video information leakage, manage the use of surveillance resources, improve network transmission security, and guarantee video data security for users.
>Video network security protection: VPS can control clients for Intranet access and identify Intranet users in multiple authentication modes.
>Multiple deployment schemes: VPS supports mixed, bypass, and DR (Direct Routing) deployment modes.>Multiple disaster recovery technologies: VPS can automatically detect the links. When the video protection gateway fails, VPS can automatically enable escape mode, and bypass the video protection gateway
>Encrypted video watermark: The software client of VPS uses an intel ligent watermarking system, which supports plain text and ciphertext watermark modes to meet the different requirements of users
>Ultra-high processing performance: VPS has high-speed data processing capabilities and accommodates large-scale user and application connections to ensure the efficiency of key business access.
>Unified process management: VPS makes use of an approval function for the video sending process, allowing for effective management of the copying and exporting of video data.
Product Data
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Height |
1U |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Number of Persons Managed |
10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Port |
1 × Console port + 2 × USB ports |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
6 × Gigabit Ethernet copper ports |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Expansion Slot |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
High Reliability |
Hot standby and redundant design of key components such as power supply and fan |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Supported Protocols |
All supported ,not limited by video protocols |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Deployment Mode |
Bypass and inline |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Device Management |
Local configuration through Console port |
